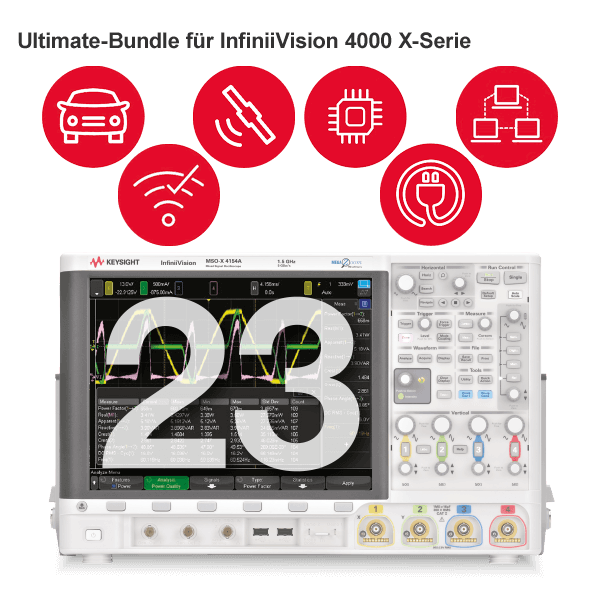

Keysight MSOX4154PWR | Power Best Bundle incl.oscilloscope MSOX4154A, Ultimate Bundle, diff. Probe & Current Clamp

Manufacturer number: MSOX4154PWR

MSOX4154PWR
MSOX4154PWR
MSOX4154PWR
MSOX4154PWR
MSOX4154PWR
MSOX4154PWR
MSOX4154PWR
MSOX4154PWR
MSOX4154PWR
MSOX4154PWR
MSOX4154PWR
MSOX4154PWR
MSOX4154PWR
MSOX4154PWR
MSOX4154PWR
MSOX4154PWR
Delivery time upon request

On Request

or choose one of the following options:
Request a quote Product is already in cart
Product downloads Product inquiries Request education-price
Highlights Documents / Downloads Description Related Articles

Keysight Power Bundle "Best" MSOX4154PWR | InfiniiVision oscilloscope, 4 + 16-channel, 1.5 GHz incl. 2-channel work function generator, 20 MHz, Ultimate software package, active differential HV probe, 100 MHz, current clamp, 150 MHz & calibration adapter.

Documents & Downloads

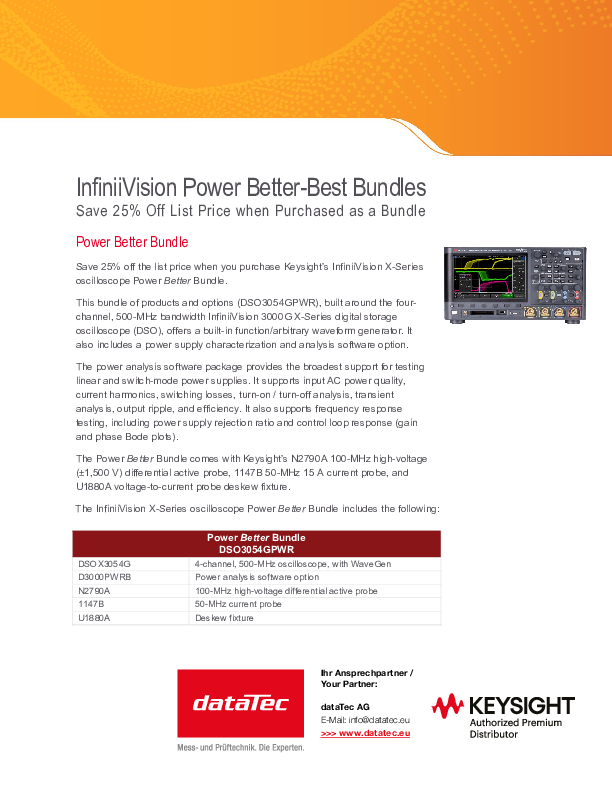

Datasheet
pdf | 0.31 MB

Description

MSOX4154PWR | Power Best Bundle incl.oscilloscope MSOX4154A, Ultimate Bundle, diff. Probe & Current Clamp

With this preconfigured Keysight "Best Bundle" you can secure components that are optimally tailored to your measurement requirements and a price advantage of 25% compared to the list price .

The »Power Best Bundle« (MSOX4154AUT) consists of the 4 + 16 channel mixed-signal oscilloscope MSOX4154A of the InfiniiVision 4000 X-Series with 1.5 GHz, an integrated 2-channel function / arbitrary signal generator, the ultimate software bundle option , the HV differential probe N2790A , the current clamp N7026A and the calibration adapter U1880A .

Like the Power Better Bundle, the Power Best Bundle enables testing of linear and switched-mode power supplies (SMPS), including AC input power quality, current harmonics, switching losses, on / off analysis, transient analysis, output ripple, efficiency and testing of frequency response, including power supply Rejection Ratio (PSRR) and control loop behavior (Gain & Phase Bode Plots).

In addition, the Ultimate Bundle software option also includes a wide range of trigger and decode functions for serial protocols including I2C, SPI, UART / RS232 / 484, I2S, USB 2.0, USB PD, user definable NRZ, CAN, CAN FD, LIN, SENT, CXPI and NFC.

The best bundle also includes the 100 MHz high-voltage differential probe head N2790A (± 1,500 V), the high-sensitive current clamp N7026A with 150 MHz, 30A and the calibration adapter / deskew fixture U1880A.
