Keysight E36312A | DC power supply, 3-channel, 80 W, isolated channels

Manufacturer number: E36312A

Keysight E36312A
Keysight E36312A
Keysight E36312A
Keysight E36312A
Keysight E36312A
Keysight E36312A
Keysight E36312A
Keysight E36312A

Delivery time upon request

€1,744.00

plus VAT. €2,075.36 VAT plus shipping costs

You would like to request an offer? Please add items to the shopping cart and request an offer there.
Request educational price
Highlights Technical Data Documents & Downloads Description Related Articles

Keysight E36312A | 3-channel DC laboratory power supply with 0 ... 6 V / 5 A and 2x 0 ... 25 V / 1 A with a total output of 80 W.

  • Output 1: 0 to 6 V DC / 0 to 5 A
  • Output 2: 0 to 25 V DC / 0 to 1 A.
  • Output 3: 0 to 25 V DC / 0 to 1 A.
  • Maximum output power: 80 W.
  • Outputs are electrically isolated from each other and from ground
  • Outputs on the front panel as well as on the rear of the device
  • Excellent accuracy for programming and output value measurement / display
  • Very low ripple and noise
  • Highly precise regulation of network and load fluctuations: 0.01%
  • Short settling time for faults: <50 µs
  • Minimum current measurement: 80 µA
  • Low acoustic noise level
  • Automatic parallel / serial connection
  • 2- or 4-wire remote sense for very precise control of the output voltages
  • Data logger function; for tracking / displaying a channel on the display, for all 3 channels data storage in data file
  • Output sequencing (switch channels on or off in a specific order)
  • Output LIST mode (program complex output voltage or output current curves)
  • Output coupling
  • External / internal triggering possible
  • Overvoltage, overcurrent and overtemperature protection
  • 11 cm (screen diagonal / color LCD display
  • Color-coded channel assignments and displays
  • Separate setting for current and voltage
  • Separate on / off switch for the output channels
  • Digital interface
  • USB host interface on the front panel for data storage
  • Interfaces: USB, LAN, optional: GPIB
  • Weight: 8.1 kg
  • Dimensions: H 145 x 216 x D 364 mm
  • 3 year guarantee

Independant Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Documents & Downloads

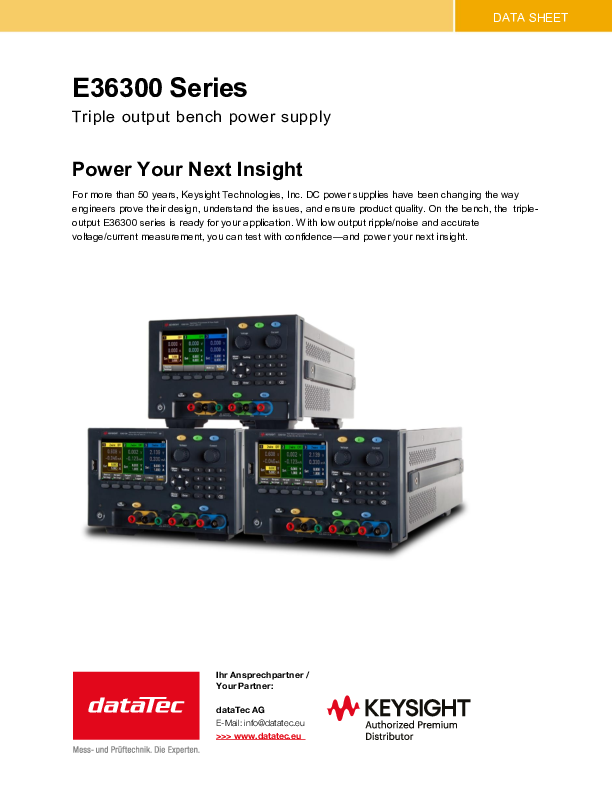

Datasheet
pdf | 0.78 MB

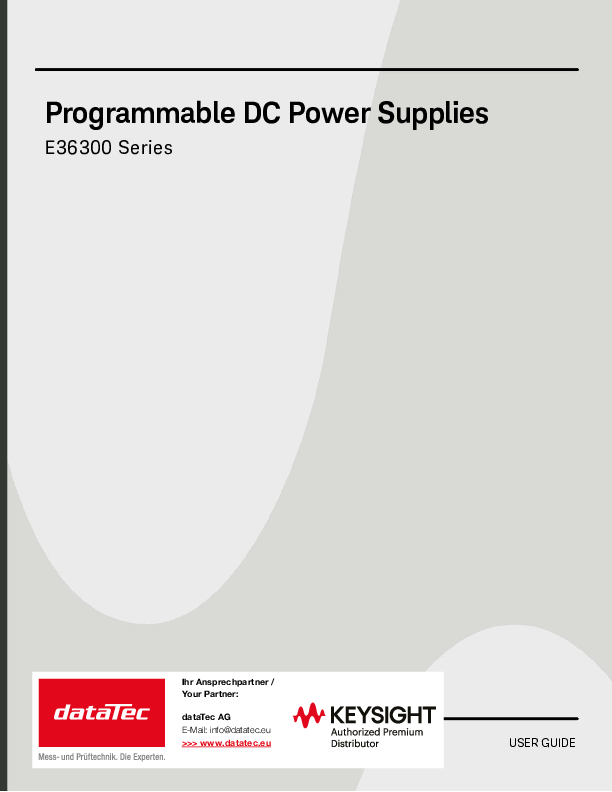

Userguide
pdf | 4.62 MB

Detaildescription

E36312A | DC power supply, 3-channel, 80 W, isolated channels

Characteristic of this 3-channel laboratory power supply is the very low ripple and the very low noise. The very precise voltage and current programming / setting and the precise measurement of the output variables offer excellent control over the supply of the circuit under test and provide information about the power consumption of the DUT (Device under Test). The very low noise specifications provide a highly accurate power supply for precision circuits and applications. This gives you security in the assessment of your circuit. In addition to the 0.01% load and supply voltage control at the power supply output, the power supply series E36300A delivers stable output values, even if the supply voltage and the load vary.

To ensure the safety of your circuit (DUT), the power supply series E36300A has integrated safety mechanisms such as overvoltage protection (OVP / Over Voltage Protection), overcurrent protection (OCP / Over Current Protection) and overtemperature protection (OTP / Over Temperature Protection).

Another safeguard is locking the device keyboard against adjusting the output variables by unintentionally touching the keyboard.

The power supply series E36300A is one of the quietest in this class. Depending on the load on the power supply, the fan is automatically regulated based on an integrated temperature control so that there are no disturbing acoustic noises. The typical noise level is 26 dBa when no load is connected and 50 dBa under full load.

Note:

When you purchase this new device, you will now receive a "Node-Locked" license for the Keysight measurement and analysis app BenchVue for power supplies BV0003B free of charge . This is limited to the specific device. The license is not limited in time.

On the Keysight website you will find further information on downloading, registering and activating your BenchVue license: To the Keysight website.

Compatibility with the previous model E363xA.

For programming code compatibility with the widespread predecessor model E363xA, the E3631A mode can be set on the E36300A devices so that the new device can be programmed like the E3631A and behaves as it is. It is very easy to replace devices or expand production facilities.

On / off switching sequences for output voltages.
Each channel of the E36312A can be switched on or off individually with different delays to each other. The time difference (delay) can be set from 0 to 3600 seconds in 1 ms steps. The sequence sequence can also be different.
Different orders as well as delays can be set for the switch-off process. The sequence then begins on command.

LIST mode
With the E36312A devices, very complex sequences of the output voltages can be programmed for the individual channels as well as for the switch-on / switch-off time. The timing of these values is very precise, and synchronization with external signals is also possible. The sequence list can be triggered by internal as well as external events to repeat the sequence. If the sequence list is saved in the device, it can be started with a single command. This reduces the programming effort and simplifies the program flow.
