Tektronix MP5103 | Mainframe for Modular Test System MP5000 Series, 1 U, 3 Slots, 600 W

Manufacturer number: MP5103

MP5103
MP5103
MP5103
MP5103
MP5103
MP5103
MP5103
MP5103
MP5103
MP5103
MP5103
MP5103
MP5103
MP5103
MP5103
Delivery time upon request

€4,610.00

plus VAT. €5,485.90 VAT plus shipping costs

or choose one of the following options:
Request a quote Product is already in cart
Product downloads Product inquiries Request education-price
Highlights Documents / Downloads Description Related Articles

Tektronix MP5103 | Mainframe for modular precision test system MP5000 series, 1 U, 3 slots, 600 W.

Documents & Downloads

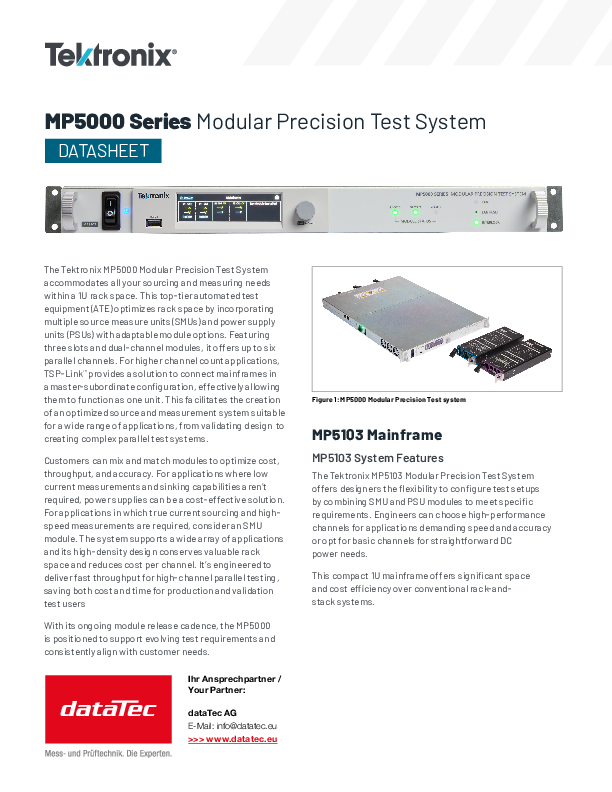

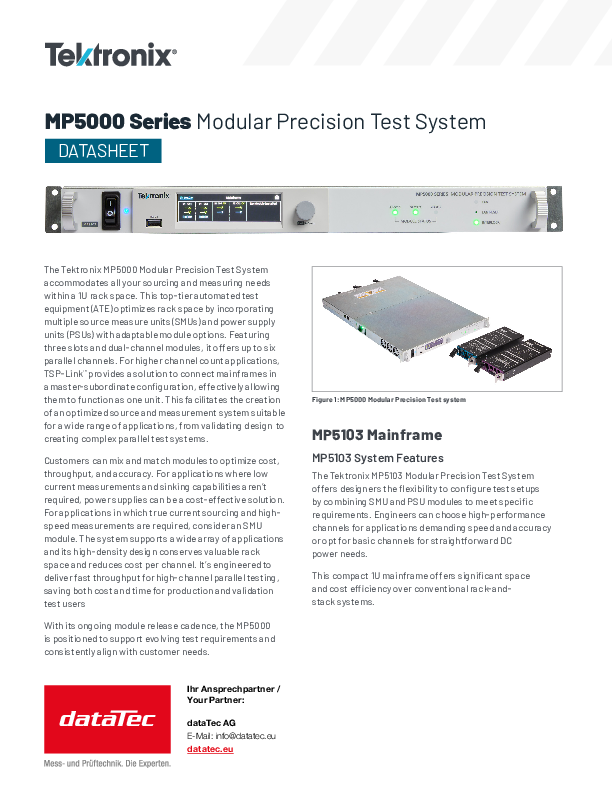

Datasheet
pdf | 2.89 MB

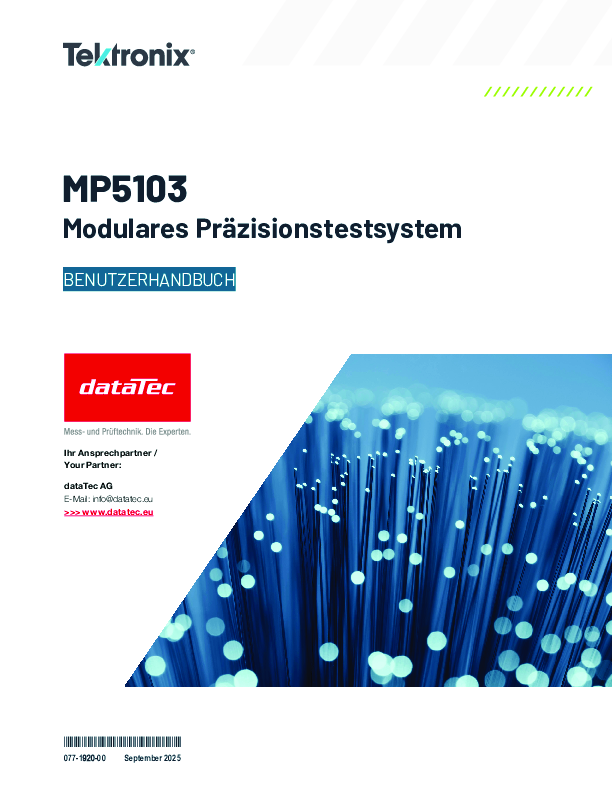

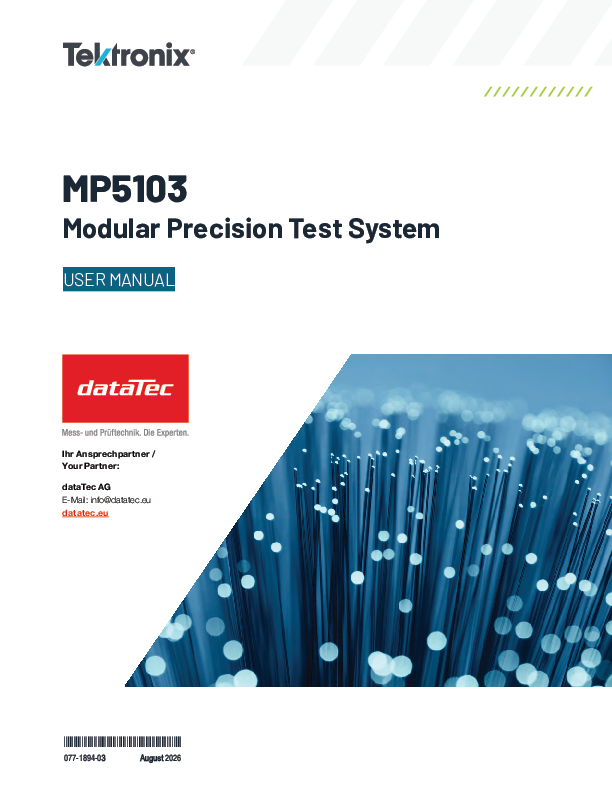

Userguide
pdf | 2.27 MB

Description

MP5103 | Mainframe for Modular Test System MP5000 Series, 1 U, 3 Slots, 600 W

The Tektronix MP5000 series has been specially developed for the highest demands in development, validation and production testing. Thanks to its modular design, it combines Source Measure Units (SMUs) and Power Supply Units (PSUs) in a compact 1U rack format. This saves users valuable space and costs in the laboratory or test rack.

Applications

The MP5000 series is suitable for a wide range of applications, including:

  • Circuit and semiconductor validation and debugging
  • High-channel parallel testing in automated test environments (ATE)
  • Precise characterization of components
  • Reliability testing with synchronized multimainframe setups

Mainframe MP5103

The MP5103 presented here is the centerpiece of the MP5000 series. This compact 1 U mainframe is highly flexible and can be equipped with up to three modules. By combining PSU and SMU modules, the MP5103 can be adapted precisely to the respective application. The modular design allows modules to be added or removed during operation, minimizing downtimes.

Advantages and strengths

  • Compact design (1U) saves valuable rack space
  • 3 slots
  • Up to 6 channels per mainframe
  • High flexibility thanks to free module selection (SMU/PSU)
  • Easy scaling via TSP link for synchronized multi-mainframesystems
  • Modern interfaces such as 1 Gbps Ethernet and USB-C for fast data transfer
  • Integrated touch operation for easy setup and troubleshooting

Available modules

  • MSMU60-2 (SMU module) - Precise source measure unit with 2 channels, up to 60 V/1.5 A, 4-quadrant operation, high-resolution measurement up to 100 fA. Ideal for precise I/V characterization.
  • MPSU50-2ST (PSU module) - Powerful power supply module with 2 channels, up to 50 V/5 A (expandable to 100 V/10 A with series connection). With OVP/OCP protection and remote sense for precise power supply.

Technical highlights

  • 1U mainframe with 3 module slots (up to 6 channels)
  • TSP link synchronization < 500 ns
  • 18 digital I/O pins for handshake signals
  • Hot-swap-capable modules without restart
  • SMU module: Up to 60 V / 1.5 A, 6½-digit measurement resolution
  • PSU module: Up to 50 V / 5 A, expandable to 100 V / 10 A
  • Ethernet (1 Gbps) and USB-C for fast data transfer
  • Integrated touch display for setup and diagnostics
  • Software options: Web interface, TSP Toolkit, ACS Suite, Python/IVI/LabVIEW driver

Accessoires

Accessoires

MPSU50-2ST
New
New
Tektronix
MPSU50-2ST
Power Supply Module for Modular Test System MP5000 Series, 50 V, 5 A, 50 W, 2 Channels
Delivery time upon request
€2,040.00
MSMU60-2
New
New
Tektronix
MSMU60-2
SMU Module for Modular Test System MP5000 Series, 30 W, 60 V, 1.5 A, 2 Channels
Delivery time upon request
€12,100.00
