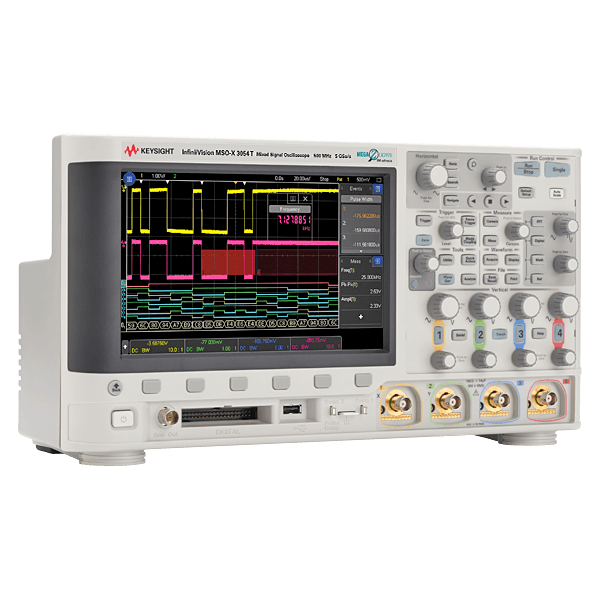

Keysight Oscilloscope, MSO, 4 + 16-channel, 500 MHz, 1 million wfm / s | MSOX3054T

Name: Oscilloscope, MSO, 4 + 16-channel, 500 MHz, 1 million wfm / s | MSOX3054T
Brand: Keysight
SKU: MSOX3054T
Price: 19013.0 EUR
Availability: InStock

Manufacturer number: MSOX3054T

Delivery time upon request

€19,013.00

plus VAT. €22,625.47 VAT plus shipping costs

or choose one of the following options:

Request a quote Product inquiries Request education-price

Keysight MSOX3054T | 4- / 16-channel mixed-signal oscilloscope (digital storage oscilloscope and logic analyzer) with a bandwidth of 500 MHz, up to 5 GS / s sampling rate and a signal acquisition rate of 1,000,000 [1 million] signals / s.

4 analog and 16 digital inputs
500 MHz bandwidth
Sampling rate 2.5 GS / s per channel, 5 GS / s with half the number of channels (interleaved)
Memory depth 4 megapoints
Segmentable memory built in as standard (adjustable up to 1,000 segments)
MegaZoom IV memory and display technology for fast navigation and signal analysis
highest signal acquisition rate of 1,000,000 signals / s for the safe acquisition of rare events
Real-time signal acquisition
Vertical resolution 8 bit / up to 12 bit in high resolution mode
38 automatic measurement functions and snapshot function
InfiniiScan Touch Zone (2 zones) triggering with 21 standard trigger modes for fast debugging
Powerful trigger options
Dual bus decoding of Flexray, I²C, SPI, CAN, CAN-FD, CAN-dbc, SENT, LIN, RS232 / RS485 / UART, I²S buses (with optional modules)
Advanced math built in by default
FFT with up to 64 kpts resolution: Hanning, Flat Top, Rectangle, Blackman-Harris
Standard built-in 3 digit digital voltmeter (DSOXDVM)
Internal frequency counter over any analog or digital channel, resolution 5 digits, max. Frequency and bandwidth
Integrated Education Training Kit (DSOXEDK)
Keysight autoprobe input for connecting active Keysight probes or classic passive probes with BNC connector or BNC connector with read out
Input impedance selectable 1MΩ or 50Ω
Brilliant 21.6 cm touch screen color wide screen in WVGA (800 x 480px) resolution
Adjustable persistence: Off, infinite, variable (100ms - 60s)
64 brightness levels to show the frequency of signal details
"Push buttons" and direct menu buttons for quick and intuitive operation
Graphical user interface and help function in German (11 languages)
Whisper-quiet operation for relaxed and concentrated work.
USB 2.0 high-speed device port on the rear panel
One USB 2.0 high-speed host port each on the front panel and on the rear wall (supports memory sticks, USB keyboard, mouse and printer)
Storage of setup files / settings
Save signal data and / or transfer to PC of signal data in * .csv
Save and / or transfer screenshots to PC in 8/24 bit * .bmp and 24 bit * .png
Intuilink SW / Toolbars for fast processing of the data in Microsoft Word / Excel
Housing dimensions: W 380.6 x H 204.4 x D 141.5 mm
Weight: 4 kg
Connection voltage: 100-120V, 50/60/400 Hz; 100-240V, 50/60 Hz ± 10% auto ranging
Recommended calibration cycle: 3 years

Technical Data

Article number:	MSOX3054T
Bandwidth (MHz):	500
Counter:	Yes
DVM:	Yes
Dimensions (L x W x H) (mm):	142 x 381 x 204
Function generator:	Optional: AWG 20 MHz (can be activated via license)
Interfaces:	USB optional: Ethernet, GPIB
Model:	MSOX3054T
Number of channels:	4
Number of digital channels:	16
Samplerate:	5 GSa/s
Screen size:	21.6 cm
Screen type:	800 x 480, TFT LCD touchscreen
Segmentable memory:	default
Signal acquisition rate:	1,000,000 wfms/sec
Special features:	optional: Enhanced Security
Storage depth:	4 MPts
Triggertypes:	Zone, Edge, Edge then edge, Pulse width, Runt, Setup and hold, Rise/fall time, Nth edge burst, Pattern, Or, Video Optional: Enhanced Video
Vertical resolution:	8-bit
Warranty (years):	3
Weight (kg):	4

Description

Oscilloscope, MSO, 4 + 16-channel, 500 MHz, 1 million wfm / s | MSOX3054T

This Keysight oscilloscope of the 3000T-X series offers more comfort and real productivity increases through the operation via the capacitive touch screen for an even faster display of measurement information on the screen.

The InfiniiScan Touch Zone Trigger simplifies triggering: just drag a box on the screen with your finger around the signal event of interest and the oscilloscope will trigger on it. Two trigger zones can be selected.

Thanks to the high signal acquisition rate of 1 million wfm / s, the oscilloscope reacts to setting changes at lightning speed even if digital channels, protocol decoding , mathematical functions or automatic measurement functions are activated. This increases the detection probability many times over for random or rare events that slower oscilloscopes often miss.

These oscilloscopes are unusually versatile because they combine the possible functions of many measuring devices : oscilloscope, logic analyzer, protocol analyzer, voltmeter, 8 digit counter and 1-channel arbitrary function generator. And your investment is optimally protected, because all models can be upgraded in every respect - including bandwidth - if necessary.

Lieferumfang

1 x oscilloscope
4 x passive probes 500MHz 10: 1 including accessories
16 channel logic probe including accessories for contacting
Documentation (user manual) on CD
Power cord
Traceable calibration certificate
