B&K Precision MR3K160120 | Programmable DC power supply unit, multi-range, 160 V, 120 A, 3 kW, USB, RS-232/-485, LAN, GPIB, MR series

Name: MR3K160120 | Programmable DC power supply unit, multi-range, 160 V, 120 A, 3 kW, USB, RS-232/-485, LAN, GPIB, MR series
Brand: B&K Precision
SKU: MR3K160120
Price: 4400.0 EUR
Availability: InStock

Manufacturer number: MR3K160120

Delivery time upon request

€4,400.00

plus VAT. €5,236.00 VAT plus shipping costs

or choose one of the following options:

Request a quote Product inquiries Request education-price

B&K Precision MR3K160120 | Programmable DC power supply unit, multi-range, 160 V, 120 A, 3 kW, USB, RS-232/-485, LAN, GPIB, MR series.

Product features:

Maximum output voltage: 160 V
Maximum output current: 120 A
Maximum output power: 3000 W
Form factor: 2U
Voltage regulation (line regulation): 32 mV
Current regulation (line regulation): 60 mA
Voltage regulation (load regulation): 80 mV
Current regulation (load regulation): 180 mA
Waves and noise (voltage p-p): 120 mV
Waves and noise (voltage rms): 48 mV
Waves and noise (current rms): 120 mA
Programming resolution: 10 mV / 7.5 mA
Programming accuracy (voltage): 160 mV
Programming accuracy (current): 360 mA
Regulation mode: constant voltage (CV) / constant current (CC)
Interfaces: USB, RS232, GPIB, LAN (LXI-compatible), analog control
Protection mechanisms: OVP (overvoltage protection), OCP (overcurrent protection), OPP (overload protection), OTP (overtemperature protection)
Master/slave operation: Up to 50 kW with 10 devices connected in parallel
Dimensions: 420 mm x 88 mm x 532 mm
Weight: 17.5 kg
Operating temperature range: 0 °C to 40 °C
Storage temperature range: -10 °C to 70 °C

Technical Data

AC input:	200 V - 240 V ±10 %, 47 Hz - 63 Hz
Additional functions:	Multi-range operation, adjustable rise and fall time, list mode programming, built-in solar array simulator, remote sense function, soft panel software (remote control, data logging)
Article number:	MR3K160120
Autorange:	No
Bidirectional:	No
DC output reversible:	DC Source
Dimensions (L x W x H) (mm):	532 x 420 x 88
Interfaces:	USB, GPIB, LAN, RS-232, analog
Model:	MR3K160120
Number of outputs:	1
Output power (W):	3000
Power factor:	0,99
Protective devices:	OVP, OCP, OPP, OTP, Foldback
Warranty (years):	3
Weight (kg):	17.5
max. Power (A):	120
max. voltage (V):	160

Documents & Downloads

Datasheet

pdf | 2.73 MB

Description

MR3K160120 | Programmable DC power supply unit, multi-range, 160 V, 120 A, 3 kW, USB, RS-232/-485, LAN, GPIB, MR series

The MR series consists of powerful high-voltage multi-range DC power supplies that deliver up to 5 kW of clean output power in a compact 2U form factor. These power supplies are ideal for laboratory applications, research and development and industrial test environments.

The series offers multi-range functionality, allowing multiple fixed voltage sources to be replaced by a single power supply. Standard USB, RS232, GPIB and LXI-compatible LAN interfaces ensure flexible integration into automated test systems. Comprehensive protection functions such as overcurrent, overvoltage and overheating protection increase operational safety.

The MR series power supply units are used in a wide variety of areas, including power electronics testing, materials testing, LED testing, solar simulation and battery charging tests. Thanks to the SAS (Solar Array Simulation) function, they can also be used to generate and simulate I-V curves in photovoltaic applications.

The MR3K160120 is a variant within the MR series with a maximum output voltage of 160 V and a maximum output current of 120 A. This variant offers a maximum output power of 3000 W and is therefore a more compact alternative to the MR160120.

Differences to other models in the series:

Compared to the MR160120 (also 160 V / 120 A), the MR3K160120 offers a lower output power of 3000 W (instead of 5000 W).
The MR25080, MR50040 and MR100020 models differ in their higher output voltages (250 V, 500 V and 1000 V respectively) with lower output currents.

The MR3K160120 is a compact yet powerful solution for applications that require flexible voltage and current regulation.

Alternate products (4 products)

Series

B&K Precision

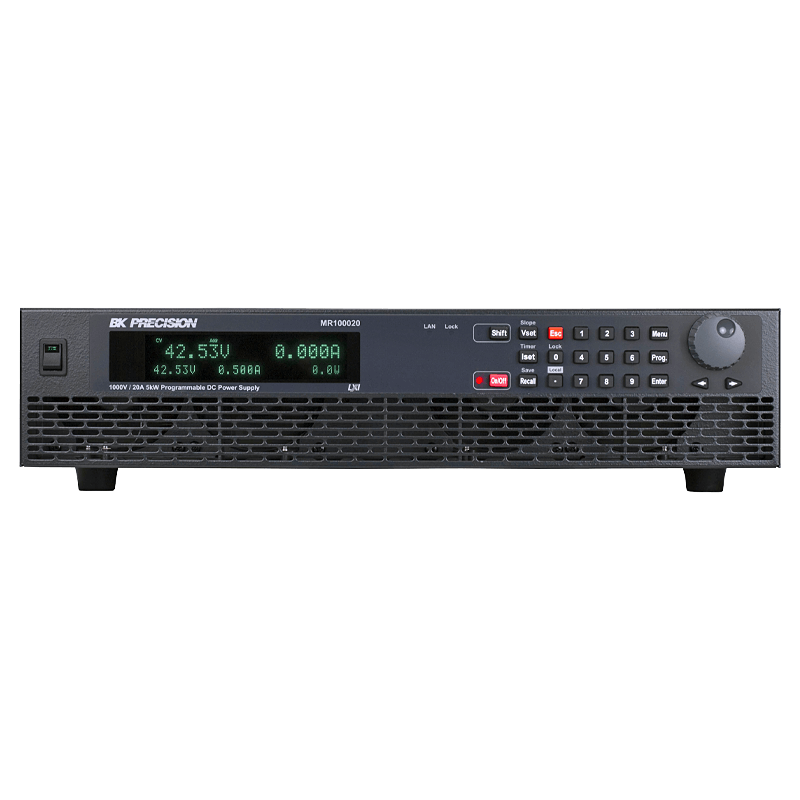

MR100020

Programmable DC power supply unit, multi-range, 1000 V, 20 A, 5 kW, USB, RS-232/-485, LAN, GPIB, MR series

Delivery time upon request

€6,100.00

Series

B&K Precision

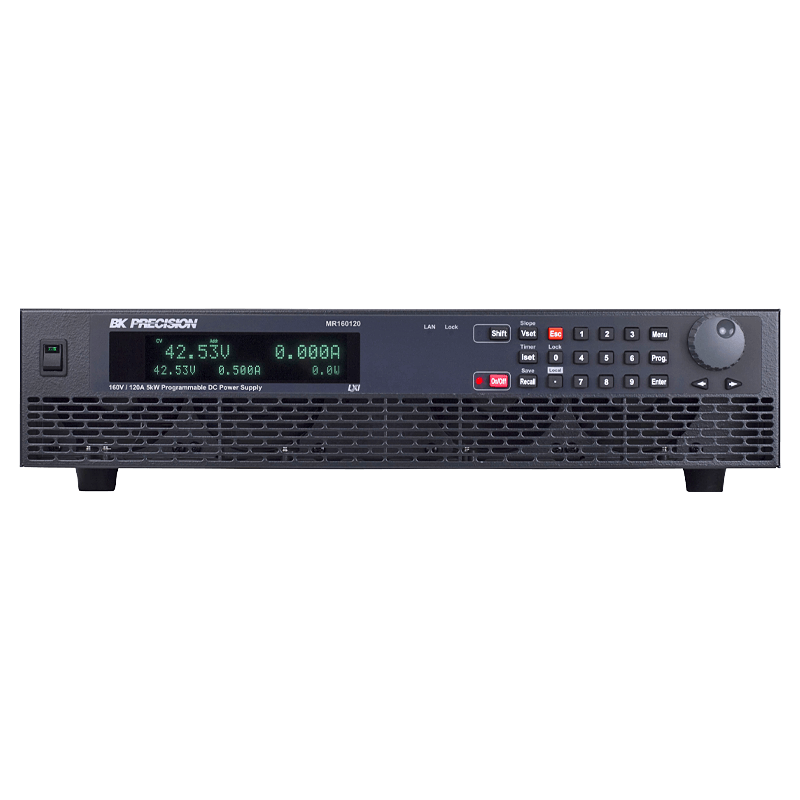

MR160120

Programmable DC power supply unit, multi-range, 160 V, 120 A, 5 kW, USB, RS-232/-485, LAN, GPIB, MR series

Delivery time upon request

€6,100.00

Series

B&K Precision

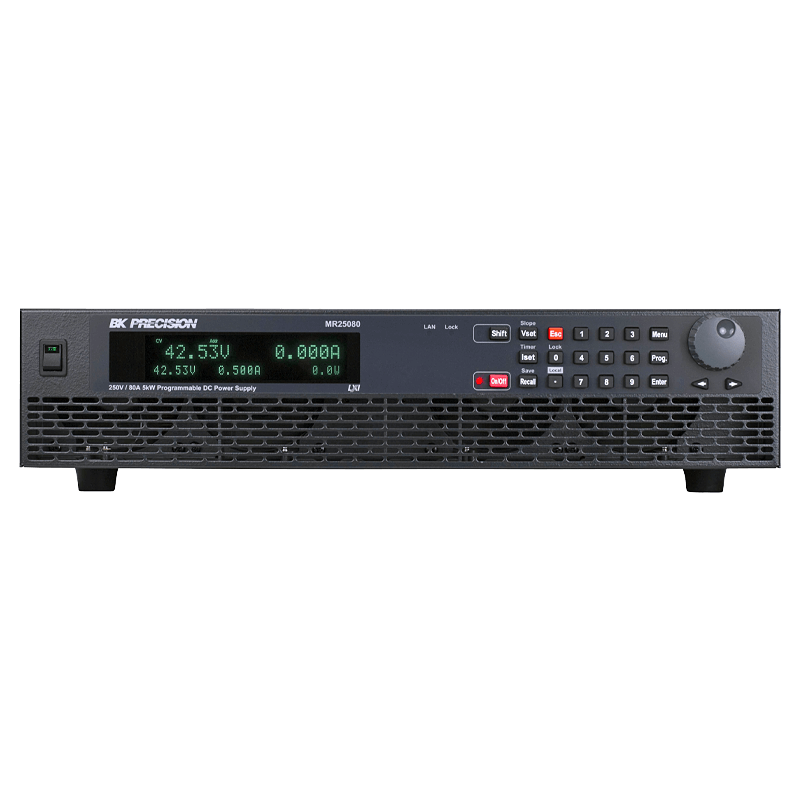

MR25080

Programmable DC power supply unit, multi-range, 250 V, 80 A, 5 kW, USB, RS-232, RS-485, LAN, GPIB, MR series

Delivery time upon request

€6,100.00

Series

B&K Precision

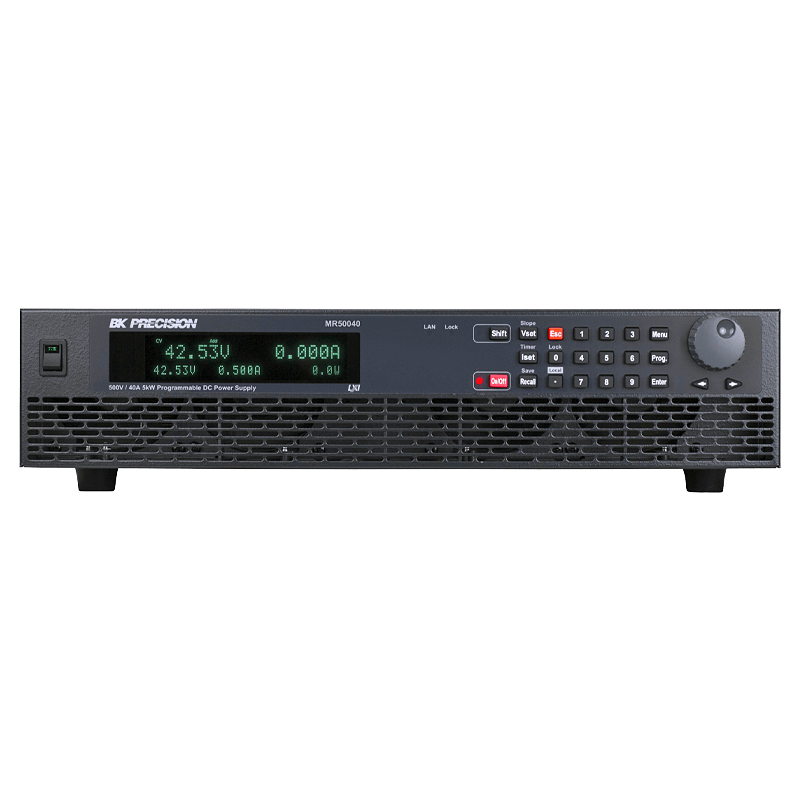

MR50040
