B&K Precision MR25080 | Programmable DC power supply unit, multi-range, 250 V, 80 A, 5 kW, USB, RS-232, RS-485, LAN, GPIB, MR series

Manufacturer number: MR25080

MR25080
MR25080
MR25080
MR25080
MR25080
MR25080
Delivery time upon request

€6,100.00

plus VAT. €7,259.00 VAT plus shipping costs

or choose one of the following options:
Request a quote Product is already in cart
Product downloads Product inquiries Request education-price
Highlights Technical Data Documents / Downloads Description Related Articles

B&K Precision MR25080 | Programmable DC power supply unit, multi-range, 250 V, 80 A, 5 kW, USB, RS-232, RS-485, LAN, GPIB, MR series

Product features:

  • Maximum output voltage: 250 V
  • Maximum output current: 80 A
  • Maximum output power: 5000 W
  • Form factor: 2U
  • Voltage regulation (line regulation): 15 mV
  • Current regulation (line regulation): 20 mA
  • Voltage regulation (load regulation): 120 mV
  • Current regulation (load regulation): 50 mA
  • Waves and noise (voltage p-p): 500 mV
  • Waves and noise (voltage rms): 85 mV
  • Waves and noise (current rms): 20 mA
  • Programming resolution: 10 mV / 5 mA
  • Programming accuracy (voltage): 100 mV
  • Programming accuracy (current): 60 mA
  • Regulation mode: constant voltage (CV) / constant current (CC)

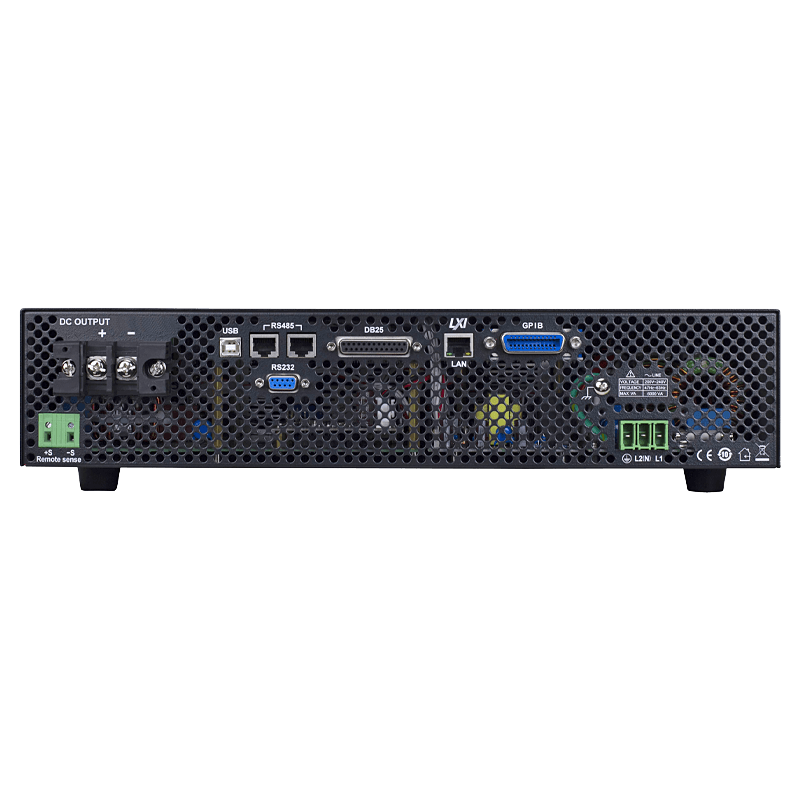

  • Interfaces: USB, RS232, GPIB, LAN (LXI-compatible), analog control
  • Protection mechanisms: OVP (overvoltage protection), OCP (overcurrent protection), OPP (overload protection), OTP (overtemperature protection)
  • Master/slave operation: Up to 50 kW with 10 devices connected in parallel
  • Dimensions: 420 mm x 88 mm x 532 mm
  • Weight: 17.5 kg
  • Operating temperature range: 0 °C to 40 °C
  • Storage temperature range: -10 °C to 70 °C

Technical Data

Documents & Downloads

Datasheet
pdf | 2.73 MB

Description

MR25080 | Programmable DC power supply unit, multi-range, 250 V, 80 A, 5 kW, USB, RS-232, RS-485, LAN, GPIB, MR series

The MR series includes powerful high-voltage multi-range DC power supplies that deliver up to 5 kW of clean output power in a compact 2U form factor. They are designed for use in laboratories, research facilities and industrial test systems where wide voltage and current regulation is required.

The multi-range feature enables the replacement of multiple fixed power supplies, increasing flexibility and reducing costs. Thanks to the standard USB, RS232, GPIB and LXI-compatible LAN interfaces, the devices are easy to integrate into automated test systems. In addition, they offer comprehensive protection functions such as overcurrent, overvoltage and overheating protection.

The MR series is used for a wide range of applications, including material testing, LED testing, battery simulation and power electronics testing. In addition, these power supplies are equipped with a SAS (Solar Array Simulation) function to generate realistic I-V curves for solar tests.

The MR25080 is a variant within the MR series with a maximum output voltage of 250 V and a maximum output current of 80 A. This variant offers a maximum output power of 5000 W and is therefore ideal for applications that require a medium voltage at a high current.

Differences to other models in the series:

  • Compared to the MR3K160120 and MR160120 models, the MR25080 offers a higher maximum voltage (250 V instead of 160 V), but a lower maximum current (80 A instead of 120 A).
  • Compared to the MR50040 and MR100020 models, the MR25080 is characterized by a medium voltage and higher current.

The MR25080 offers an ideal solution for applications that require higher voltages and currents in a powerful, compact design.
