Teledyne FLIR Si1-LD | Industrial Acoustic Camera for Detecting Compressed Air Leaks (T912537)

Manufacturer number: T912537

Si1-LD
Si1-LD
Si1-LD
Si1-LD
Si1-LD
Si1-LD
Si1-LD
Si1-LD
Si1-LD
Si1-LD
Si1-LD
Si1-LD
Si1-LD
Si1-LD
Si1-LD
Si1-LD
Si1-LD
Si1-LD
2 in stock. Ready to ship in 1 business day

€8,499.00

plus VAT. €10,113.81 VAT plus shipping costs

or choose one of the following options:
Request a quote Product is already in cart
Product downloads Product inquiries Request education-price
Highlights Technical Data Documents / Downloads Description Related Articles

FLIR Si1-LD | Industrial Acoustic Camera for Leak Detection of Compressed Air Leaks, 2 kHz to 100 kHz, 0.3 m to 130 m (T912537).

Technical Data

Documents & Downloads

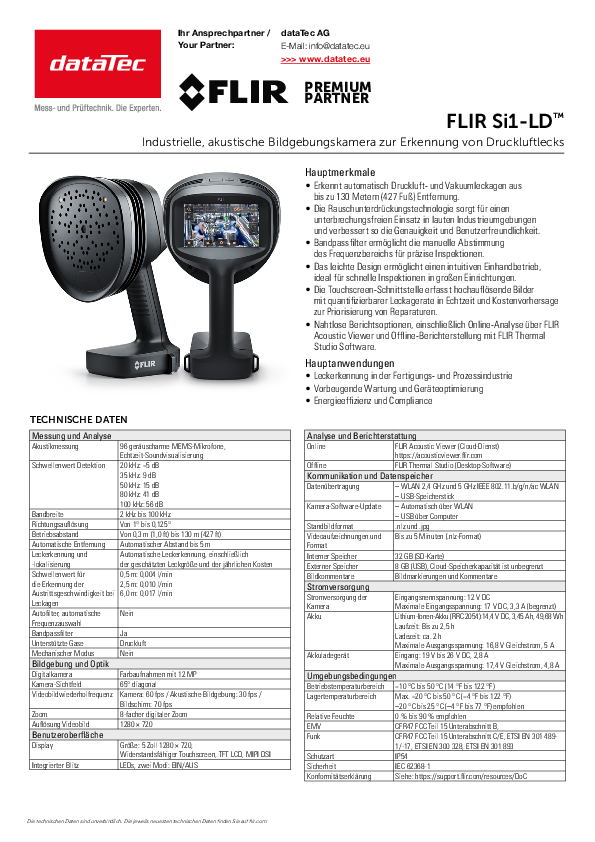

Overview
pdf | 0.23 MB

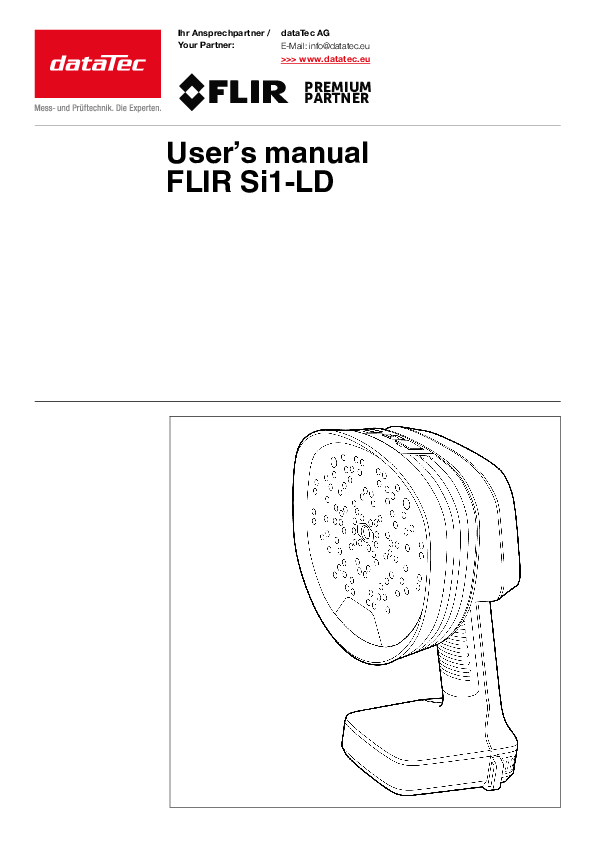

Userguide
pdf | 5.64 MB
Overview
pdf | 0.23 MB
Userguide
pdf | 5.64 MB

Description

Si1-LD | Industrial Acoustic Camera for Detecting Compressed Air Leaks (T912537)

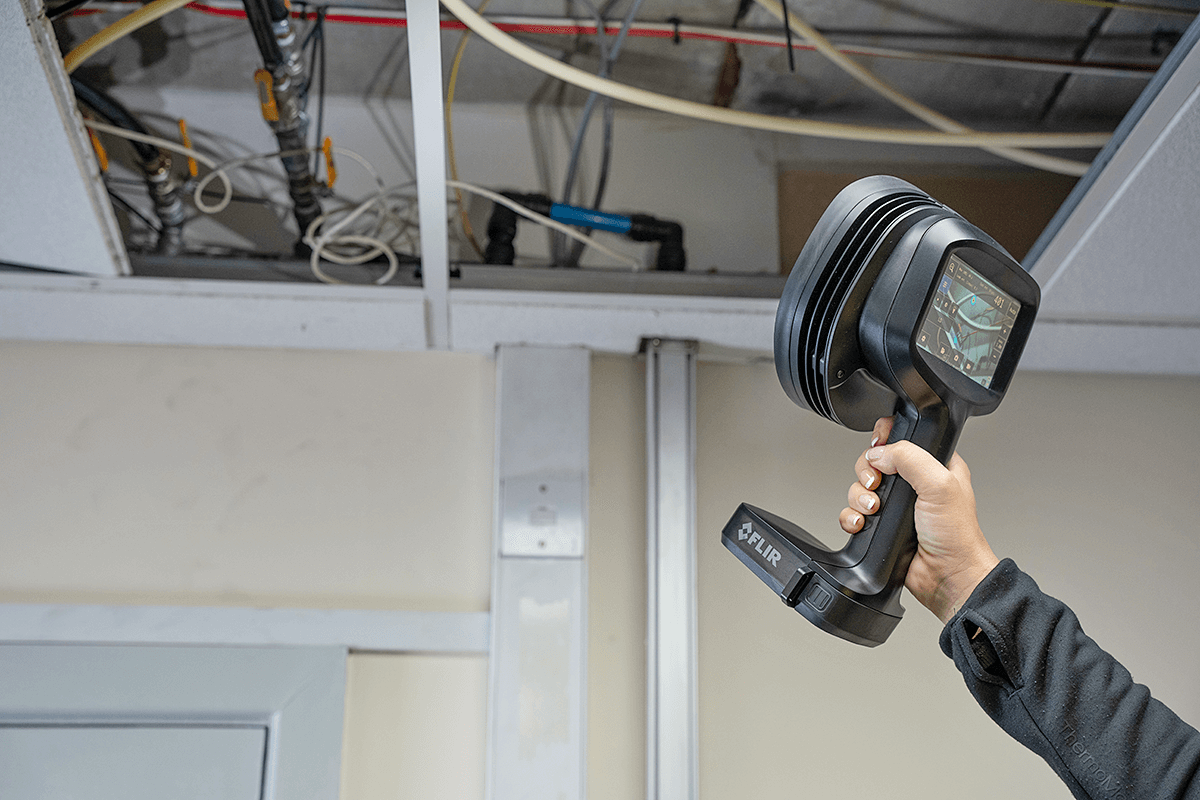

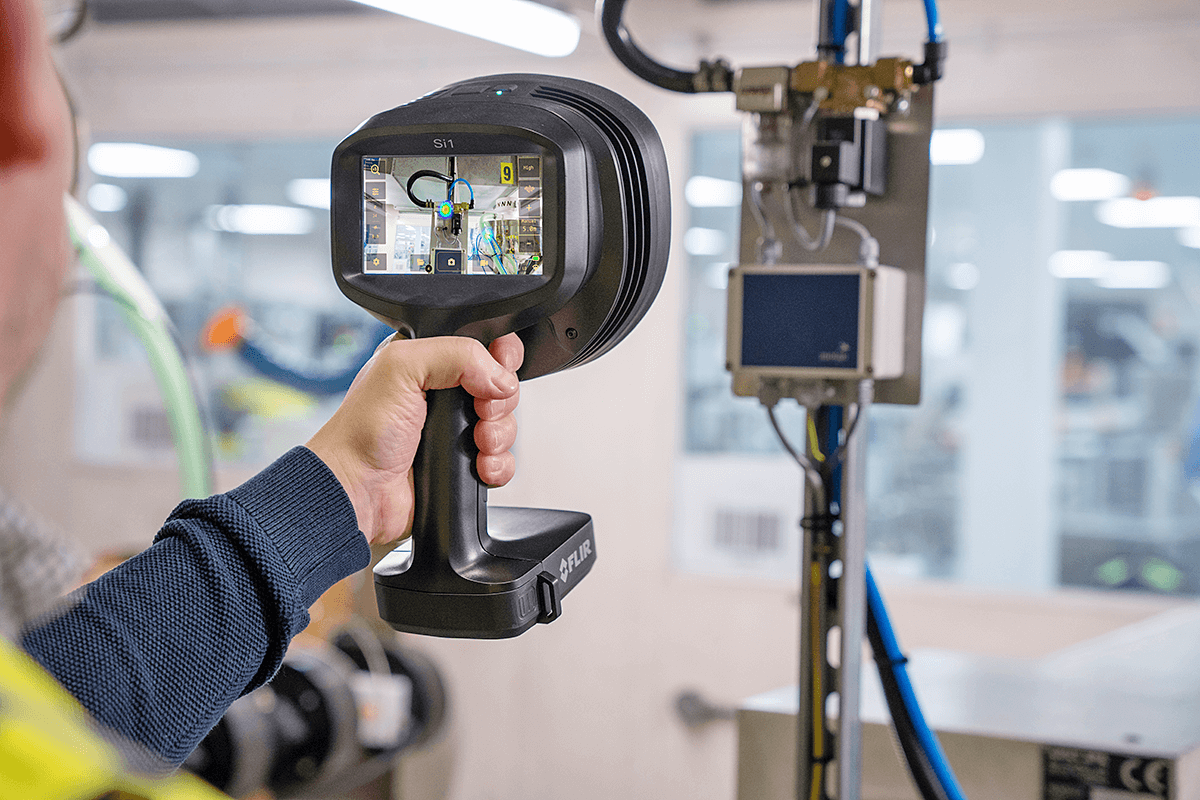

The FLIR Si1-LD is a state-of-the-art industrial acoustic imaging system specifically designed for the detection of compressed air and vacuum leaks. With an impressive detection range of up to 130 meters, this model is ideal for large industrial facilities and demanding environments.

Thanks to the innovative noise suppression technology, the camera enables reliable leak detection even in noisy environments. The combination of real-time leak rate and cost analysis, intuitive one-handed operation and lightweight design makes the FLIR Si1-LD an indispensable tool for preventive maintenance, energy savings and regulatory compliance.

It is particularly suitable for applications in the manufacturing industry, process industry and energy efficiency programs.

Product features:

Acoustic measurement & leak detection

  • 96 MEMS microphones for high-precision sound visualization in real time
  • Detection threshold:
    • 20 kHz: −5 dB
    • 35 kHz: 9 dB
    • 50 kHz: 15 dB
    • 80 kHz: 41 dB
    • 100 kHz: 56 dB
  • Frequency range: 2 kHz to 100 kHz
  • Directional resolution: From 1° to 0.125°
  • Detection distance: 0.3 m to 130 m
  • Automatic leak localization with estimation of leak size and annual cost
  • Leak rate detection threshold:
    • 0.5 m: 0.004 l/min
    • 2.5 m: 0.010 l/min
    • 6.0 m: 0.017 l/min
  • Manually adjustable bandpass filter
  • Supported gases: Compressed air

Imaging & optics

  • Digital camera with 12 MP color sensor
  • Field of view: 65° diagonal
  • Video frame rate: camera: 60 fps, acoustic image: 30 fps, screen: 70 fps
  • Video resolution: 1280 × 720
  • 8x digital zoom

Operation & display

  • 5-inch touch screen (1280 × 720, resistive, TFT LCD)
  • Integrated LED flashlight with ON/OFF mode

Analysis & Reporting

  • Online analysis & via FLIR Acoustic Viewer
  • Offline reports with FLIR Thermal Studio

Data transmission, communication & data storage

  • Wi-Fi (2.4 GHz & 5 GHz, IEEE 802.11 b/g/n/ac)
  • USB stick
  • Image formats: .nlz and .jpg
  • Video recording up to 5 minutes (.nlz)
  • Internal memory: 32 GB on SD card
  • External memory: 8 GB USB, unlimited cloud storage
  • Image comments & tags

Power supply

  • Mains connection: 12 V DC, max. 17 V, 3.3 A
  • Battery: Li-Ion 14.4 V, 3.45 Ah, runtime up to 2.5 hours
  • Charging time approx. 2 hours
