B&K Precision MR100020 | Programmable DC power supply unit, multi-range, 1000 V, 20 A, 5 kW, USB, RS-232/-485, LAN, GPIB, MR series

Manufacturer number: MR100020

MR100020
MR100020
MR100020
MR100020
MR100020
MR100020
Delivery time upon request

€6,100.00

plus VAT. €7,259.00 VAT plus shipping costs

or choose one of the following options:
Request a quote Product is already in cart
Product downloads Product inquiries Request education-price
Highlights Technical Data Documents / Downloads Description Related Articles

B&K Precision MR100020 | Programmable DC power supply unit, multi-range, 1000 V, 20 A, 5 kW, USB, RS-232/-485, LAN, GPIB, MR series

Product features:

  • Maximum output voltage: 1000 V
  • Maximum output current: 20 A
  • Maximum output power: 5000 W
  • Form factor: 2U
  • Voltage regulation (line regulation): 80 mV
  • Current regulation (line regulation): 10 mA
  • Voltage regulation (load regulation): 250 mV
  • Current regulation (load regulation): 25 mA
  • Waves and noise (voltage p-p): 700 mV
  • Waves and noise (voltage rms): 120 mV
  • Waves and noise (current rms): 5 mA
  • Programming resolution: 100 mV / 1 mA
  • Programming accuracy (voltage): 500 mV
  • Programming accuracy (current): 25 mA
  • Control mode: constant voltage (CV) / constant current (CC)

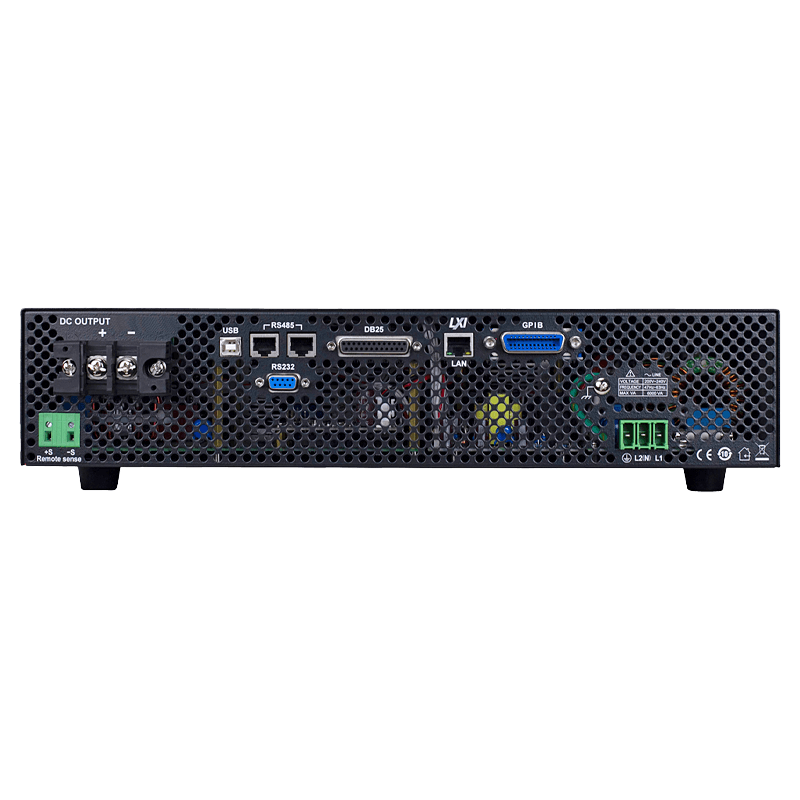

  • Interfaces: USB, RS232, GPIB, LAN (LXI-compatible), analog control
  • Protection mechanisms: OVP (overvoltage protection), OCP (overcurrent protection), OPP (overload protection), OTP (overtemperature protection)
  • Master/slave operation: Up to 50 kW with 10 devices connected in parallel
  • Dimensions: 420 mm x 88 mm x 532 mm
  • Weight: 17.5 kg
  • Operating temperature range: 0 °C to 40 °C
  • Storage temperature range: -10 °C to 70 °C

Technical Data

Documents & Downloads

Datasheet
pdf | 2.73 MB

Description

MR100020 | Programmable DC power supply unit, multi-range, 1000 V, 20 A, 5 kW, USB, RS-232/-485, LAN, GPIB, MR series

The MR series includes powerful high-voltage multi-range DC power supplies that deliver up to 5 kW of clean output power in a compact 2U form factor. They are ideal for laboratory applications, industrial test benches and research and development projects that require precise voltage and current regulation.

Thanks to the multi-range function, these power supplies can replace several conventional, fixed power supplies. The MR series has USB, RS232, GPIB and LXI-compatible LAN interfaces that enable easy integration into automated test systems. In addition, the devices offer comprehensive protection mechanisms such as overcurrent, overvoltage and overheating protection.

The MR series is particularly useful for applications such as high-voltage tests, power electronics tests, battery charge simulations and LED tests. With the integrated SAS (Solar Array Simulation) function, realistic I-V curves can be generated for solar tests.

The MR100020 is the variant with the highest output voltage within the MR series. It offers a maximum output voltage of 1000 V and a maximum output current of 20 A. With a maximum output power of 5000 W, it is specially designed for high-voltage applications.

Differences to other models in the series:

  • The MR100020 has the highest output voltage in the series at 1000 V, but the lowest maximum current (20 A).
  • Compared to the MR50040, it offers twice the voltage (1000 V instead of 500 V) with half the current (20 A instead of 40 A).
  • The MR3K160120, MR160120 and MR25080 models operate at lower voltages (160 V and 250 V respectively) and higher currents.

The MR100020 is an optimal solution for high-voltage applications that require precise voltage and current regulation with comprehensive protection mechanisms.
