B&K Precision MR160120 | Programmable DC power supply unit, multi-range, 160 V, 120 A, 5 kW, USB, RS-232/-485, LAN, GPIB, MR series

Manufacturer number: MR160120

MR160120
MR160120
MR160120
MR160120
MR160120
MR160120
Delivery time upon request

€6,100.00

plus VAT. €7,259.00 VAT plus shipping costs

or choose one of the following options:
Request a quote Product is already in cart
Product downloads Product inquiries Request education-price
Highlights Technical Data Documents / Downloads Description Related Articles

B&K Precision MR160120 | Programmable DC power supply unit, multi-range, 160 V, 120 A, 5 kW, USB, RS-232/-485, LAN, GPIB, MR series

Product features:

  • Maximum output voltage: 160 V
  • Maximum output current: 120 A
  • Maximum output power: 5000 W
  • Form factor: 2U
  • Voltage regulation (line regulation): 32 mV
  • Current regulation (line regulation): 60 mA
  • Voltage regulation (load regulation): 80 mV
  • Current regulation (load regulation): 180 mA
  • Waves and noise (voltage p-p): 160 mV
  • Waves and noise (voltage rms): 48 mV
  • Waves and noise (current rms): 160 mA
  • Programming resolution: 10 mV / 7.5 mA
  • Programming accuracy (voltage): 160 mV
  • Programming accuracy (current): 360 mA
  • Regulation mode: constant voltage (CV) / constant current (CC)

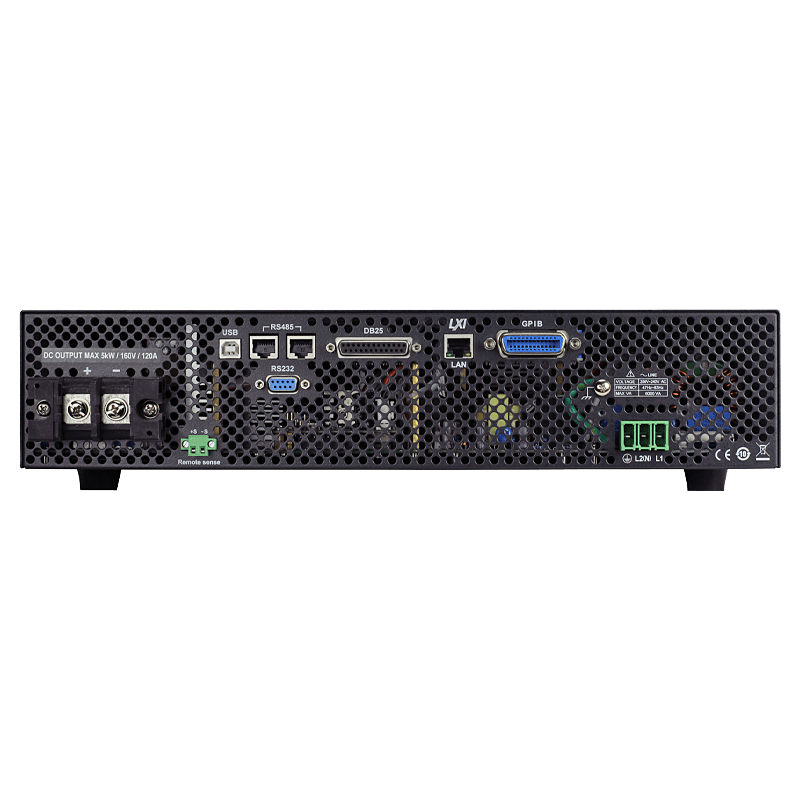

  • Interfaces: USB, RS232, GPIB, LAN (LXI-compatible), analog control
  • Protection mechanisms: OVP (overvoltage protection), OCP (overcurrent protection), OPP (overload protection), OTP (overtemperature protection)
  • Master/slave operation: Up to 50 kW with 10 devices connected in parallel
  • Dimensions: 420 mm x 88 mm x 532 mm
  • Weight: 17.5 kg
  • Operating temperature range: 0 °C to 40 °C
  • Storage temperature range: -10 °C to 70 °C

Technical Data

Documents & Downloads

Datasheet
pdf | 2.73 MB

Description

MR160120 | Programmable DC power supply unit, multi-range, 160 V, 120 A, 5 kW, USB, RS-232/-485, LAN, GPIB, MR series

The MR series is a powerful range of high-voltage, multi-range DC power supplies that deliver up to 5 kW of clean output power in a compact 2U form factor. It is suitable for both bench-top use and automated test systems that require wide voltage and current range coverage.

Thanks to the multi-range functionality, these power supplies can replace multiple fixed power supplies. The series supports various interfaces, including USB, RS232, GPIB and LXI-compatible LAN, allowing for flexible remote control and programming. In addition, the MR series offers comprehensive protection functions such as overcurrent, overvoltage and overheating protection.

These power supplies are used in laboratory environments, research and development projects, as well as in industrial test benches and solar technology, where they can be used as solar cell simulators.

The MR160120 is a variant within the MR series with a maximum output voltage of 160 V and a maximum output current of 120 A. This variant offers a maximum output power of 5000 W and is therefore particularly suitable for applications with higher power requirements.

Differences to other models in the series:

  • Compared to the MR3K160120 (also 160 V / 120 A), the MR160120 offers a higher output power (5000 W instead of 3000 W).
  • The MR25080, MR50040 and MR100020 models differ in their higher output voltages (250 V, 500 V and 1000 V respectively), but with lower output currents.

The MR160120 is ideal for high-power applications that require flexible voltage and current regulation, while offering extensive protection and control functions.
