Keithley 3740 | Switching module, 32-channel, insulated, 300 V / 2 A, 4 high-current channels 7 A

Manufacturer number: 3740

3740
3740
Delivery time upon request

€1,960.00

plus VAT. €2,332.40 VAT plus shipping costs

or choose one of the following options:
Request a quote Product is already in cart
Product downloads Product inquiries Request education-price
Highlights Technical Data Documents / Downloads Description Related Articles

Keithley 3740 | switching module, 32-channel, insulated, plug-in module for 3706A data acquisition and switching system, 28 universal channels form C, switching voltage up to 300 V / 2 A, 4 high current channels form A up to 7 A.

  • 28 universal channels (form C): Switching voltage 300 V / 2 A
  • 4 high-current channels: switching voltage 250 VAC / 7 A or 30 VDC / 7 A
  • Analog backplane connection relays for user-defined configurations
  • Connectors: 2x 50-pin (D-sub, male)

Technical Data

Documents & Downloads

Datasheet
3706A
pdf | 1.13 MB

Description

3740 | Switching module, 32-channel, insulated, 300 V / 2 A, 4 high-current channels 7 A

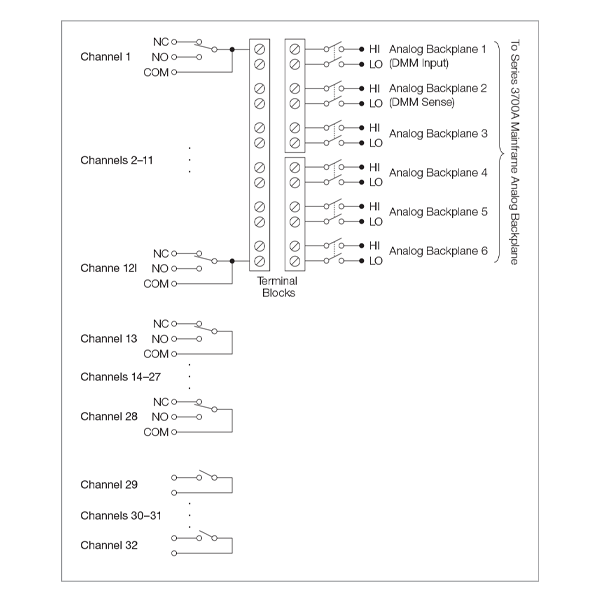

The 3740 switch card offers 28 general purpose Form C channels, which are ideal for routing power or other control devices. Four additional high current Form A channels are available for higher power applications up to 7A. If a measurement signal is to be routed to the 3706A series mainframe backplane, easily accessible terminal blocks are located on the plug-in module, which are activated with wire connections. For additional protection, an integrated temperature sensor signals whether the operating temperature of the card exceeds 70 °C to ensure system specifications are met.

Variety of applications for your data acquisition system:

The extensive portfolio of plug-in cards makes the 3706A data acquisition and switching system a very flexible and economical measurement solution. Up to six modules can be inserted into the basic device (mainframe) and thus configure it into a compact data logger, a fully-fledged measurement data acquisition system or a cost-efficient switching unit.
