Keithley 3721 | Dual 1X20 Multiplex Card (Auto Cjc with 3721-St)

Manufacturer number: 3721

3721
3721
3721
1 in stock. Ready to ship in 1 business day

€1,960.00

plus VAT. €2,332.40 VAT plus shipping costs

or choose one of the following options:
Request a quote Product is already in cart
Product downloads Product inquiries Request education-price
Highlights Technical Data Documents / Downloads Description Related Articles

Tektronix 3721 | Dual 1X20 Multiplex Card (Auto Cjc With 3721-St)

  • 2 independent 1x20 2-pole multiplexers
  • Connection of the banks to a single 1x40 multiplexer via relays
  • Isolation of the banks from the backplane via relays
  • Automatic CJC (Cold Junction Compensation) for temperature measurement with 3721-ST screw connection
  • Scan rate >110 channels/s
  • Switching voltage up to 300 V / 2 A
  • 2 current measurement channels up to 3 A
  • Connections: 2x 50-pin (D-sub, male)

Technical Data

Documents & Downloads

Datasheet
3706A
pdf | 1.13 MB

Description

3721 | Dual 1X20 Multiplex Card (Auto Cjc with 3721-St)

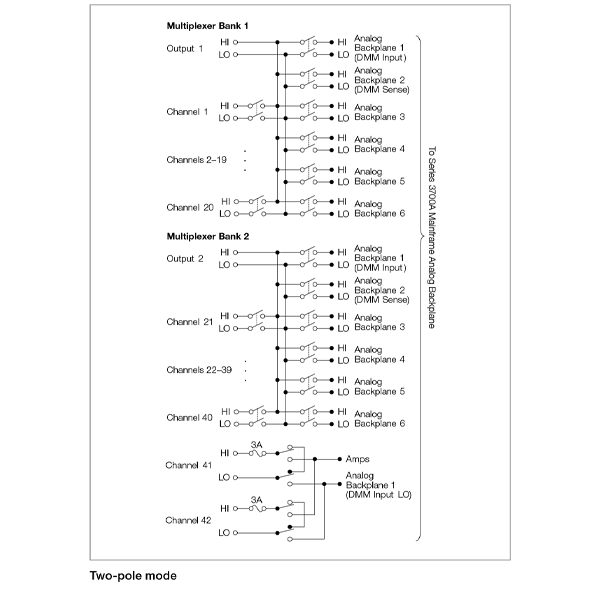

The 3721 plug-in module offers two independent banks of two-pole 1x20 multiplexers and is suitable for general switching applications including temperature measurements. The two multiplexer banks can be interconnected via relays, creating a single 1×40 multiplexer. Optionally, thermocouples can also be connected via the CJC (Cold Junction Compensation) with the temperature-compensated 3721-ST (ST: Screw Termination) screw connection.

Variety of applications for your data acquisition system:

The extensive portfolio of plug-in cards makes the 3706A data acquisition and switching system a very flexible and economical measurement solution. Up to six modules can be inserted into the basic device (mainframe) and thus configure it into a compact data logger, a fully-fledged measurement data acquisition system or a cost-efficient switching unit.
