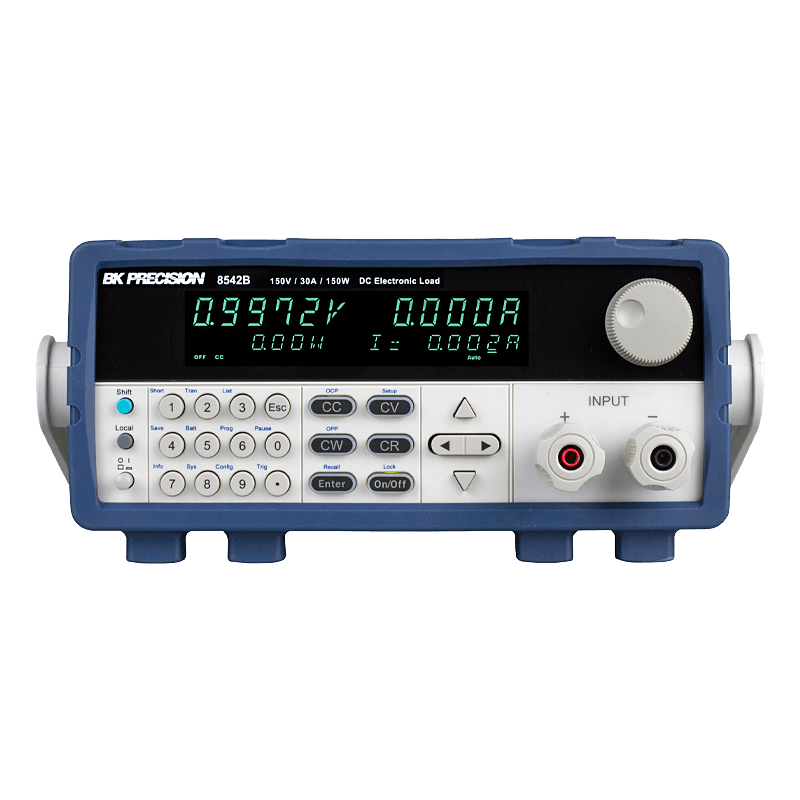

B&K Precision 8542B | Electronic Load, DC, Programmable, 2U Half-Rack, 150V / 30A / 150W

Name: 8542B | Electronic Load, DC, Programmable, 2U Half-Rack, 150V / 30A / 150W
Brand: B&K Precision
SKU: BK8542B
Price: 970.0 EUR
Availability: InStock

Manufacturer number: BK8542B

Delivery time upon request

€970.00

plus VAT. €1,154.30 VAT plus shipping costs

or choose one of the following options:

Request a quote Product inquiries Request education-price

B&K Precision 8542B | Electronic load, DC, programmable, 2U half-rack, 150V / 30A / 150W.

Technical Data

AC input:	110 V / 220 V ±10 %, 50 Hz / 60 Hz
Article number:	BK8542B
DC output reversible:	DC sink
Dimensions (L x W x H) (mm):	354.6 x 214.5 x 88.2
Interfaces:	DB9 (TTL)
Mains feedback:	No
Measurement functions:	16-bit voltage and current measurement system, transient mode up to 10 kHz in CC mode, list mode function CC/CV/CR/CW mode
Model:	BK8542B
Output power (W):	150
Protective devices:	OVP, OCP, OPP, OTP, LRV, RRV
Warranty (years):	3
Weight (kg):	7.2
max. Power (A):	30
max. voltage (V):	150

Description

8542B | Electronic Load, DC, Programmable, 2U Half-Rack, 150V / 30A / 150W

The 8542B model is the compact entry-level model in the 8500B series and is ideal for simple test tasks in the laboratory or in production. With 150 W maximum power consumption, 30 A input current and up to 150 V input voltage, it offers an excellent price-performance ratio.

Operation is via an intuitive front panel with rotary control, dual-line display and function buttons. Functions such as transient mode, list mode, battery tests and PC control round off the package.

Application areas:

Entry-level laboratory tests of DC sources
Low-power battery discharge
Functional testing of small consumers
Quality assurance in series testing

Product features:

Input voltage: 0-150 V
Maximum input current: 30 A
Maximum input power: 150 W
Minimum operating voltage at full load: 2.5 V at 30 A
CV mode: 0.1 - 150 V, resolution: 10 mV
CC mode: 0 - 30 A, resolution: 1 mA
CR mode: 0.05 Ω - 7.5 kΩ
CW mode: up to 150 W
Slew rate: 0.0001 - 0.2 A/µs (low), up to 1 A/µs (high)
Interfaces: TTL (DB9) with USB adapter
Form factor: 2U half rack, weight: 4.7 kg

As a compact entry-level model, the 8542B offers solid basic equipment for standard tests with low power requirements. In comparison, the 8500B and 8502B offer higher power (300 W) and an extended voltage range. The 8510B and 8514B are significantly more powerful and are suitable for high current and industrial applications.

Alternate products

Series

B&K Precision
8500B

Electronic Load, DC, Programmable, 2U Half-Rack, 150V / 30A / 300W / TTL Interface

Delivery time upon request

€1,300.00

Series

B&K Precision
8502B

Electronic Load, DC, Programmable, 2U Half-Rack, 500V / 15A / 300W / TTL Interface

Delivery time upon request

€1,450.00

Series

B&K Precision
8510B

Electronic Load, DC, Programmable, 2U Half-Rack, 120V / 120A / 600W / TTL Interface

Delivery time upon request

€2,450.00

Series

B&K Precision

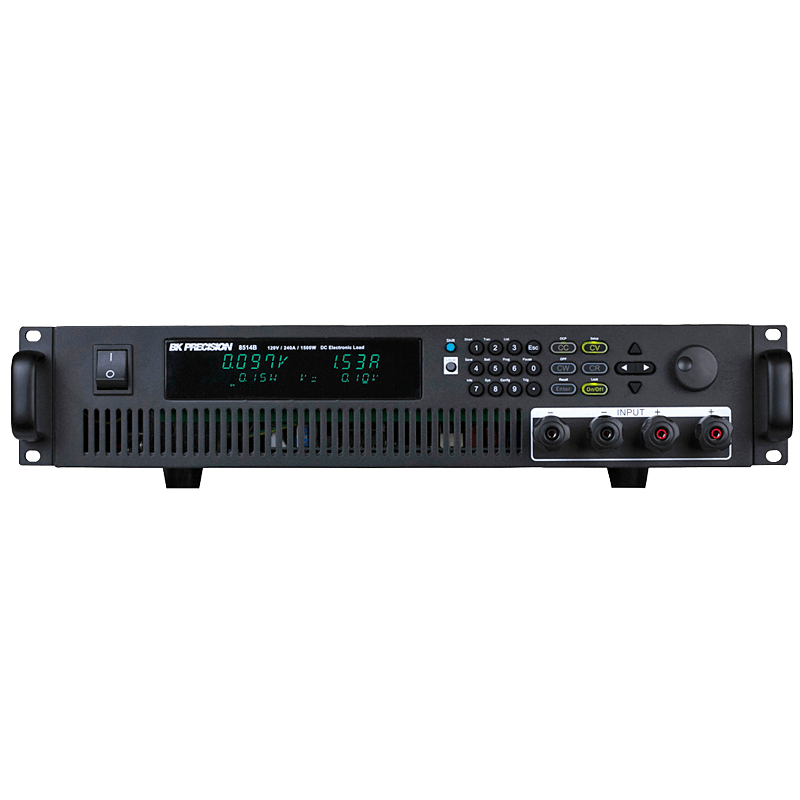

8514B Electronic Load, DC, Programmable, 2U, 120V / 240A / 1500W / USB, RS-232
