B&K Precision 8514B Electronic Load, DC, Programmable, 2U, 120V / 240A / 1500W / USB, RS-232

Name: 8514B Electronic Load, DC, Programmable, 2U, 120V / 240A / 1500W / USB, RS-232
Brand: B&K Precision
SKU: BK8514B
Price: 3625.0 EUR
Availability: InStock

Manufacturer number: BK8514B

Delivery time upon request

€3,625.00

plus VAT. €4,313.75 VAT plus shipping costs

or choose one of the following options:

Request a quote Product inquiries Request education-price

B&K Precision 8514B Electronic load, DC, programmable, 2U, 120V / 240A / 1500W / USB, RS-232.

Technical Data

AC input:	110 V / 220 V ±10 %, 50 Hz / 60 Hz
Article number:	BK8514B
DC output reversible:	DC sink
Dimensions (L x W x H) (mm):	470 x 436.5 x 88.2
Interfaces:	USB, RS-232
Mains feedback:	No
Measurement functions:	16-bit voltage and current measurement system, transient mode up to 10 kHz in CC mode, list mode function CC/CV/CR/CW mode
Model:	BK8514B
Output power (W):	1,500
Protective devices:	OVP, OCP, OPP, OTP, LRV, RRV
Warranty (years):	3
Weight (kg):	20.5
max. Power (A):	240
max. voltage (V):	120

Documents & Downloads

Datasheet

pdf | 2.76 MB

Description

8514B Electronic Load, DC, Programmable, 2U, 120V / 240A / 1500W / USB, RS-232

The 8514B is the most powerful model in the 8500B series and is aimed at professional users with the highest demands. With up to 1500 W power consumption, 240 A input current and 120 V input voltage, this electronic load is ideal for industrial test systems, high-current batteries, UPSs and power supply units.

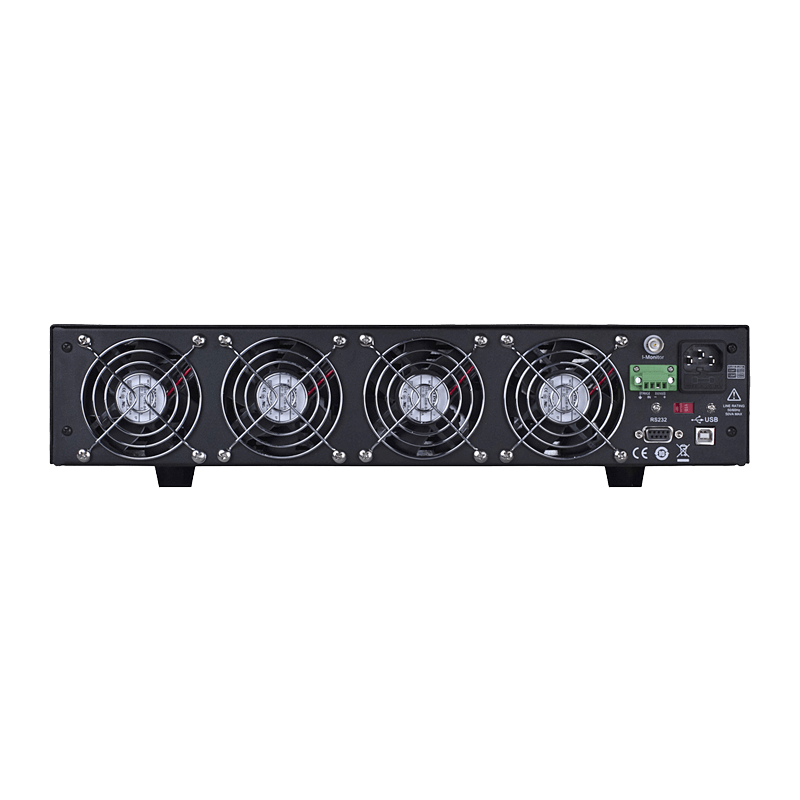

The extensive range of functions includes a precise 16-bit measurement system, dynamic test modes (list, transient, auto), a battery test mode and modern communication interfaces (USB & RS232). Thanks to the temperature-controlled fans, quiet operation is guaranteed even at maximum power.

Application areas:

Industrial power supply testing
High current battery testing
Electric vehicle components and charging infrastructure
Power density DC source validation

Product features:

Input voltage: 0-120 V
Maximum input current: 240 A
Maximum input power: 1500 W
Minimum operating voltage at full load: 2.5 V at 240 A
CV mode: 0.1 - 120 V, resolution: 10 mV
CC mode: 0 - 240 A, resolution: 10 mA
CR mode: 0.05 Ω - 7.5 kΩ
CW mode: up to 1500 W
Slew rate: 0.01 - 0.8 A/µs
Interfaces: USB, RS232
Form factor: 2U, weight: 20.5 kg

The 8514B outperforms all other models in the series in terms of performance and power consumption. While the 8510B, for example, manages with 600 W, the 8514B delivers a full 1500 W and is therefore ideal for energy-intensive test environments. Those testing smaller systems or high-voltage sources, on the other hand, are better advised to use the 8502B or 8500B.
