Teledyne FLIR AX8 | Thermal imaging camera 80×60 pixels, MSX IP67, temperature: -10 °C to +150°C (71201-0101)

Name: AX8 | Thermal imaging camera 80×60 pixels, MSX IP67, temperature: -10 °C to +150°C (71201-0101)
Brand: Teledyne FLIR
SKU: 71201-0101
Price: 1089.0 EUR
Availability: InStock

Manufacturer number: 71201-0101

Delivery time upon request

€1,089.00

plus VAT. €1,295.91 VAT plus shipping costs

or choose one of the following options:

Request a quote Product inquiries Request education-price

Teledyne FLIR AX8 temperature sensor with an infrared resolution of 80 × 60 pixels (4,800 temperature measuring points), MSX technology for improved detail display and a temperature range from -10 °C to +150 °C with a thermal sensitivity of < 0.10 °C at +30 °C Ideal for continuous condition and safety monitoring.

Intelligent thermal imaging camera with 4,800 measuring points
Field of View (FOV) 48° × 37°
Fixed focus
Thermal image, real image, MSX (infrared image with improved detail display)
Optic transmittance correction Automatic, based on signals from internal sensors
Emissivity Correction Variable from 0.01 to 1.0
Correction of the reflected ambient temperature Automatic
Up to 6 measuring ranges with alarm functions
6 rectangle areas with max/min/average value/position
Automatic hot/cold spot detection
Built-in digital camera 640 × 480px
Streaming infrared, daylight or MSX video in MPEG, MJPEG and H.264 formats
Comprehensive analysis and alarm functions
Automatic alarm transmission when temperature limits are reached

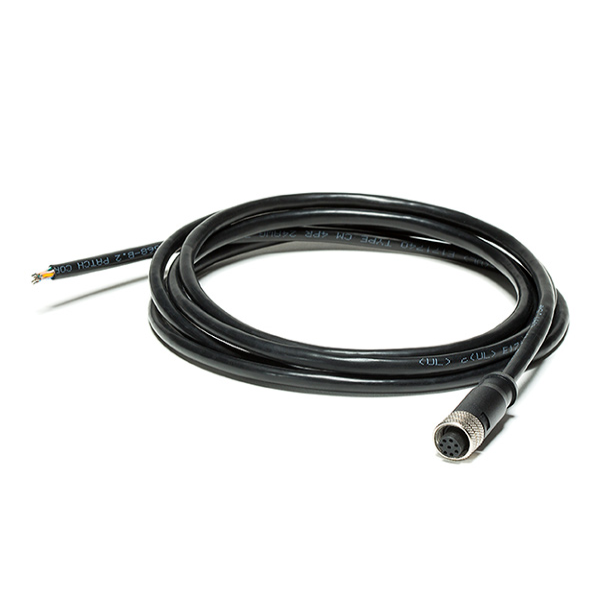

Power, I/O connection (M12)
Ethernet connection (M12)
Ethernet, power supply: Power over Ethernet, PoE IEEE 802.3af class 0.
Ethernet, protocols: Ethernet/IP, Modbus TCP, TCP, UDP, SNTP, RTSP, RTP, HTTP, ICMP, IGMP, ftp, SMTP, SMB (CIFS), DHCP, MDNS (Bonjour), uPnP
Integrated web server for easy and integrated camera control and image display. Access is possible either in any common web browser via http://"IP address of the camera" or via the IP configuration program "IP Config". The AX8 WEB Interface is a complete configuration and control interface for the camera
Ethernet/IP or Modbus TCP bus protocols for industrial use, allowing analysis, alarm and camera control functions and results to be shared with PLCs
IP Config Utility for network-based camera detection and IP address configuration included
Robust IP67 housing (IEC 60529)
Small dimensions (54 x 25 x 95 mm)
Fastening: 4 holes in the housing with a hole depth of max. 4.8 mm for screw ø2.2 mm (mounting plate required, see optional accessories)

Technical Data

Article number:	71201-0101
Model:	AX8
Resolution in pixels:	80 x 60
Temperature measuring points:	4800
Thermal sensitivity (mK):	100

Description

AX8 | Thermal imaging camera 80×60 pixels, MSX IP67, temperature: -10 °C to +150°C (71201-0101)

The FLIR AX8 is a temperature sensor with imaging functionality, combining a thermal and visual camera in a small and affordable package. This sensor ensures continuous temperature monitoring and alarms, thus ensuring uninterrupted condition monitoring of important electrical and mechanical equipment.

The AX8 thermal imaging sensor provides early detection of temperature-related problems in electrical and mechanical systems, making it the ideal temperature sensor for continuous condition monitoring and fire protection in electrical cabinets, processing and manufacturing plants, data centers, mass transportation facilities, power plants and storage facilities.

With its streaming video output, the AX8 not only delivers live images of any installation, but can also automatically alert you when preset temperature limits are exceeded, as well as providing temperature trend analysis.

The FLIR AX8 is Ethernet/IP and Modbus TCP compatible, so analysis and alarm results can be easily transferred to a PLC. Digital inputs and outputs available for alarms and to control external devices. An image masking function makes it possible to select only relevant image areas for analysis.

Lieferumfang

Robust IP67 housing (IEC 60529)
Small dimensions (54 x 25 x 95 mm)
Fastening: 4 holes in the housing with a hole depth of max. 4.8 mm for screw ø2.2 mm (mounting plate required, see optional accessories)

Recommendations (1 products)

Recommendations (1 product)

Teledyne FLIR
AX8 Starter Set

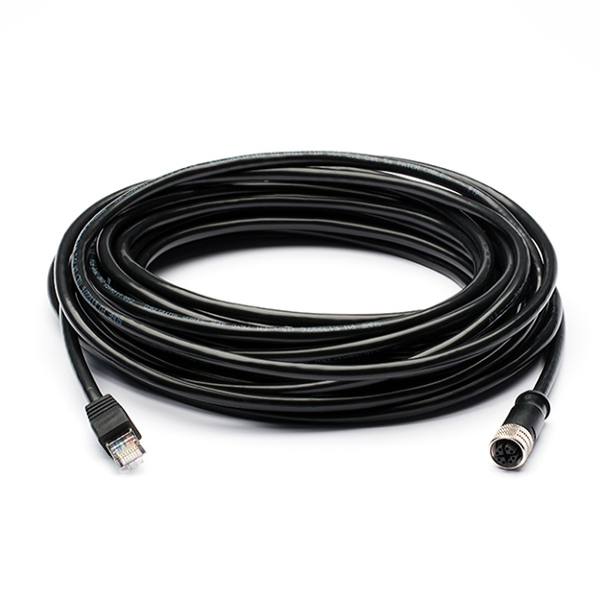

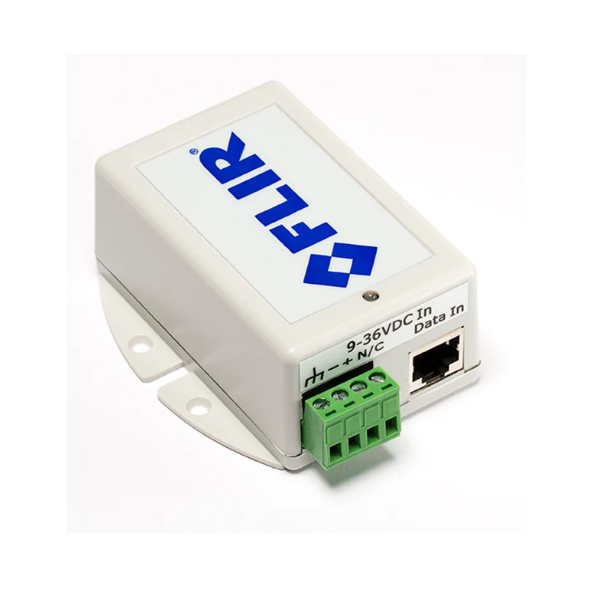

Accessories for thermal imaging camera Ethernet cable, mounting, PoE (71200-0002)
