Tektronix MPSU50-2ST | Power Supply Module for Modular Test System MP5000 Series, 50 V, 5 A, 50 W, 2 Channels

Manufacturer number: MPSU50-2ST

MPSU50-2ST
MPSU50-2ST
MPSU50-2ST
MPSU50-2ST
MPSU50-2ST
MPSU50-2ST
MPSU50-2ST
MPSU50-2ST
MPSU50-2ST
MPSU50-2ST
MPSU50-2ST
MPSU50-2ST
MPSU50-2ST
MPSU50-2ST
MPSU50-2ST

On Request

or choose one of the following options:
Request a quote Product is already in cart
Product downloads Product inquiries Request education-price
Highlights Documents / Downloads Description Related Articles

Tektronix MPSU50-2ST | Power supply module for modular precision test system MP5000 series, 50 V, 5 A, 50 W, 2 channels

Documents & Downloads

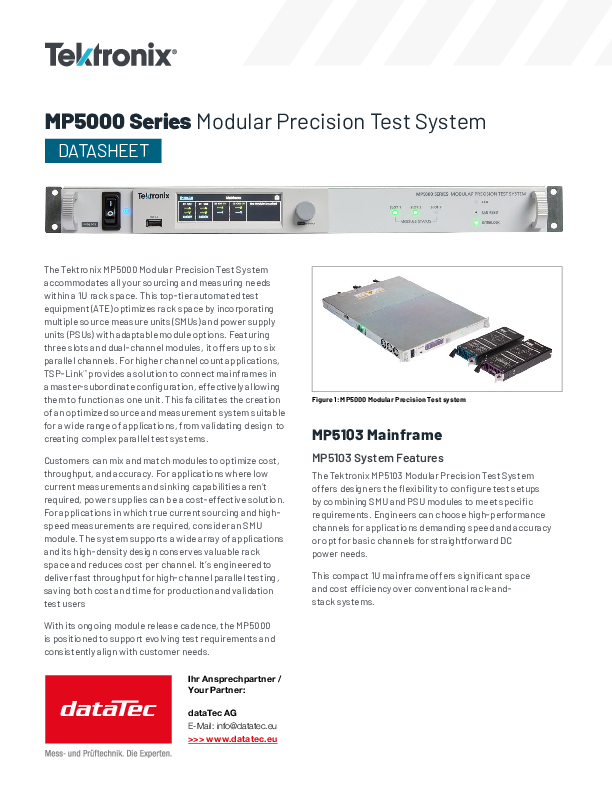

Datasheet
pdf | 2.89 MB

Description

MPSU50-2ST | Power Supply Module for Modular Test System MP5000 Series, 50 V, 5 A, 50 W, 2 Channels

The Tektronix MP5000 series is a flexible and space-saving test system for research, development and production. With its modular design, it allows the combination of Source Measure Units (SMUs) and Power Supply Units (PSUs) in a 1 U rack housing. This achieves a high channel density at a low cost per channel - ideal for modern, automated test environments.

Application options

The MP5000 series can be used in a variety of ways, for example for:

  • Powering and testing electronic assemblies in the laboratory
  • Production environments with high parallel test requirements
  • Long-term and load tests with precise current and voltage regulation
  • ATE systems, where flexible and safe power supply functions are required

PSU module MPSU50-2ST

The MPSU50-2ST is a high-performance power supply module with two isolated channels. It supplies voltages of up to 50 V and currents of up to 5 A per channel and can be expanded to up to 100 V or 10 A by series or parallel connection if required. With its integrated protection and sense technology, it is a reliable tool for precise power supply in laboratories and production.

Advantages and strengths

  • Two independent channels per module - up to 6 channels per mainframe
  • Extended power ranges through channel stacking: Up to 100 V or 10 A
  • Bipolar outputs without reconnecting the lines
  • Built-in protection functions (OVP, OCP) to protect the DUT
  • Physical output isolation via integrated relay when switched off
  • Remote sense function (4-wire) for precise voltage directly at the DUT

Other components of the MP5000 series

  • MP5103 (mainframe) - 1U mainframe with 3 module slots, touch display, Ethernet/USB-C interfaces and TSP-Link synchronization.
  • MSMU60-2 (SMU module) - High-precision SMU module with 2 channels, up to 60 V/1.5 A, 4-quadrant operation and measurement resolution up to 100 fA.

Technical highlights MPSU50-2ST

  • 2 isolated channels per module, up to 6 channels per mainframe
  • Maximum 50 V / 5 A per channel
  • Expandable up to 100 V / 10 A (serial or parallel)
  • Maximum output power: 50 W per channel
  • Bipolar output capability without reconnection
  • Integrated OVP (overvoltage protection) and OCP (overcurrent protection)
  • Remote sense (4-wire) for high-precision output voltage
  • Integrated output relay for safe disconnection when switched off

Accessoires

MP5103
New
New
Tektronix
MP5103
Mainframe for Modular Test System MP5000 Series, 1 U, 3 Slots, 600 W
On Request

Alternate products

MSMU60-2
New
New
Tektronix
MSMU60-2
SMU Module for Modular Test System MP5000 Series, 30 W, 60 V, 1.5 A, 2 Channels
On Request
