Pico PQ373 | Sampler-Extended-Real-Time USB Oscilloscope (SXRTO), PicoScope 9404A-25, 25 GHz, 4 channel, with clock recovery

Manufacturer number: PQ373

PQ373
PQ373
PQ373
PQ373
PQ373
PQ373
PQ373
PQ373
Delivery time upon request

€33,595.00

plus VAT. €39,978.05 VAT plus shipping costs

or choose one of the following options:
Request a quote Product is already in cart
Product downloads Product inquiries Request education-price
Highlights Technical Data Documents / Downloads Description Related Articles

PicoScope PQ373 | Sampler-Extended-Real-Time USB Oscilloscope (SXRTO), PicoScope 9404A-25, 25 GHz, 4 channel, with clock recovery.

Technical Data

Documents & Downloads

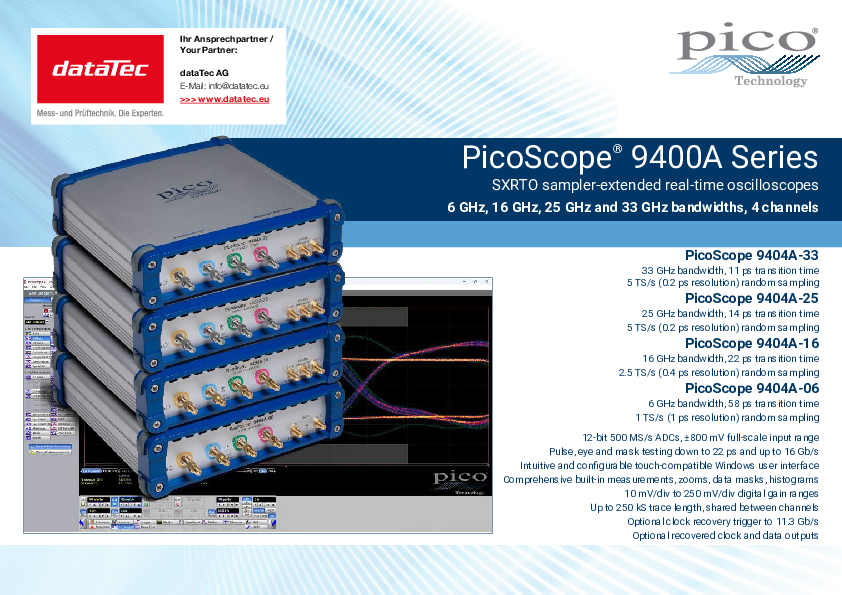

Datasheet
pdf | 1.97 MB

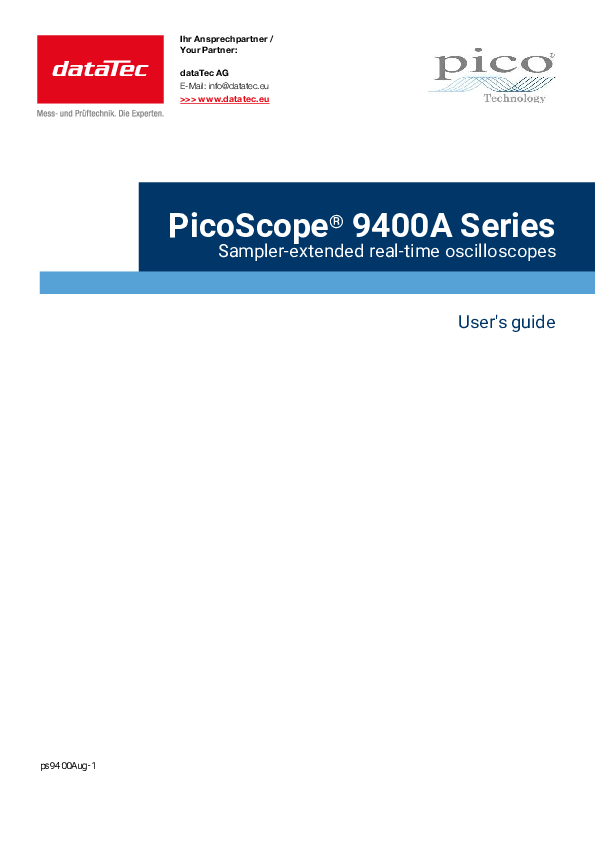

Userguide
pdf | 4.91 MB
Datasheet
pdf | 1.97 MB
Userguide
pdf | 4.91 MB

Description

PQ373 | Sampler-Extended-Real-Time USB Oscilloscope (SXRTO), PicoScope 9404A-25, 25 GHz, 4 channel, with clock recovery

The PicoScope 9404A-25 is an outstanding oscilloscope with advanced technical specifications, versatility and built-in ease of use to support engineers in demanding signal analysis. With an impressive 25 GHz bandwidth and the innovative Sampler-Extended Real-Time Oscilloscope (SXRTO) technology, it sets new standards in the field of measurement technology.

Product features:

  • Bandwidth: 25 GHz, 4 channels
  • Real-time sampling rate: 500 MS/s, ideal for low-frequency signals or single events.
  • Effective sampling rate: Up to 5 TS/s through Random Equivalent-Time Sampling for recurring high-speed signals.
  • Internal trigger: Up to 18 GHz, eliminating the need for external triggers or clock recovery circuits.
  • Software support: PicoSample 4 PC software allows users to easily configure the instrument and visualize waveforms.

Special features:

  • Combination of sampling and real-time oscilloscope: The device combines the advantages of a sampling oscilloscope with the trigger capability and data acquisition of a real-time oscilloscope. This enables precise measurements and the analysis of pre- and post-trigger events.
  • Signal integrity analyses: Functions such as pulse and timing measurements, jitter analysis as well as RZ and NRZ eye diagrams are available as standard.
  • Mask tests: 175 ready-made mask tests enable simple pre-conformance tests for bus systems such as Ethernet, USB or PCI Express. User-defined mask tests can be created in just a few minutes.

The PicoScope 9404A-25 complements the existing models in the series with 5 GHz (PQ181 / PQ211) and 16 GHz (PQ182 / PQ212) bandwidth to meet the needs of a wide range of applications. It also supports ActiveX remote control via the Windows COM interface. This facilitates integration into customer-specific systems and enables a seamless transition from laboratory applications to the production line.

The provision of programming examples in VB.NET, MATLAB, LabVIEW, as well as support for JavaScript and C offer developers the greatest possible freedom in implementation. The transitions between development and production are considerably simplified by this flexibility.

This version includes an integrated clock recovery module. If you do not require integrated clock recovery, we recommend the PQ355 variant.
