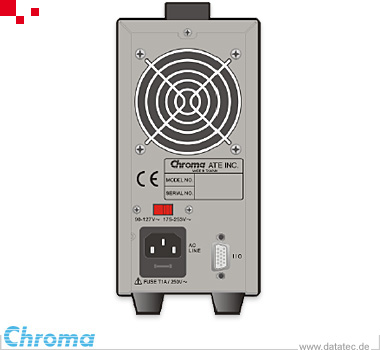

Chroma 63600-1 | Electronic load mainframe 1-slot for 1 load module 636xx series, without interface

Manufacturer number: 63600-1

Chroma 63600-1
Chroma 63600-1
Chroma 63600-1
Chroma 63600-1

Delivery time upon request

€620.00

plus VAT. €737.80 VAT plus shipping costs

You would like to request an offer? Please add items to the shopping cart and request an offer there.
Highlights Description Related Articles

Chroma 63600-1 | 1-slot mainframe for programmable DC replacement loads.

  • Mainframe, 1 solt width
  • Max. Output with modules: 100 W x 2 (dual), 300 W & 400 W
  • Voltage range: up to 600 V
  • 0.4 V at 80 A (typical) operating characteristic at low voltage
  • Flexible CC, CR, CV and CP modes of operation
  • CZ (Constant Impedance) mode for capacitive load simulation when switching on
  • Parallel mode for high-current and high-performance applications up to 2 kW
  • Synchronous multi-channel control
  • Automatic frequency swing up to 50 kHz
  • Transient reaction simulation of the power supply load in real time and measurement of Vpk +/-
  • User-programmable 100 processes for front panel input status for user-friendly operation
  • Precise voltage and current measurement
  • Precise digitization measurement / data acquisition at high speed
  • Measurement of voltage, current and Pmax for OCP / OLP testing
  • Timing measurement for batteries
  • Short circuit simulation
  • Self-test when switching on
  • Comprehensive protection: OC, OP, OT protection and OV alarm
  • Dimensions: Height: 177 mm x width: 70.22 mm x depth: 554.9 mm
  • Empty weight: 7.5 kg
  • 2 year guarantee

Independant Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Detaildescription

63600-1 | Electronic load mainframe 1-slot for 1 load module 636xx series, without interface

The loads are designed for testing power supplies, DC / DC converters, chargers, batteries, adapters and high-performance electronic components. They are ideal for research, development, production and incoming goods inspections. They use DSP technology to simulate non-linear loads with a CZ (Constant Impedance) operating mode, so that realistic load behavior can be represented.

The series can draw its nominal current at a very low voltage. This special function guarantees optimal load performance for modern point-of-load conditions and fuel cells. Real-time measurements of voltage and current are integrated in each module with a 16-bit precision measuring circuit with three current ranges.
