Chauvin Arnoux P01120570 | MA200 current clamp, 0.5 - 300 A BNC, 5 Hz - 1 MHz, ø = 4.5 cm

Manufacturer number: P01120570

P01120570
Ready to ship in 5 to 10 business days

€546.00

plus VAT. €649.74 VAT plus shipping costs

or choose one of the following options:
Request a quote Product is already in cart
Product downloads Product inquiries Request education-price
Highlights Technical Data Documents / Downloads Description Related Articles

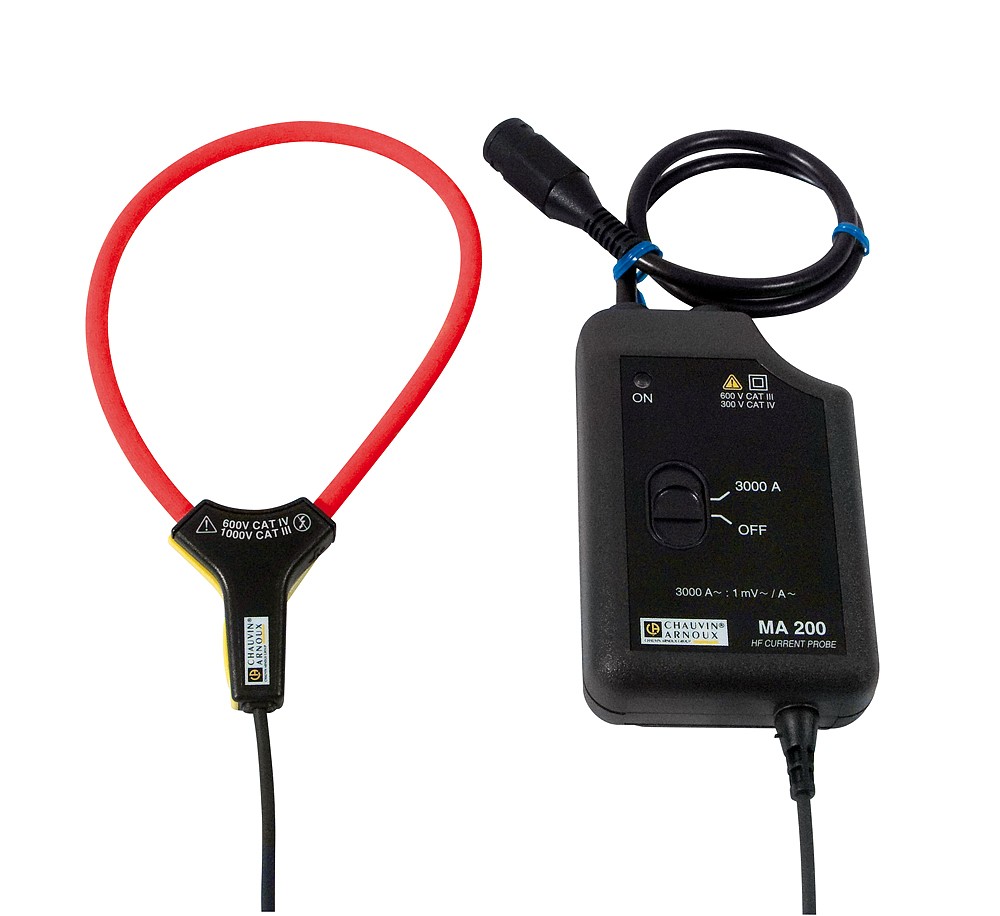

Current transformer MA200 with 170mm loop by Chauvin Arnoux.

  • Loop length: 170 mm
  • Fast closing and opening system
  • Enclosure Ø: Ø 45 mm
  • Converter ratio (mV / A): 100 mV / A - 10 mV / A
  • Measuring range: 0.5 A - 30 A / 0.5 A - 300 A
  • Bandwidth (-3 dB) 5 Hz to 1 MHz
  • Connection: BNC connector
  • Power supply: 9V battery
  • Dimensions housing: 140 x 64 x 28mm
  • Weight: 250gr.
  • Integrated connection cable: 2m (loop> housing)

Technical Data

Documents & Downloads

Brochure
pdf | 0.72 MB
Datasheet
pdf | 2.53 MB
Brochure
pdf | 0.72 MB
Datasheet
pdf | 2.53 MB

Description

P01120570 | MA200 current clamp, 0.5 - 300 A BNC, 5 Hz - 1 MHz, ø = 4.5 cm

The insulated flexible current transformers MA200 have a BNC connection and are therefore particularly suitable for oscilloscopes. They offer a high pass bandwidth and also reliably display transient signals. The MA200 can be used, for example, to display control signals, thyristor trigger signals or output currents from electronic power supply units.

The flexible current transformers are based on the principle of the Rogowski coil in connection with measuring electronics. Since no magnetic circuits are involved, the current transformers are light and flexible and there are no saturation phenomena, ie no heating. Therefore, these current transformers are very linear and only produce small phase shifts.

Accessoires

P01102087
Chauvin Arnoux
P01102087
Mains adapter for Miniflex MA200 current transformers
Delivery time upon request
€176.00
GDS-2104E
Series
Series
GW Instek
GDS-2104E
Oscilloscope, 4 channels, 100 MHz, 1 GSa / s, 120,000 wfm / s, 10 MPts, USB, LAN
Delivery time upon request
€1,379.00
GDS-2204E
Series
Series
GW Instek
GDS-2204E
Oscilloscope, 4 channels, 200 MHz, 1 GSa / s, 120,000 wfm / s, 10 MPts, USB, LAN
Delivery time upon request
€1,416.00
GDS-2102E
Series
Series
GW Instek

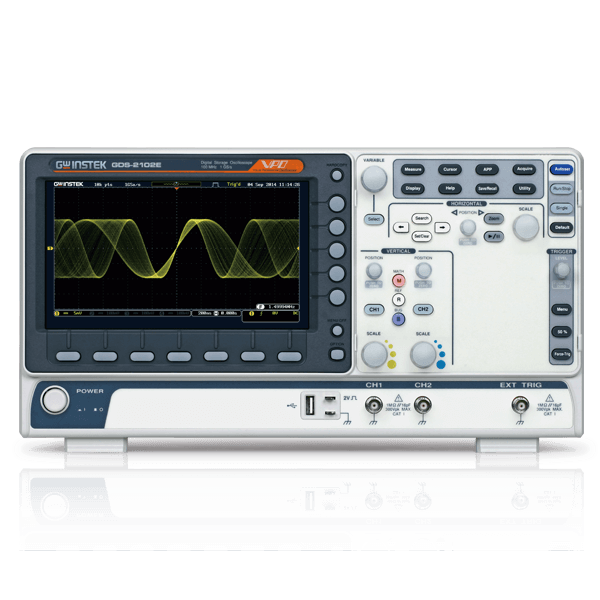

GDS-2102E
