B&K Precision HVL150250 | Electronic DC load, High Voltage, 150 V, 250 A, 2 kW, USB, RS-232, LAN, GPIB, HVL series

Manufacturer number: HVL150250

HVL150250
HVL150250
HVL150250
New
Series
Delivery time upon request

€4,800.00

plus VAT. €5,712.00 VAT plus shipping costs

or choose one of the following options:
Request a quote Product is already in cart
Product downloads Product inquiries Request education-price
Highlights Technical Data Documents / Downloads Description Related Articles

B&K Precision HVL150250 | Electronic DC load, high voltage, 150 V, 250 A, 2 kW, USB, RS-232, LAN, GPIB, HVL series.

Technical Data

Documents & Downloads

Datasheet
HVL600150
pdf | 2.88 MB

Description

HVL150250 | Electronic DC load, High Voltage, 150 V, 250 A, 2 kW, USB, RS-232, LAN, GPIB, HVL series

The HVL series from B&K Precision is a high-performance line of high-voltage DC electronic loads designed specifically for demanding test applications. With a maximum power output of up to 6 kW and operating voltages of up to 1000 V, this series offers high power density and versatility. Thanks to support for multiple operating modes, including CC (Constant Current), CV (Constant Voltage), CR (Constant Resistance), and CW (Constant Power), the HVL series is suitable for a wide range of test scenarios.

Typical applications:

  • Testing of high-voltage batteries, particularly for electric vehicles (EVs)
  • Testing of on-board chargers and charging stations
  • Evaluation of DC-DC converters and high-power power supplies
  • Testing of photovoltaic systems and fuel cell systems
  • Simulation of dynamic load conditions in research and development

The HVL150250 model is the 2-kW variant of the HVL series and features a maximum input voltage of 150 V and a very high maximum current of 250 A. This makes this model particularly suitable for applications with low voltages and high currents, for example in the field of battery testing or high-current power supplies.

Differences from other models in the HVL series:

  • HVL150250: 150 V / 250 A / 2 kW – optimized for low voltages and very high currents
  • HVL600150: 600 V / 150 A / 3 kW – higher voltage range with reduced current
  • HVL80075: 800 V / 75 A / 3 kW – suitable for high-voltage applications
  • HVL100025: 1000 V / 25 A / 3 kW – maximum voltage at low current
  • HVL600300, HVL800150, HVL100050: up to 6 kW power for particularly demanding applications
  • All models can be configured for parallel operation of up to 10 units to achieve a total power output of up to 60 kW.

The HVL150250 model is an ideal solution for applications with high current requirements at low voltages. Thanks to its flexible programmability, high precision, and extensive protection functions, it is ideal for professional test systems in research, development, and production.

Alternate products

Alternate products

HVL100025
Series
Series
B&K Precision
HVL100025
Electronic DC Load, High-Voltage, 1000 V, 25 A, 3 KW, USB, RS-232, LAN, GPIB, HVL Series
Delivery time upon request
€8,200.00
HVL100050
Series
Series
B&K Precision

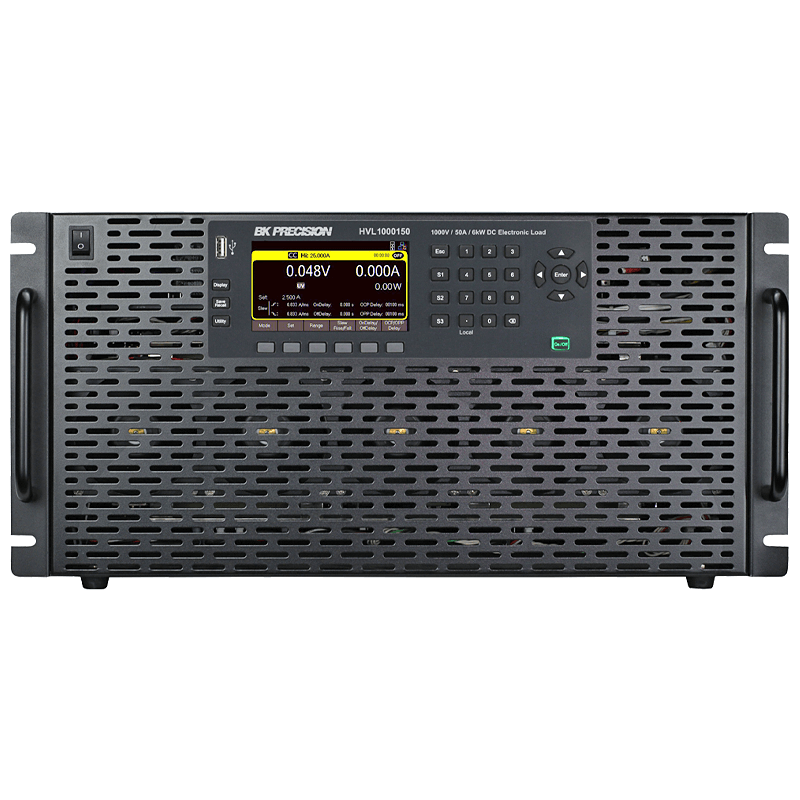

HVL100050
Electronic DC Load, High-Voltage, 1000 V, 50 A, 6 KW, USB, RS-232, LAN, GPIB, HVL Series
Delivery time upon request
€13,200.00
HVL600150
Series
Series
B&K Precision

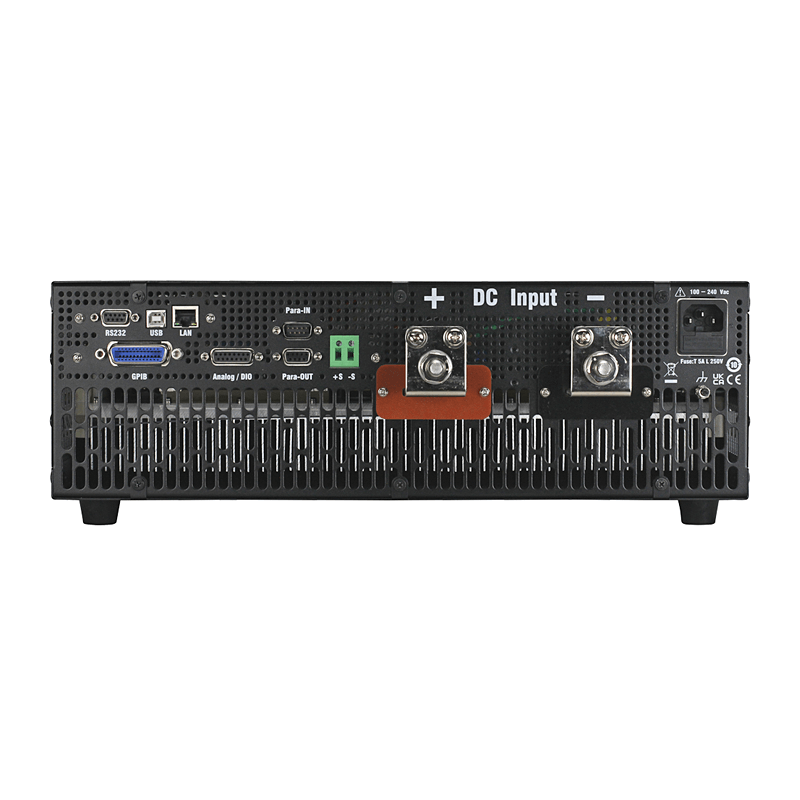

HVL600150
Electronic DC Load, High-Voltage, 600 V, 150 A, 3 KW, USB, RS-232, LAN, GPIB, HVL Series
Delivery time upon request
€8,200.00
HVL600300
Series
Series
B&K Precision

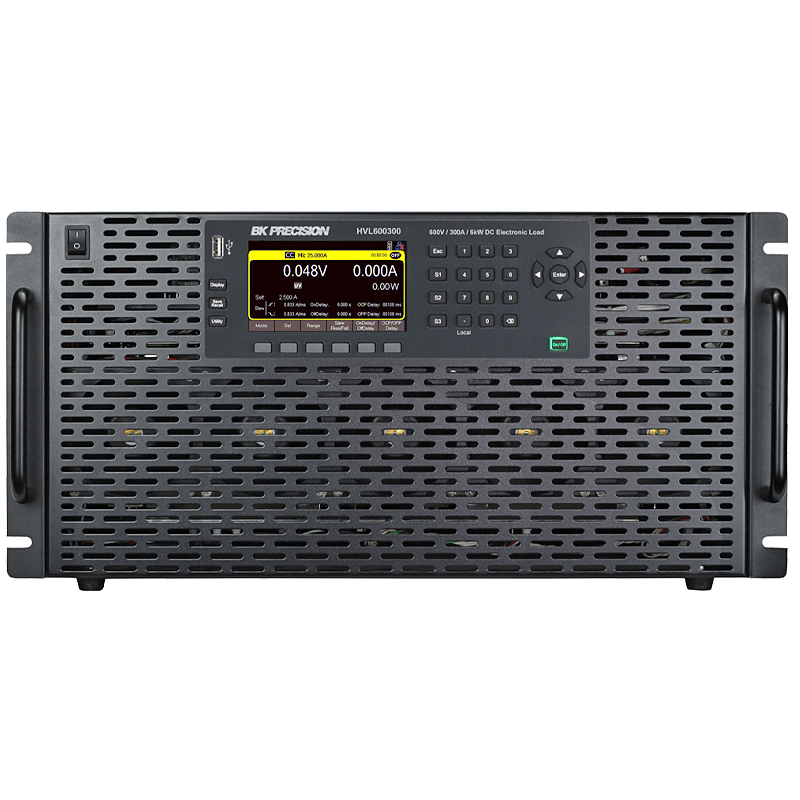

HVL600300
Electronic DC Load, High-Voltage, 600 V, 300 A, 6 kW, USB, RS-232, LAN, GPIB, HVL series
Delivery time upon request
€13,200.00
HVL800150
Series
Series
B&K Precision

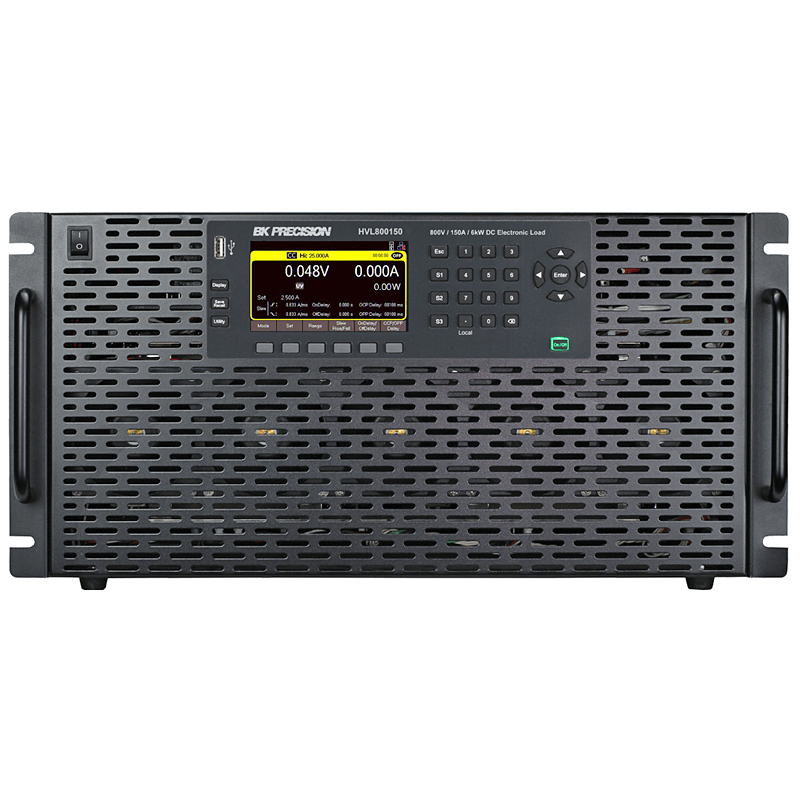

HVL800150
Electronic DC Load, High-Voltage, 800 V, 150 A, 6 kW, USB, RS-232, LAN, GPIB, HVL series
Delivery time upon request
€13,200.00
HVL80075
Series
Series
B&K Precision

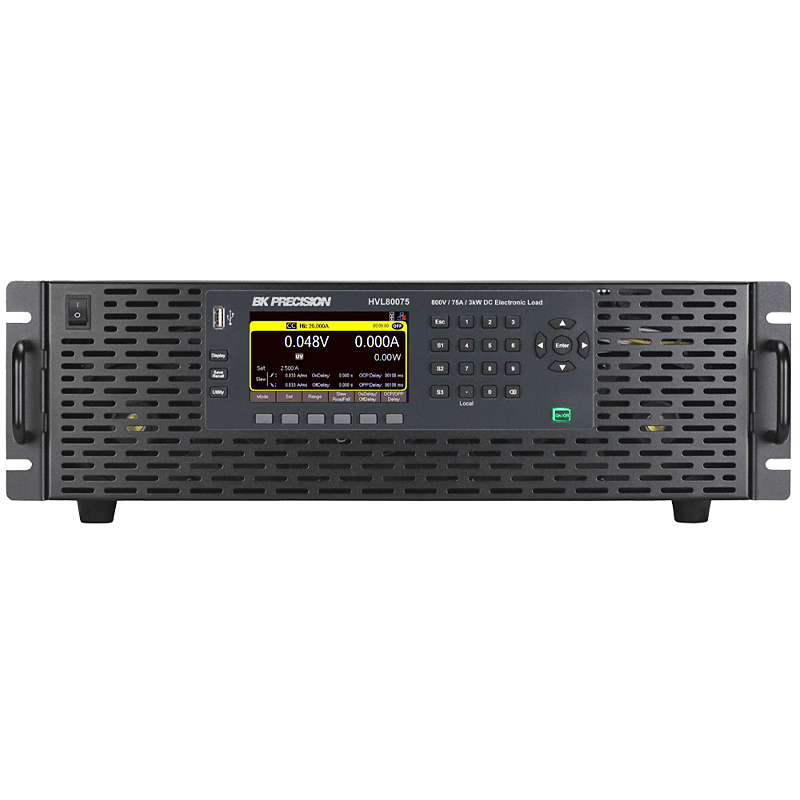

HVL80075
