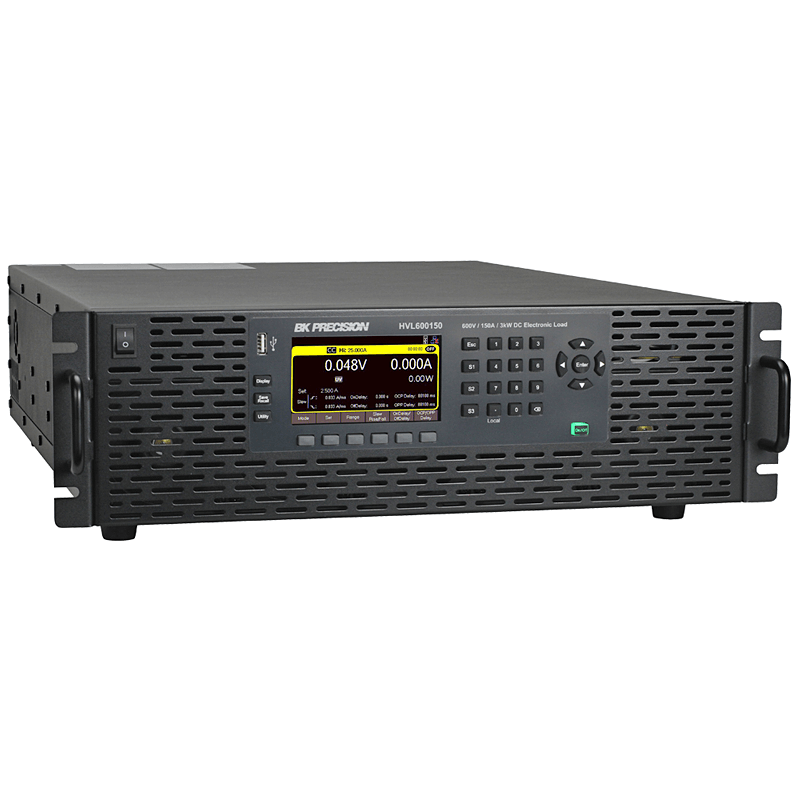

B&K Precision HVL600150 | Electronic DC Load, High-Voltage, 600 V, 150 A, 3 KW, USB, RS-232, LAN, GPIB, HVL Series

Manufacturer number: HVL600150

HVL600150
HVL600150
HVL600150
HVL600150
HVL600150
HVL600150
Delivery time upon request

€8,200.00

plus VAT. €9,758.00 VAT plus shipping costs

or choose one of the following options:
Request a quote Product is already in cart
Product downloads Product inquiries Request education-price
Highlights Technical Data Documents / Downloads Description Related Articles

B&K Precision HVL600150 | Electronic DC load, high-voltage, 600 V, 150 A, 3 kW, USB, RS-232, LAN, GPIB, HVL series

Produktmerkmale:

  • Maximale Eingangsspannung: 600 V
  • Maximaler Eingangsstrom: 150 A
  • Maximale Eingangsleistung: 3 kW
  • Betriebsmodi: CC (Konstanter Strom), CV (Konstante Spannung), CR (Konstanter Widerstand), CW (Konstante Leistung)
  • Minimale Betriebsspannung: 3,5 V
  • Listenmodus-Programmierung: Bis zu 100 programmierbare Schritte, 10 Programme speicherbar
  • Transient-Operation: Unterstützt kontinuierliche, Puls- und Umschaltmodi
  • Programmierbare Schutzfunktionen: OVP (Überspannungsschutz), OCP (Überstromschutz), OPP (Überleistungsschutz), UVL (Unterspannungssperre)
  • Direkte Datenaufzeichnung: Speicherung von Spannungs- und Stromdaten auf USB-Stick
  • PC-Steuerung: USB, LAN, RS232, GPIB (SCPI-kompatibel)
  • Anzeige: 4,3" LCD-Farbdisplay mit grafischer Darstellung von Messwerten
  • Formfaktor: 3U Rack-Montage
  • Abmessungen (BxHxT): 428,4 x 133 x 665 mm
  • Gewicht: 22 kg

Technical Data

Documents & Downloads

Datasheet
pdf | 3.21 MB

Description

HVL600150 | Electronic DC Load, High-Voltage, 600 V, 150 A, 3 KW, USB, RS-232, LAN, GPIB, HVL Series

The HVL series from B&K Precision consists of state-of-the-art DC electronic loads characterized by high power density and a variety of operating modes. With a maximum output of up to 6 kW and voltages of up to 1000 V, this series is ideal for demanding test environments. The devices are optimized for use in automated test systems (ATE) and support various dynamic load conditions for evaluating DC-DC converters, batteries, chargers, photovoltaic systems and other high-power DC sources.

Typical areas of application:

  • Testing high-voltage batteries, especially for electric vehicles (EV)
  • Testing of on-board chargers and charging stations
  • Simulation and analysis of grid and load conditions
  • Testing of DC power supplies and converters
  • Testing of solar and fuel cells

The HVL600150 model offers a maximum input voltage of 600 V and a maximum current of 150 A, with a total power consumption of up to 3 kW. It combines a compact design with high performance and is particularly suitable for testing high-voltage sources with medium current requirements.

Differences to other variants in the HVL series:

  • The HVL600150 model offers 600 V / 150 A with a maximum power of 3 kW.
  • The HVL80075 model supports 800 V / 75 A with the same power.
  • The HVL100025 model offers 1000 V / 25 A with 3 kW power.
  • The HVL600300, HVL800150 and HVL100050 models deliver a higher power of 6 kW.
  • All models are suitable for parallel operation of up to 10 devices to increase the total output.

The HVL600150 model is a powerful and versatile solution for high-voltage testing in research, development and industrial applications. With its high precision, extensive protection functions and flexible remote control capability, it is ideal for professional test and laboratory facilities.
