2194 | Oscilloscope, DSO, 100 MHz, 4 Channel, 1 GSa/s, 14 MPts, USB, LAN

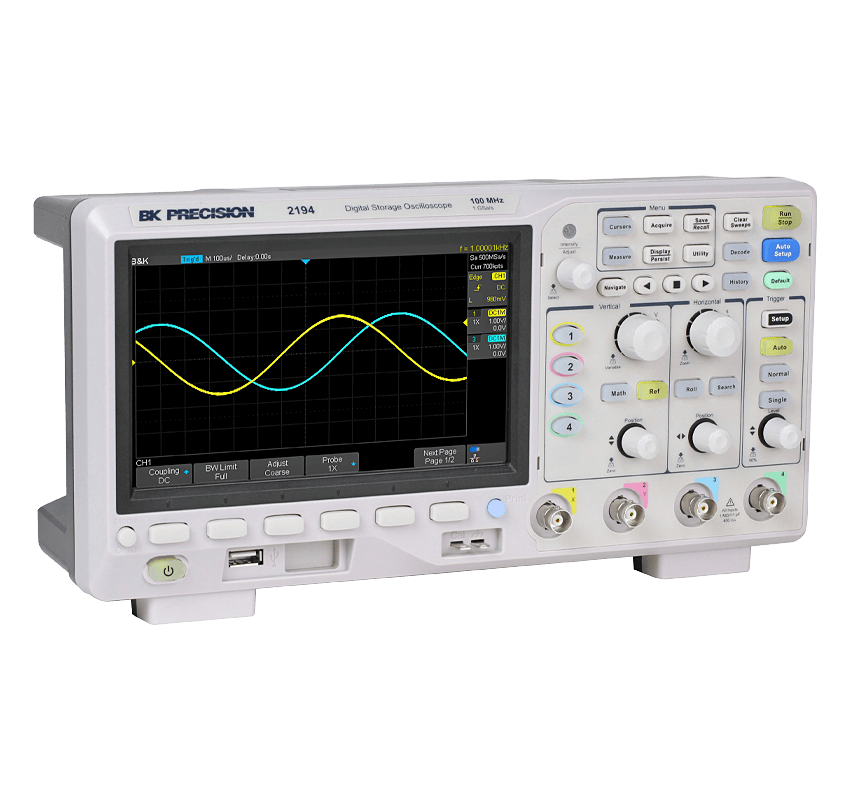

The B&K Precision Model 2194 is a versatile, powerful digital storage oscilloscope with 100 MHz bandwidth and 4 analog channels. It is ideal for educational institutions, ambitious hobby electronics engineers and professional applications in development and fault analysis. With its high sampling rate of up to 1 GSa/s, a deep memory of 14 Mpts and extensive trigger and analysis functionality, it delivers precise measurement results even with complex signals.

The device impresses with a user-friendly user interface on a 7" TFT LCD with color temperature mode and 256 intensity levels. Functions such as serial bus decoding (including I2C, SPI, UART, CAN, LIN), FFT spectral analysis, automatic measurements for 38 parameters and extensive memory options make the oscilloscope a reliable tool in the laboratory or workshop.

Possible applications:

  • Troubleshooting in digital and analog circuits
  • Serial data analysis (I2C, SPI, UART, CAN, LIN)
  • Real-time and frequency domain signal analysis (FFT)
  • Long-term monitoring with mask test function
  • Training purposes and technical education

Product features:

  • Bandwidth: 100 MHz
  • Channels: 4 analog channels
  • Max. Sampling rate: 1 GSa/s (for single channel)
  • Memory depth: 14 Mpts (single channel)
  • Screen: 7" TFT-LCD, 800 x 480 pixels, 256 intensity levels
  • Trigger types: Edge, Slope, Pulse Width, Serial, Window, Runt and many more
  • .
  • Waveform update rate: up to 400.000 waveforms/s (sequence mode)
  • Automatic measurements: 38 parameters + statistical functions
  • Mathematical functions: Add, subtract, multiply, divide, FFT, integrate, differentiate, square root

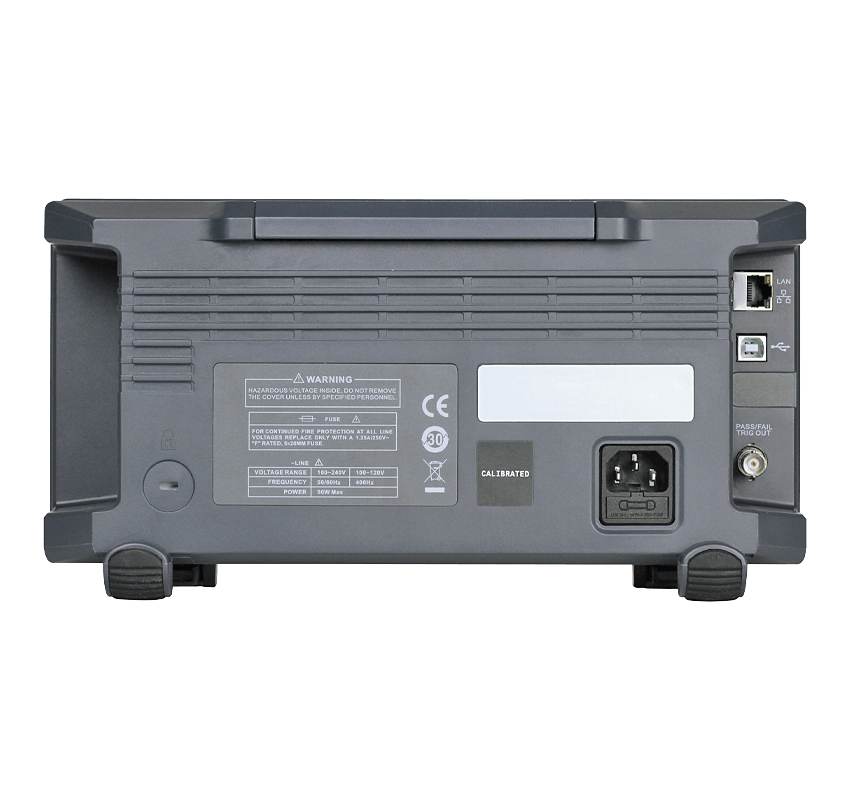

  • Interfaces: USB host/device, LAN, pass/fail output
  • Dimensions: 312 × 151 × 132.6 mm
  • Weight: 2.6 kg
