Teledyne FLIR A6301 | MWIR Thermal Imaging Camera (3.4 - 5.1 μm), 640 x 512 px, f/2.5, FOV 21.7°, 25 mm lens, -20 - 200°C, 15 mK (29433-207)

Manufacturer number: 29433-207

A6301
A6301
A6301
A6301
A6301
A6301
A6301
A6301
A6301
A6301
A6301
A6301
Delivery time upon request

On Request

or choose one of the following options:
Request a quote Product is already in cart
Product downloads Product inquiries Request education-price Share
Highlights Documents / Downloads Description Scope Related Articles

Teledyne Flir A6301 | MWIR thermal imaging camera (3.4 - 5.1 μm), 640 x 512 px, f/2.5, FOV 21.7°, 25 mm lens, -20 - 200°C, 15 mK, Ethernet, GigE-Vision, Genicam, REST API (29433-207).

  • cooled HOT T2SLS camera for process monitoring
  • long-life cooler - 27.000 operating hours
  • Operating temperature: -20 °C to 50 °C
  • Protection class IP50
  • Input for synchronization
  • Quick integration through standard protocols
  • 2x opto-isolated digital inputs
  • 3x opto-isolated digital outputs (0-48VDC, max 350mA
  • 1x dedicated error output
  • Dimensions: (L x W x H): 267 x 76 x 92 mm (incl. lens)
  • Weight: 1.77 kg
  • Power supply PoE (class 2, 30W)

Documents & Downloads

Overview
pdf | 0.58 MB
Userguide
pdf | 2.54 MB

Description

A6301 | MWIR Thermal Imaging Camera (3.4 - 5.1 μm), 640 x 512 px, f/2.5, FOV 21.7°, 25 mm lens, -20 - 200°C, 15 mK (29433-207)

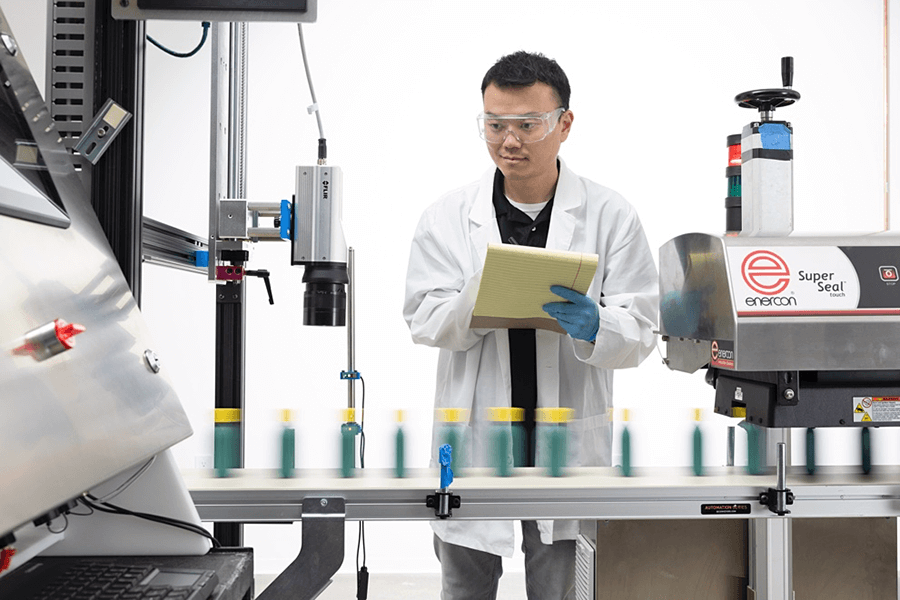

The FLIR A6301 is a highly sensitive, cooled Mid-Wave Infrared (MWIR) thermal imaging camera for applications in process monitoring, quality assurance and automation that can be used around the clock. Designed specifically for the needs of the manufacturing industry, this camera enables precise temperature measurement of moving objects, making production lines more efficient and improving product quality.

With the ability to detect even the smallest temperature differences, the A6301 is ideal for demanding machine vision applications that aim to increase throughput, reduce production interruptions and minimize downtime. The innovative linear cooling technology significantly reduces maintenance requirements, making the camera attractive for demanding 24/7 production environments.

With standardized interfaces and protocols (GEV and GenICam), integration into existing systems is simple and straightforward. The A6301 is the most compact cooled camera commercially available from FLIR and can be easily integrated into existing systems without size or weight constraints. Combined with other sensors and advanced machine learning technology, the FLIR A6301 supports more efficient and smarter process design.

Available models:

  • 29433-206: A6301 MWIR (3.4 - 5.1 μm), 640x512, f/2.5, GigE, 17 mm lens, Calibrated (-20 to 200 °C)
  • 29433-207: A6301 MWIR (3.4 - 5.1 μm), 640x512, f/2.5, GigE, 25 mm lens, Calibrated (-20 to 200 °C)
  • 29433-208: A6301 MWIR (3.4 - 5.1 μm), 640x512, f/2.5, GigE, 50 mm objective, Calibrated (-20 to 200 °C)
  • 29433-209: A6301 MWIR (3.4 - 5.1 μm), 640x512, f/2.5, Macro objective, Calibrated (-20 to 200 °C)

Lieferumfang

  • FLIR MWIR camera with 25 mm lens, 21.7° FOV
  • M12 to RJ45F cable (0.3 m)
  • Quick start guide
  • Calibration certificate
