Please note: The RTO6 oscilloscope presented here is only the basic device . Please be sure to select a corresponding bandwidth option.
With the newly developed RTO6 oscilloscope, Rohde & Schwarz is taking its successful RTO series to a completely new level. During the development of the RTO6, the customer feedback on the successful RTE1000 / RTO2000 oscilloscopes was heard to an unprecedented extent. The RTO6 is therefore precisely designed and optimized for user feedback:
- Large 15.6-inch touchscreen : A larger display was requested by many customers in order to enlarge the viewing area and see more signal details.
- New user interface : The new user interface of the RTO6 simplifies measurement processes and enables significantly less complicated operation, for example through consistent work processes, compressed menus and a fresh and modern look and feel.
- Zone trigger as a standard function : The zone trigger from R&S is unique because it is the only trigger of its kind that supports the time and frequency domains.
- Larger standard memory: The larger standard memory of the RTO6 enables long and / or multiple sequential acquisitions and reduces the need for costly memory expansion.
- Trigger & decode packages : Revised R&S option structure for the RTO6 and created new, sensibly combined trigger & decode packages. This simplifies the selection of the right package without restricting the application options and functionalities.
With the RTO6, too, Rohde & Schwarz continues to rely on the proven technology components that have already distinguished the RTO oscilloscopes in the past:
- Ultimate measurement speed - thanks to its own ASIC and optimized signal processing:

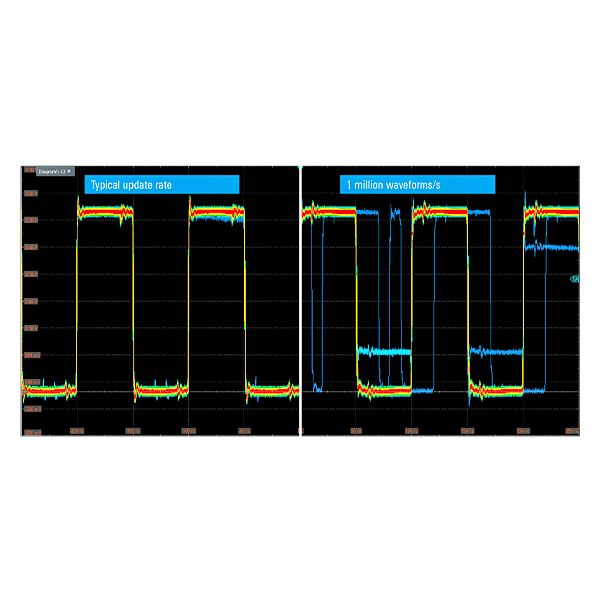

- 1 million waveforms per second - to find signal anomalies quickly
- Fast-reacting device control - even with active measurements, histograms, masks, etc.
- Excellent signal fidelity - thanks to the low-noise front end, flat frequency response & single-core ADC
- o Excellent front-end components: symmetrical BNC inputs, excellent channel-to-channel isolation - resulting in low-noise behavior and minimized crosstalk
- Flat frequency response - for accurate measurement results regardless of the frequency components of the signal
- Ultra-wide SFDR (spurious-free dynamic range) - for accurate measurements
- Up to 9.4 ENOB (HD mode) - for extremely competitive measurement performance
- Digital trigger - for unique trigger options
- Highest trigger sensitivity - with full device bandwidth
- Triggering on the smallest signal details - with up to 16 bit resolution
- HD mode - unique digital low pass filter
- Up to 16-bit resolution - for sharper waveforms to identify the smallest details
- adjustable bandwidth - to adapt to the characteristics of the applied signal
- Outstanding FFT skills
- Multi-channel spectrum analysis - for the parallel analysis of different signals
- Zone trigger in the frequency domain - for visual trigger zone in the FFT signal
- Broad application coverage - to address new and complex problems
- Wide range of basic analysis functions - with a rich toolkit for troubleshooting
- Application-specific software - for current and future requirements
- Trigger & decoding packages - for debugging communication interfaces
- Conformity test - to validate your design
