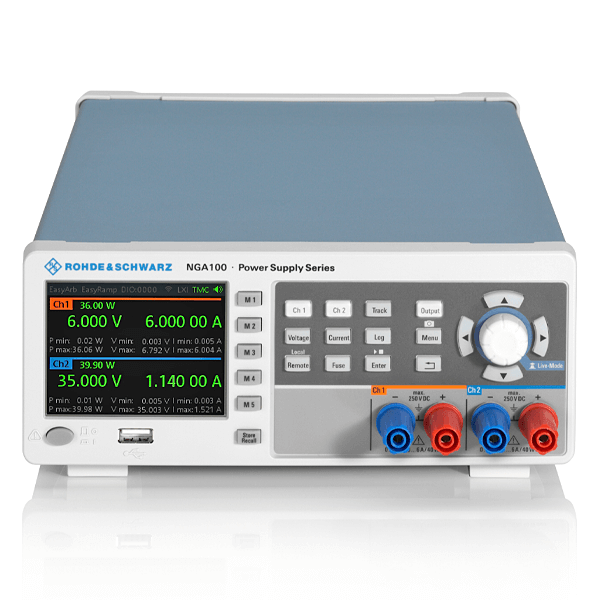

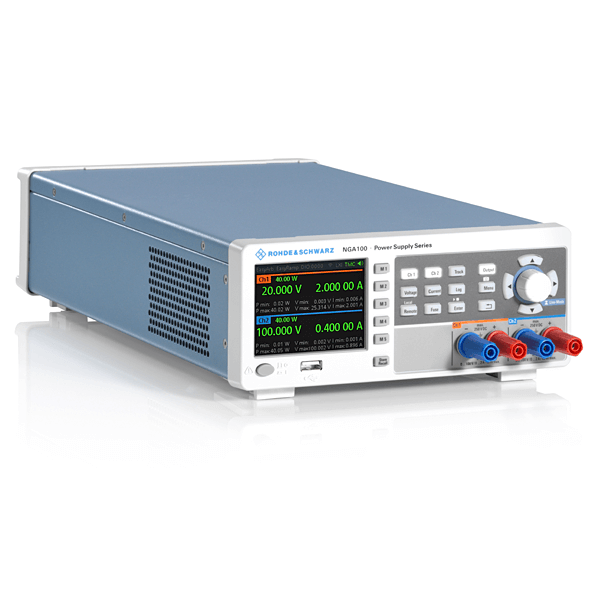

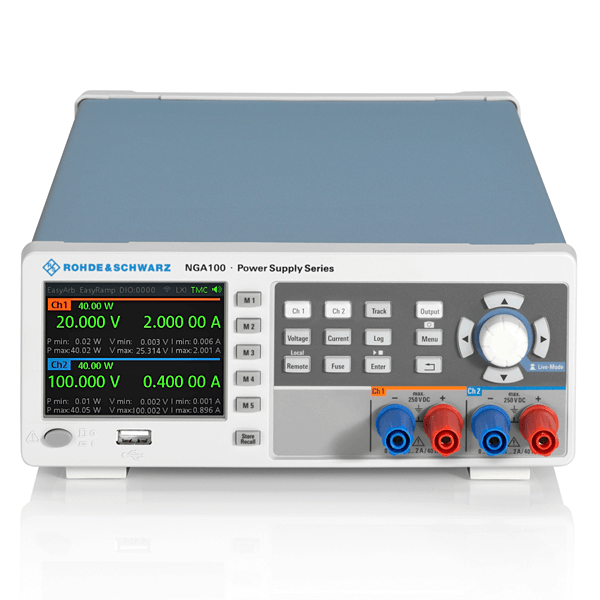

Rohde&Schwarz NGA142 | Power supply, DC, 2 channel, 100 V / 2 A, 80 W, linear, arbitrary, USB, LAN (5601.8002.05)

Manufacturer number: 5601.8002.05

NGA142
NGA142
NGA142
NGA142
NGA142
NGA142
NGA142
NGA142
NGA142
NGA142
Delivery time upon request

€1,830.00

plus VAT. €2,177.70 VAT plus shipping costs

or choose one of the following options:
Request a quote Product is already in cart
Product downloads Product inquiries Request education-price % Additional offers for this product
Highlights Technical Data Documents / Downloads Description Related Articles

Rohde & Schwarz 5601.8002.05 | NGA142, power supply unit, DC, 2 channel, 100 V / 2 A, 80 W, linear, arbitrary, USB, LAN, NGA100 series.

  • Display: 3.5 “QVGA
  • Channels: 2
  • Total output power: 80 W.
  • Output voltage per channel: 0 V… 100 V
  • Max. Output current per channel: 2 A
  • Dimensions (H x W x D): 97 mm x 222 mm x 448 mm
  • Weight: 7.3 kg

Technical Data

Documents & Downloads

Datasheet
pdf | 1.97 MB
Userguide
pdf | 1.93 MB
Start guide
pdf | 0.86 MB

Description

NGA142 | Power supply, DC, 2 channel, 100 V / 2 A, 80 W, linear, arbitrary, USB, LAN (5601.8002.05)

The power supplies of the Rohde & Schwarz NGA100 series are linear, compact and easy to use. All models have excellent readback accuracy with a low current range for demanding measurements.

Functions such as data logging, arbitrary signals, integrated statistics and remote sensing make the devices ideal for various test bench applications. Equipped with various remote interfaces, including USB and Ethernet, the R&S NGA100 power supplies are also ideal for automated tests.

Expand the voltage and current range and achieve up to 200 V with the R&S NGA142 in serial mode and up to 12 A with the R&S NGA102 in parallel mode.

The Rohde & Schwarz NGA100 series power supplies are available in four versions. In addition to the NGA142 variant presented here with 2 outputs, max. 80 W output power, max. 100 V / 2 A per output, max. 200 V serial / max. 4 A parallel , you also receive the variant NGA101 (1 output, max. 40 W output power, max. 35 V / 6 A), NGA141 (1 output, max. 40 W output power, max. 100 V / 2 A) and NGA102 (2 outputs, max. 80 W output power, max. 35 V / 6 A per output, max. 70 V in series / max. 12 A in parallel).
