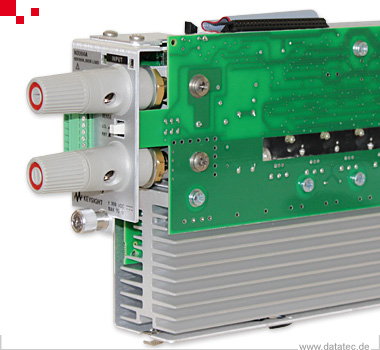

Keysight N3303A | DC load module for N330xA 240V / 10A / 250W

Manufacturer number: N3303A

N3303A
N3303A
N3303A
N3303A
N3303A
N3303A
N3303A
N3303A
Delivery time upon request

€3,563.00

plus VAT. €4,239.97 VAT plus shipping costs

or choose one of the following options:
Request a quote Product is already in cart
Product downloads Product inquiries Request education-price % Additional offers for this product
Highlights Technical Data Documents / Downloads Description Scope Related Articles

Programmable 1-channel DC load module N3303A for Keysight (formerly Agilent's electronic measurement technology) DC load series N3300A with an input 0-240V / 0-10A.

  • 0 to 10 A input current
  • Input voltage 0 to 240 V.
  • Maximum power 250 W.
  • Accuracy constant current: 0.1% + 7.5 mA
  • Accuracy constant voltage: 0.1% + 40 mV
  • Residual ripple current 1 mArms
  • Residual ripple voltage 12 mVrms
  • Constant current operation (CC)
  • Constant voltage operation (CV)
  • Constant resistance operation (CR)
  • Minimum voltage at maximum load current 1.2 V
  • Remote sensing (sense) possible
  • Possibility of reading back current and voltage
  • stable operation down to 0 V possible
  • Surge protection (OVP)
  • Overcurrent protection (OCP)
  • Overpower protection (OPP)
  • Overtemperature protection (OTP)
  • Parallel operation of the modules for higher current possible
  • Sequence operation possible
  • Analogue interface for remote control including trigger input
  • Load connections: rotary clamp connection
  • GPIB and RS-232 interface for PC remote control
  • compatible with DC load basic device N3300A and N3301A
  • Size / space requirement: one slot in the basic device N3300A and N3301A
  • Weight: 2.7 kg

Technical Data

Documents & Downloads

Datasheet
pdf | 1.70 MB

Description

N3303A | DC load module for N330xA 240V / 10A / 250W

The DC load modules of the N3300 series are suitable for universal use in many applications such as the testing of power supplies. Thanks to the measuring system built into the DC load as standard, there is no need to use an external DMM to monitor the measured values. Thanks to the modular structure, the DC load can be configured individually.

Lieferumfang

  • DC load module N3303A
  • Analog interface connector
  • documentation

Available options:

  • N3303A-UJ1 load connections 8mm screw connection (only possible when purchasing a new N3303A)
