Keysight E4980B | Precision LCR Meter / Component Tester, 20 Hz - 2 MHz

Manufacturer number: E4980B

E4980B
E4980B
E4980B
E4980B
E4980B
E4980B
Delivery time upon request

€25,625.00

plus VAT. €30,493.75 VAT plus shipping costs

or choose one of the following options:
Request a quote Product is already in cart
Product downloads Product inquiries Request education-price
Highlights Technical Data Documents / Downloads Description Related Articles

Keysight E4980B | Precision LCR meter / component tester, test frequency 20 Hz - 2 MHz.

Technical Data

Documents & Downloads

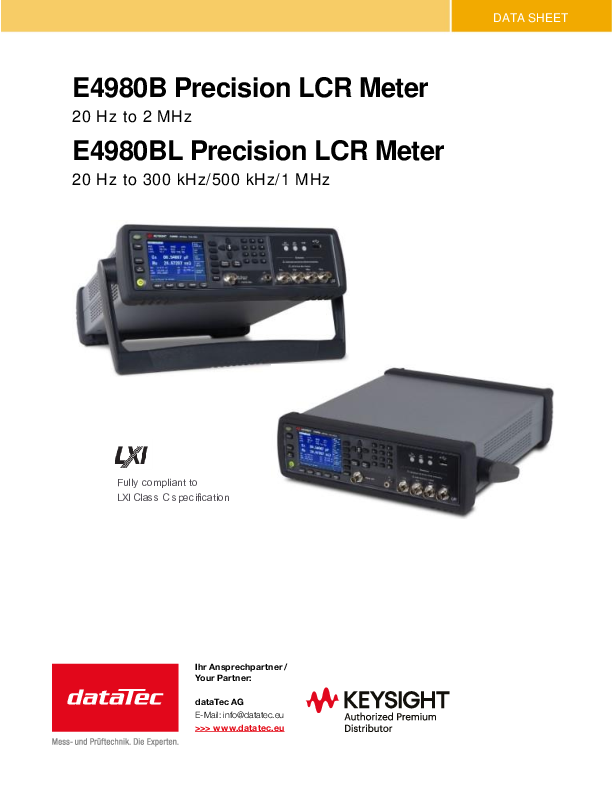

Datasheet
pdf | 1.55 MB
Userguide
pdf | 4.44 MB

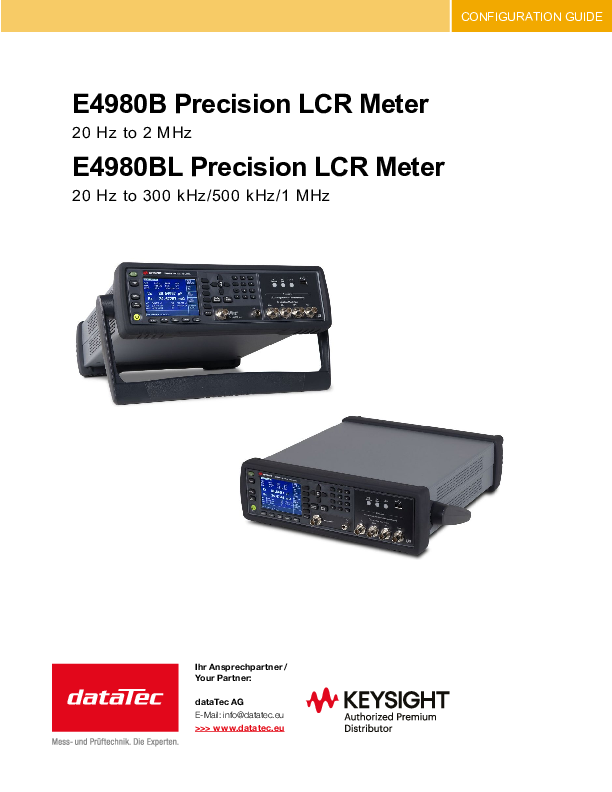

Configuration guide
pdf | 0.76 MB
Datasheet
pdf | 1.55 MB
Userguide
pdf | 4.44 MB
Configuration guide
pdf | 0.76 MB

Description

E4980B | Precision LCR Meter / Component Tester, 20 Hz - 2 MHz

The Keysight E4980B precision LCR component tester combines precise accuracy, speed and versatility for a wide range of applications in research and development (R&D) and manufacturing.

With the E4980B, the successor to the successful E4980A, you can determine the relative permeability and relative dielectric constant of a wide variety of materials or measure the key electrical parameters such as resistance, capacitance and inductance on components - with maximum precision in both the high and low impedance range. Corresponding measurement recordings, built-in power supply units that supply the test object with voltage and current, and built-in multimeter functions make work easier and reduce the measurement effort.

The test frequencies of this variant of the LCR meter range from 20 Hz to 2 MHz. With the E4980BL variant, you can select the test frequency range according to your requirements.

Thanks to the clear display, operation is very simple and intuitive. The versatile LAN, USB and GPIB PC connectivity increases your design and test productivity.

Product features:

  • Frequency: 20 Hz to 2 MHz, with 4-digit resolution in each range
  • Baseline accuracy: 0.05% basic accuracy with precise measurement repeatability at low and high impedance
  • DC bias: DC bias increase (Keysight option 001)
  • Auto-level control
  • DC resistance
