Keysight E36441A | Power supply unit, DC, 4 channel, linear, 400 W, 32 V, 10 A, 160 W per channel

Manufacturer number: E36441A

E36441A
E36441A
E36441A
E36441A
E36441A
E36441A
E36441A
E36441A
E36441A
E36441A
E36441A
E36441A
E36441A
E36441A
E36441A
E36441A
E36441A
E36441A
E36441A
E36441A
Delivery time upon request

€2,988.00

plus VAT. €3,555.72 VAT plus shipping costs

or choose one of the following options:
Request a quote Product is already in cart
Product downloads Product inquiries
Highlights Documents / Downloads Description

Keysight E36441A | Power supply unit, DC, 4 channel, linear, 400 W, 32 V, 10 A, 160 W per channel

Product features:

  • Total power: 400 W
  • Outputs: 4 independent channels
  • Power per channel: 160 W
  • Output voltage: 0 - 32 V per channel
  • Output current: 0 - 10 A per channel
  • Resolution programming/readback (voltage/current): 1 mV / 1 mA

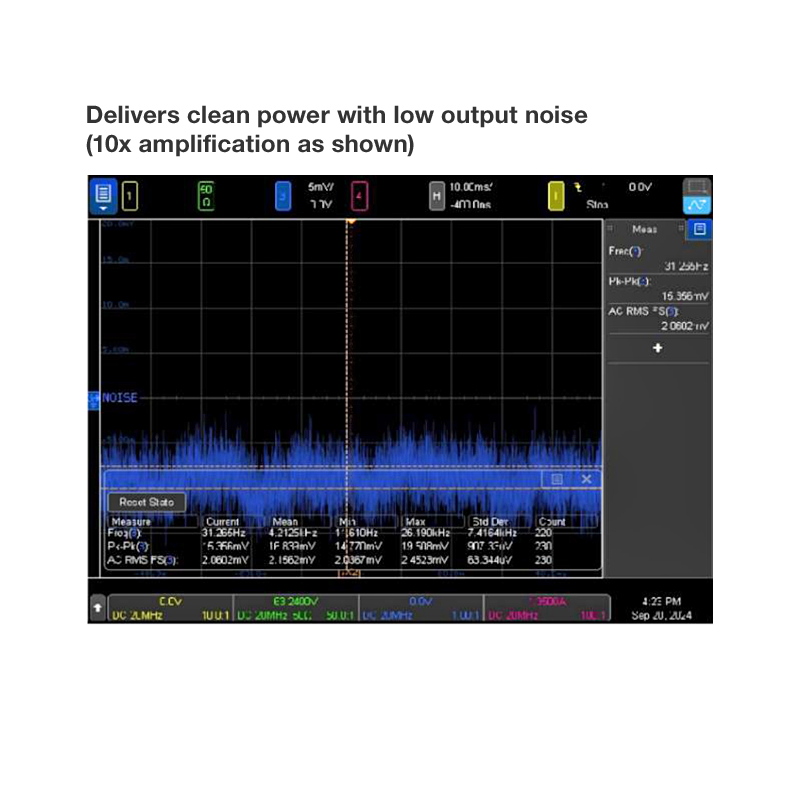

  • Ripple & Noise:
    • Vpp: < 10 mV
    • Vrms: < 1 mV
    • Current: < 4 mArms
  • Programming accuracy (voltage/current): 0.06% + 6 mV / 0.1% + 6 mA
  • Readback accuracy (voltage/current): 0.05% + 5.5 mV / 0.1% + 3.5 mA

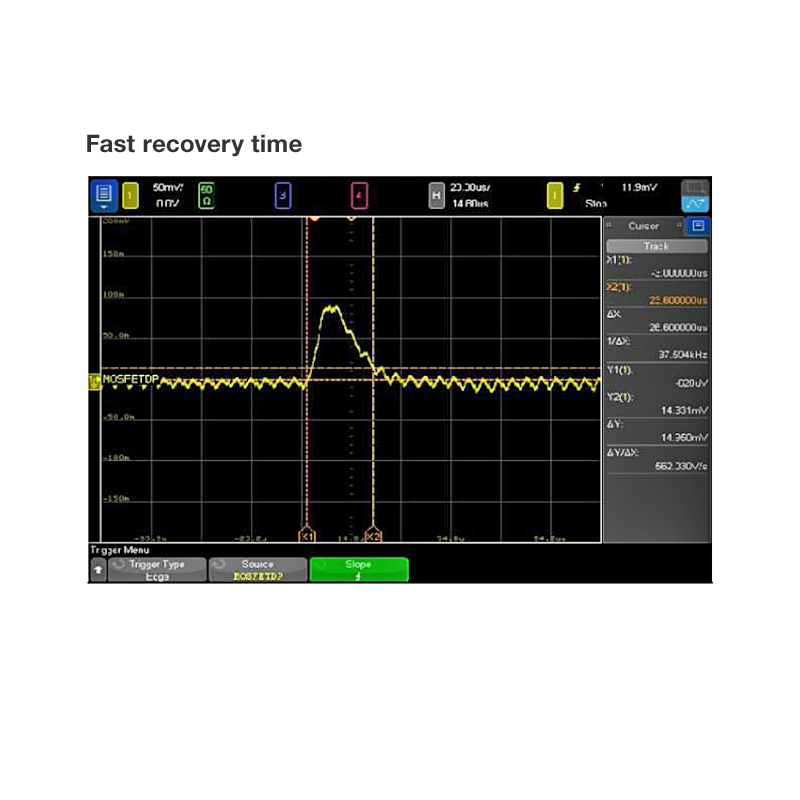

  • Load transient recovery time: < 55 µs

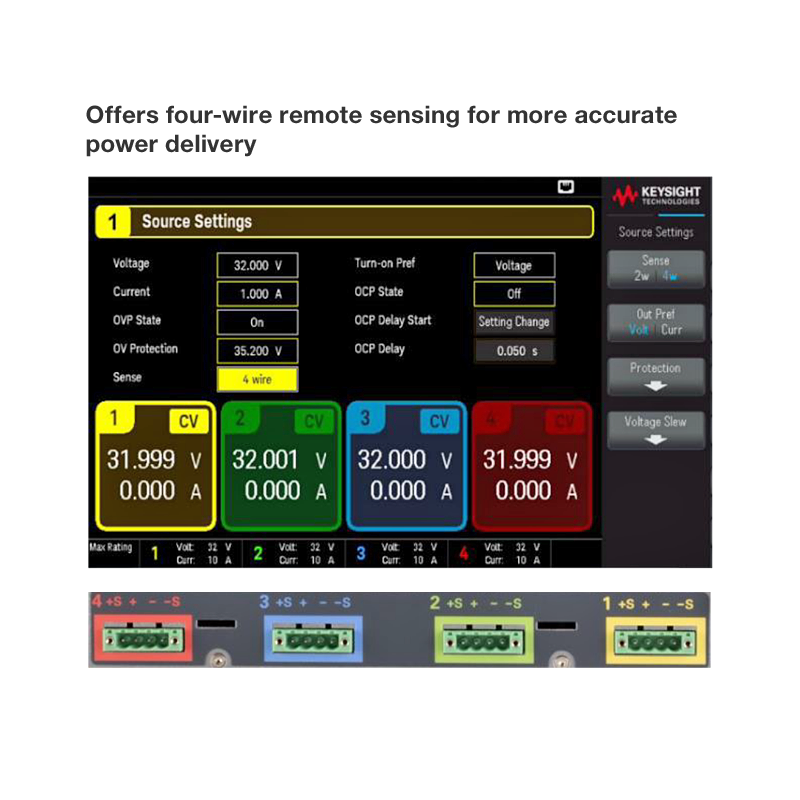

  • Remote sensing: 2-wire and 4-wire possible
  • Protection functions: OVP, OCP, OTP
  • Display: 7-inch color LCD with color coding
  • Interfaces: USB 2.0, LAN (10/100 Mb/s)
  • Emulator mode: compatible with R&S HMP4040 commands
  • Data acquisition: Interval 200 ms to 60 s, up to 20.000 hours storage time
  • Tracking mode: outputs can be synchronized
  • Dimensions (H x W x D): 165 x 314 x 281 mm
  • Weight: 11 kg
  • Operating temperature range: 0 - 40 °C
  • Storage temperature: -20 - 70 °C
  • Humidity: up to 80 %, non-condensing
  • Mains connection: 100-240 VAC ±10 %, 50/60 Hz, < 900 VA
  • Standards: UL/CSA/IEC 61010-1, EN 61326-1:2013 (EMC), KC, AS/NZS

Documents & Downloads

Brochure
pdf | 0.53 MB

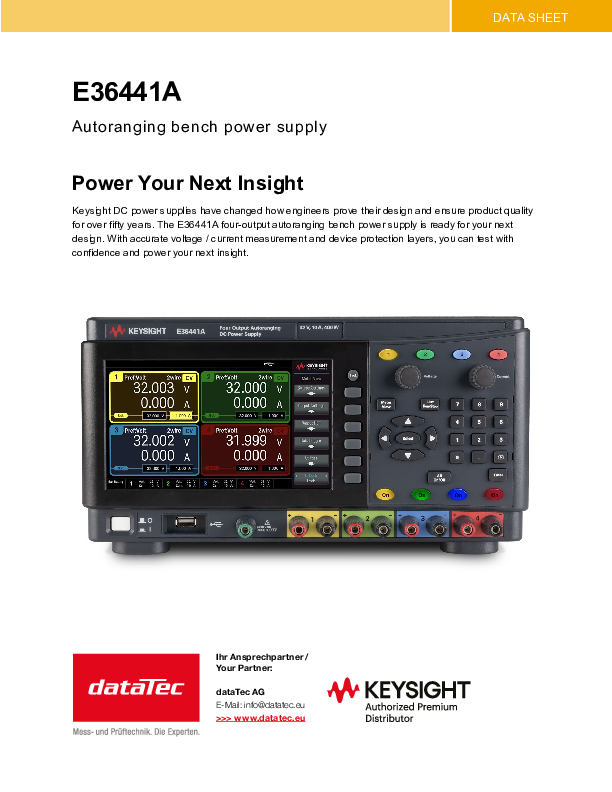

Datasheet
pdf | 1.54 MB
Userguide
pdf | 2.85 MB

Description

E36441A | Power supply unit, DC, 4 channel, linear, 400 W, 32 V, 10 A, 160 W per channel

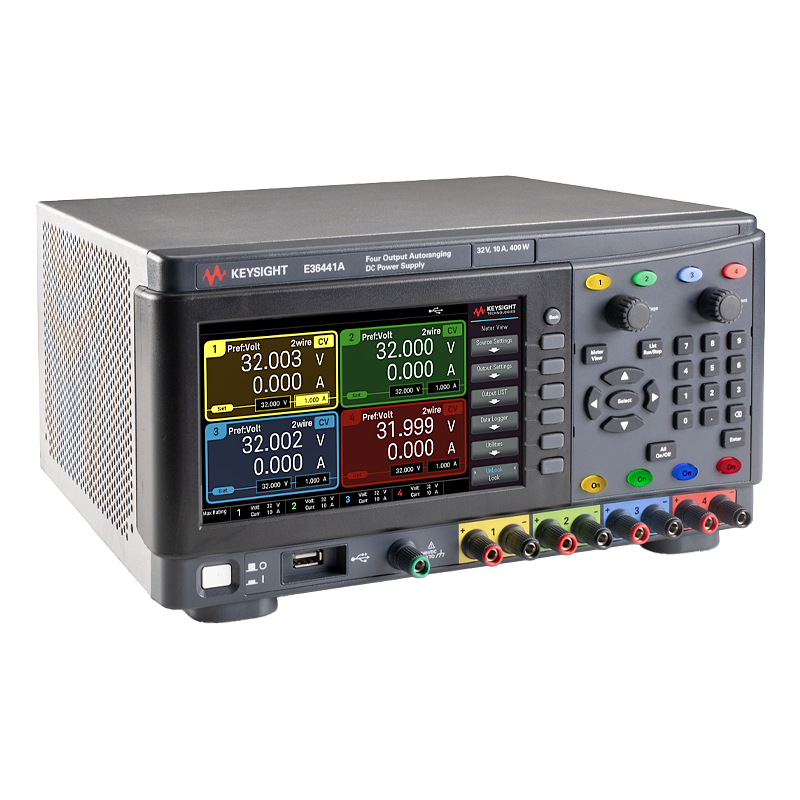

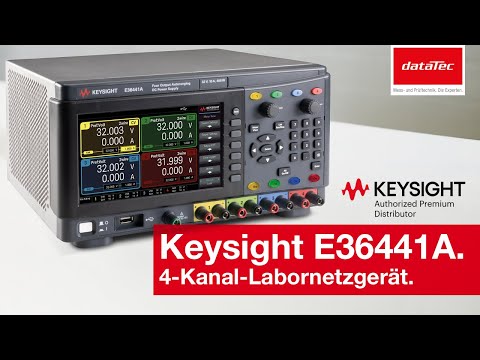

The Keysight Smart Bench Essentials Plus E36441A is a state-of-the-art, four-channel autoranging laboratory power supply that delivers a total power of 400 W. Each channel provides up to 160 W with an output voltage of up to 32 V and a maximum current of 10 A. It is ideal for precise measurements and reliable power supply in development and test environments.

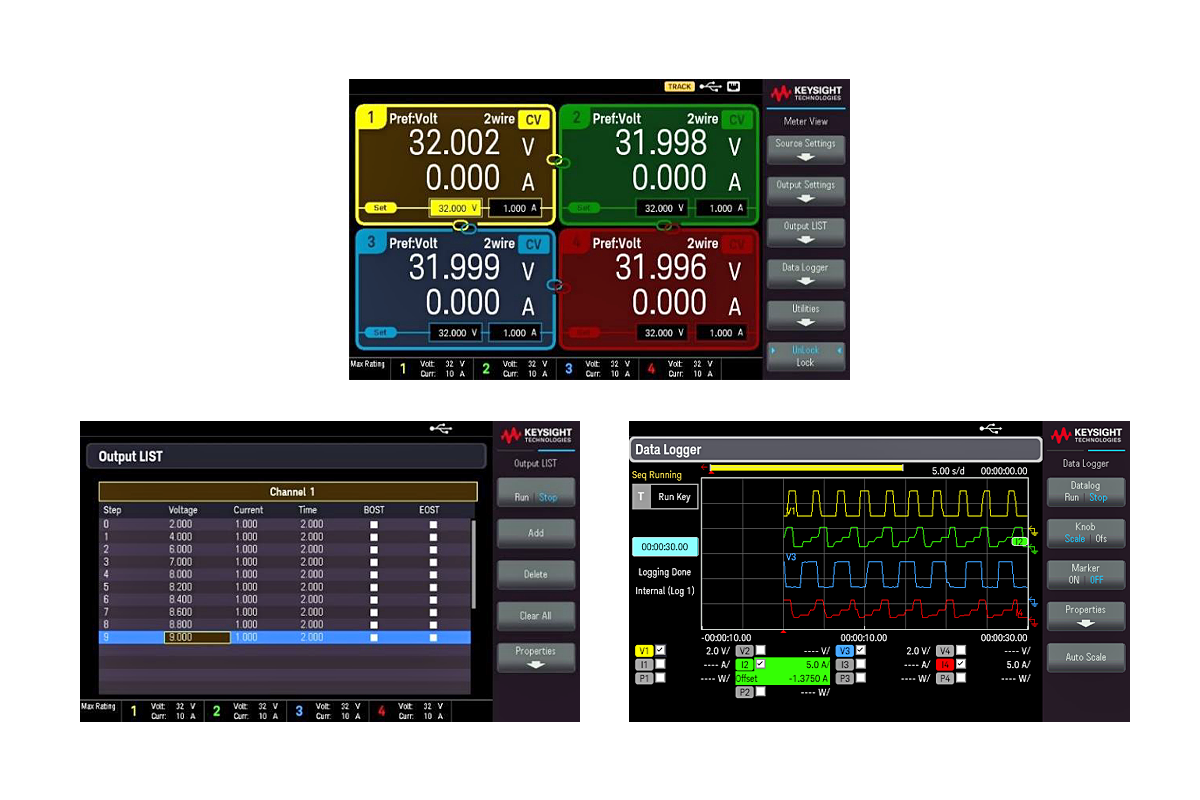

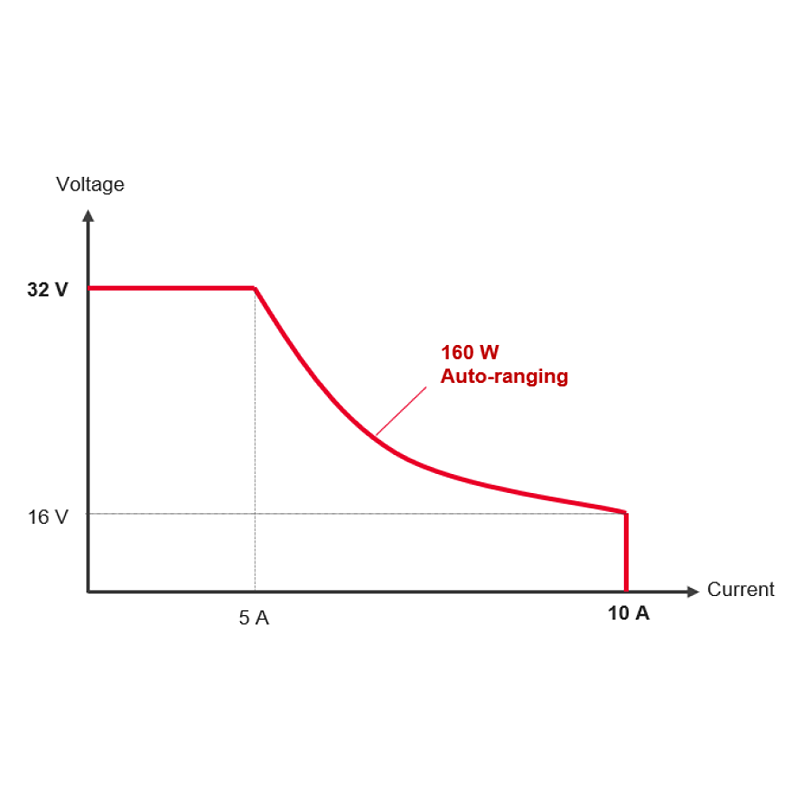

With an intuitive 7-inch color display, individually controllable channels, extensive protection functions as well as USB and LAN interfaces, the E36441A supports efficient, safe and flexible use. The built-in autoranging technology enables flexible power adjustment per channel and saves space on the workbench at the same time. Additional features such as data acquisition, sequencing, LIST mode and tracking outputs make the device a comprehensive tool for demanding test tasks.
