Keysight BV9210B | Pathwave BenchVue Advanced Battery Test and Emulation Software, test environment for battery applications

Manufacturer number: BV9210B

Keysight BV9210B
Keysight BV9210B
Keysight BV9210B
Keysight BV9210B
Keysight BV9210B
Keysight BV9210B

Delivery time upon request

On Request

You would like to request an offer? Please add items to the shopping cart and request an offer there.
Highlights Documents & Downloads Description Related Articles

Keysight BV9210B | Pathwave BenchVue Advanced Battery Test and Emulation Software, test environment for battery applications, for integration with two-quadrant power supply, controls up to four devices.

  • Tests and emulates batteries up to 200 kW and 2000 V.
  • Supports four modes of operation: emulation, profiler, unload / load, and cycler

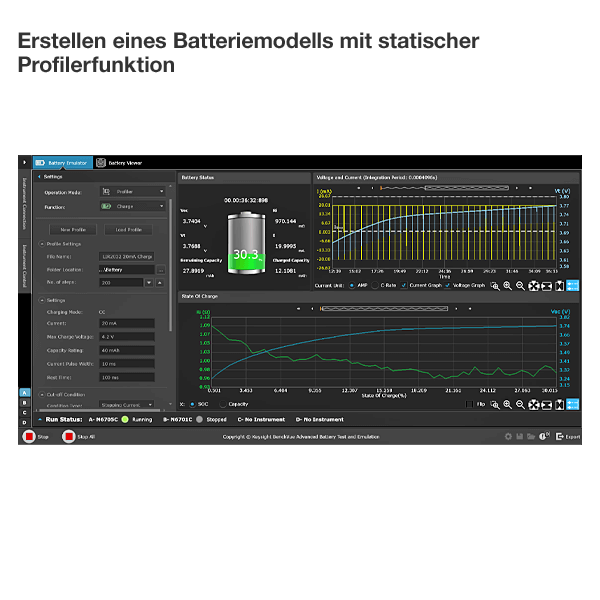

  • Creates custom battery models
  • Controls up to four devices at the same time (including N6705C, N6700C, N6701C, N6702C power supplies with SMU modules of the N6780 series)
  • API functions for easy integration into your programming environment
  • Extended control options: evaluation of the capacity, state of charge, constant or dynamic level selection, control of the pulse width
  • Simultaneous measurement of voltage and current with the built-in digitizer
  • Precise recording of voltage, current and capacity from seconds to days

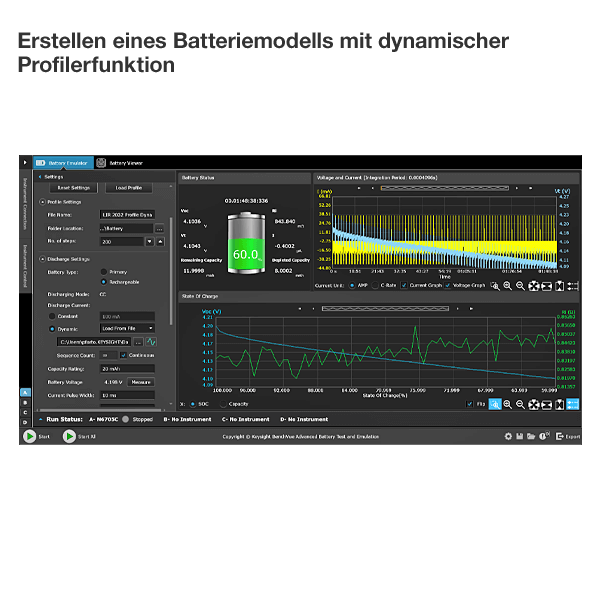

  • Generates user-defined dynamic charging characteristics for discharge
  • Imports different battery models
  • Exports measurement data
  • Graphic representation of the battery model
  • Customizable battery protection parameters

Independant Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

Catalog
pdf | 3.44 MB
Brochure
pdf | 0.57 MB
Overview
pdf | 3.44 MB

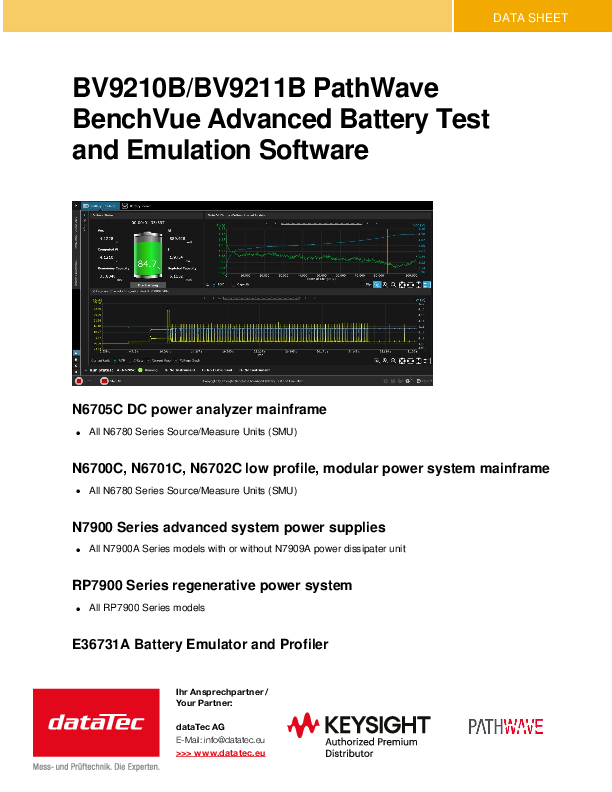

Datasheet
pdf | 1.26 MB
User report
pdf | 0.94 MB
Start guide
pdf | 0.74 MB
Configuration guide
pdf | 0.19 MB

Detaildescription

BV9210B | Pathwave BenchVue Advanced Battery Test and Emulation Software, test environment for battery applications

The BV9210B "Pathwave BenchVue Advanced Battery Test and Emulation" application software offers you a convenient, fast test environment for battery applications. The software enables you to generate battery models and, in conjunction with Keysight's 2-quadrant power sources, also emulate batteries. The emulation function enables the desired battery parameters to be output quickly and easily. In this way you can test different scenarios without having to wait for the charging and discharging conditions of a real battery.

The integration of the BV9210B software with one or more two-quadrant power supplies, including the N6700C series, enables a wide variety of applications with low to high power levels. The test environment is used in various industries, e. B. in entertainment electronics, medical technology, e-mobility, energy storage or in the automotive sector.
