Keysight 89601203C | PathWave Vector Signal Analysis Base Platform - Essentials Tier

Manufacturer number: 89601203C

89601203C
89601203C
Ready to ship in 5 to 10 business days

On Request

or choose one of the following options:
Request a quote Product is already in cart
Product downloads Product inquiries Request education-price
Highlights Technical Data Documents / Downloads Description Related Articles

Keysight 89601203C | PathWave Vector Signal Analysis Base Platform - Essentials Tier for Mobile Devices and General RF Testing.

Technical Data

Documents & Downloads

Brochure
89600-VSA
pdf | 3.54 MB
Overview
89600-VSA
pdf | 1.96 MB

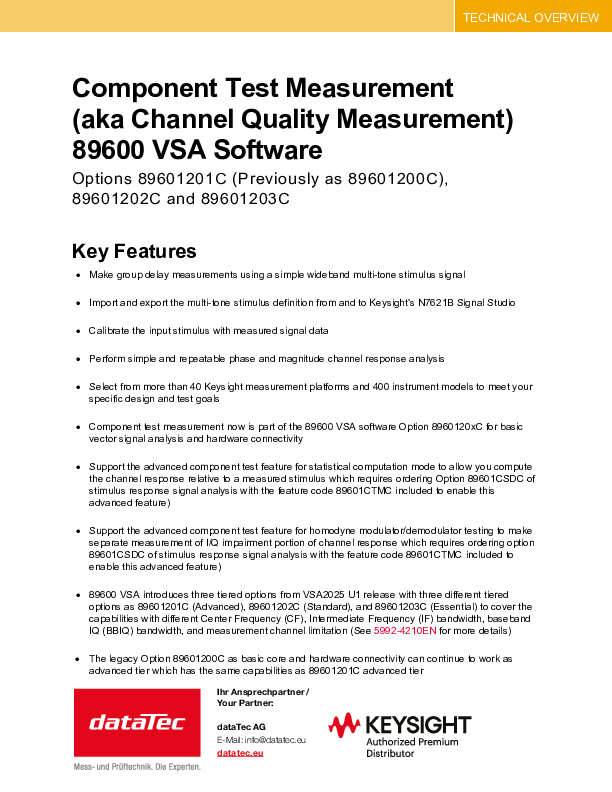

Datasheet
89601203C
pdf | 2.89 MB
Configuration guide
89601200C
pdf | 0.76 MB

Description

89601203C | PathWave Vector Signal Analysis Base Platform - Essentials Tier

The PathWave Vector Signal Analysis Base Platform Option 89601203C is specifically designed for engineers involved in the development and testing of cellular devices, WLAN standards, 5G NR FR1 and general HF design. This version is a powerful and cost-effective tool for laboratory and test bench use.

Features and application areas:

  • Spectrum and signal analysis in the areas of time, frequency and modulation.
  • Support for 5G NR FR1 tests (up to 8 GHz), WLAN and other RF applications.
  • Maximum analysis bandwidth of 160 MHz, ideal for FR1 signals and broadband RF measurements.
  • Single carrier measurements with I+Q signal analysis using two physical inputs.
  • Ideal for single test stations or specific application areas with dedicated requirements.

Compatible hardware devices:

The 89601203C option is compatible with a wide range of Keysight measurement devices, including:

  • EXA N9010A/B (up to 44 GHz, 40 MHz bandwidth).
  • CXA N9000A/B (up to 26.5 GHz, 25 MHz bandwidth).
  • InfiniiVision HD3 oscilloscope (up to 1 GHz).
  • FieldFox N99xxA handheld spectrum analyzers (up to 54 GHz, 100 MHz bandwidth).

This broad support allows engineers the flexibility to perform measurements on different platforms, regardless of whether they are working with signal analyzers, oscilloscopes or modular instruments.
