Keysight DSOX4022G | Oscilloscope, DSO, 2-channel, 200 MHz, 1 million wfm/s

Manufacturer number: DSOX4022G

DSOX4022G
DSOX4022G
DSOX4022G
DSOX4022G
DSOX4022G
DSOX4022G
DSOX4022G
DSOX4022G
DSOX4022G
DSOX4022G
DSOX4022G
DSOX4022G
DSOX4022G
DSOX4022G
DSOX4022G
DSOX4022G
DSOX4022G
DSOX4022G
Delivery time upon request

€8,083.00

plus VAT. €9,618.77 VAT plus shipping costs

or choose one of the following options:
Request a quote Product is already in cart
Product downloads Product inquiries Request education-price
Highlights Technical Data Documents / Downloads Description Related Articles

Keysight DSOX4022G | 2-channel digital storage signal oscilloscope, bandwidth 200 MHz, up to 5 GS/s sampling rate, signal acquisition rate of 1,000,000 signals/s, 12.1" touch color screen with touch zone trigger.

Technical Data

Documents & Downloads

Datasheet
pdf | 2.61 MB
Userguide
pdf | 7.52 MB

Description

DSOX4022G | Oscilloscope, DSO, 2-channel, 200 MHz, 1 million wfm/s

More comfort and real increases in productivity result from this Keysight oscilloscope from the InfiniiVision 4000G /p>

The InfiniiScan Touch Zone Trigger simplifies triggering: just drag a box on the screen with your finger around the signal event of interest and the oscilloscope triggers on it. 2 Trigger zones can be selected.

Thanks to the high signal acquisition rate of 1 million wfm/s, the oscilloscope reacts quickly to setting changes even when using digital channels, protocol decoding, mathematical functions or automatic measurement functions are activated. This increases the probability of detection many times over for random or rare events that slower oscilloscopes often miss.
These oscilloscopes are unusually versatile because they combine the possible functions of many measuring devices: oscilloscope, logic analyzer, protocol analyzer, voltmeter and 2-channel arbitrary function generator. And your investment is optimally protected because all models can be upgraded in every respect - including bandwidth - if necessary.

The oscilloscopes of the InfiniiVision 4000G series are available with bandwidths from 200 MHz to 1.5 GHz. You also have the choice between 2 or 4 channel DSO models as well as between 2+16 channel / 4+16 channel MSO models.

The variant presented here has DSOX4022G has a bandwidth of 200 MHz and 2 channels.

In comparison to the 4000A series, the InfiniiVision oscilloscopes of the 4000G series have many functions that were previously not available or only available as options.

The following are now integrated as standard:

  • Segmented storage

  • Waveform and measurement histograms
  • Dual waveform generator with 20 MHz

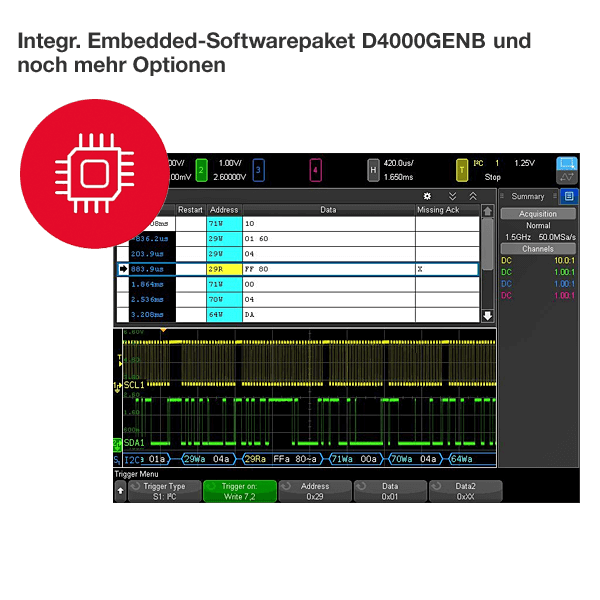

  • I2C, SPI, UART (RS232/422/485), I2S , USB PD Serial Trigger & Decode
  • Mask & Measurment Limit Testing
  • Frequency Response Analysis (Bode Plots)
  • HDTV Video Triggering and Analysis
