Keysight 34902A | 16-channel reed multiplexer module (2/4-wire) for data logger 34970A / 34972A

Manufacturer number: 34902A

34902A
34902A
34902A
34902A
Delivery time upon request

€1,072.00

plus VAT. €1,275.68 VAT plus shipping costs

or choose one of the following options:
Request a quote Product is already in cart
Product downloads Product inquiries Share
Highlights Documents / Downloads Description Scope Related Articles

Keysight 34902A | 16-channel multiplexer plug-in module (2/4 wire) for data logger 34970A / 34972A.

  • 16-channel differential multiplexer (reed relay)
  • integrated thermocouple reference junction
  • Scan rate of 250 channels per second
  • Two and four wire measurements possible
  • Max. 300 V switching voltage
  • Connection via screw terminals
  • floating connection to the internal DMM of the 34970A / 72A
  • Warranty 3 years

Documents & Downloads

Datasheet
pdf | 3.90 MB
Userguide
pdf | 4.88 MB

Description

34902A | 16-channel reed multiplexer module (2/4-wire) for data logger 34970A / 34972A

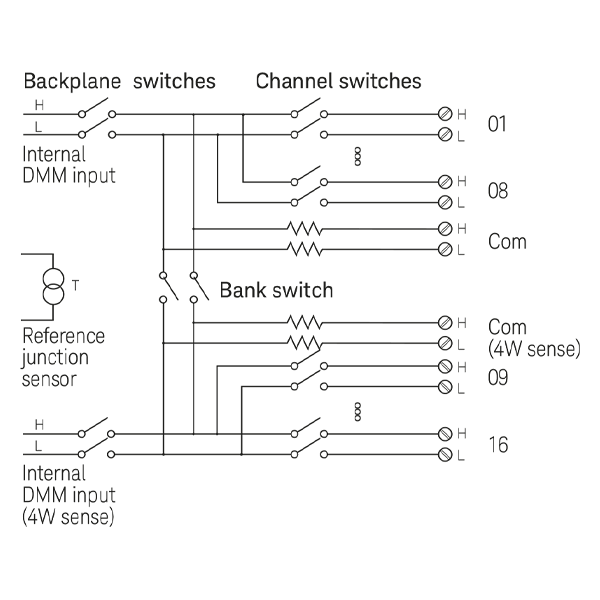

The Keysight 34902A module for the 34970A / 34972A measurement data acquisition / switching system works with reed relays to achieve scan rates of up to 250 channels per second. The module is ideal for automated high-throughput testing, high-speed data logging and monitoring, and sixteen two-wire inputs switch up to 300 V on the 34970A's internal DMM. Two and four wire measurements can be mixed on one module. In four-wire measurements, the channels of the banks are combined into pairs. Leakage resistors (shunts) must be provided by the user for current measurements.

Lieferumfang

  • Plug-in card 34902A
  • Calibration certificate

Accessoires (7 products)

BV0006B
Keysight
BV0006B
BenchVue data logger app PC measurement and evaluation software
Ready to ship in 5 to 10 business days
On Request
BV9001B
Keysight
BV9001B
BenchVue full version, PC measurement and evaluation software
Ready to ship in 5 to 10 business days
On Request
34904A
Keysight
34904A

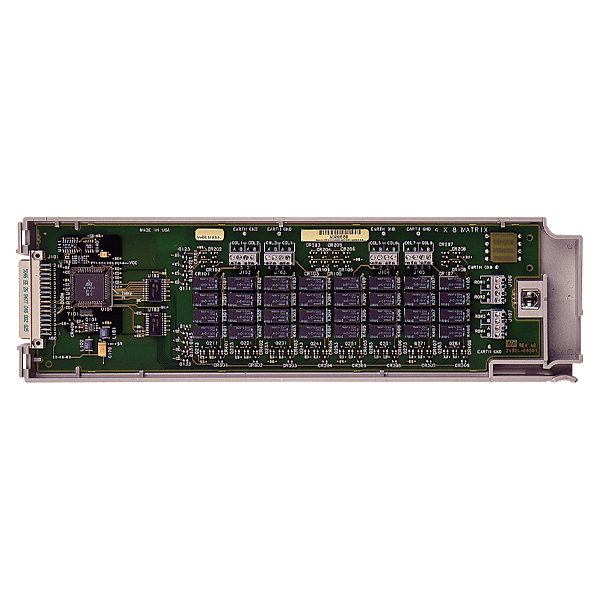

4 x 8 matrix (2-wire) module for data logger 34970A / 34972A
Delivery time upon request
€950.00
34906A
Keysight
34906A
2 GHz 1: 4 HF-Mux, 75 Ohm, module for data logger 34970A / 34972A
Delivery time upon request
On Request
34902A-A6J
Keysight
34902A-A6J
Calibration according to ANSI Z540
Delivery time upon request
On Request
34903A
Keysight
34903A

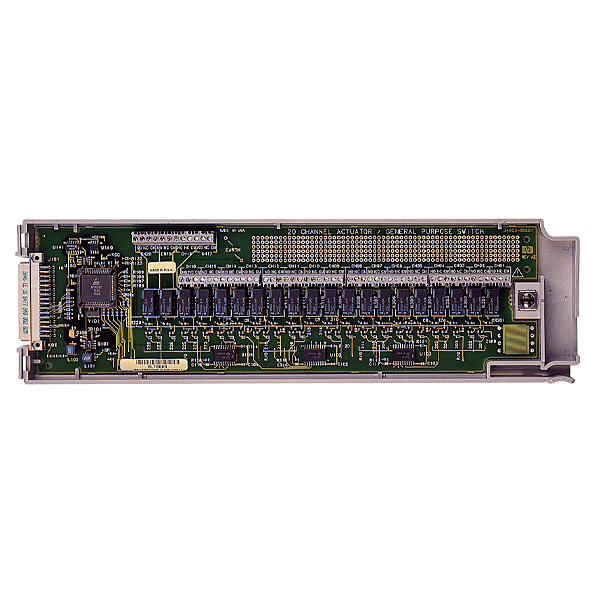

20-channel universal relay module for data logger 34970A / 34972A
Delivery time upon request
€759.00
34905A
Keysight
34905A

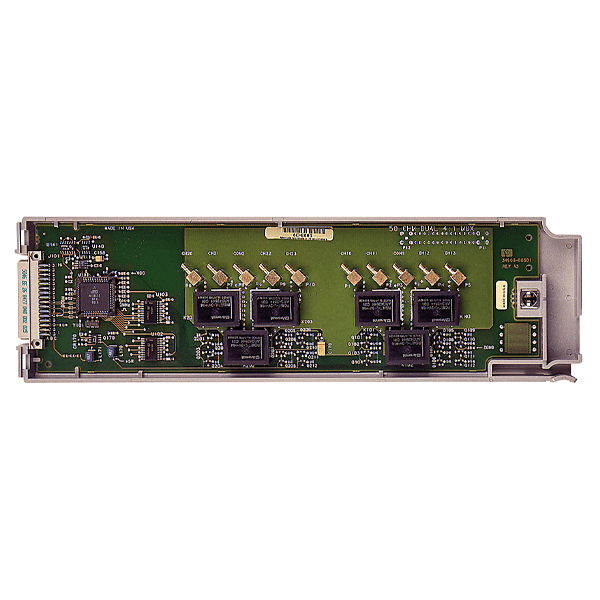

2 GHz 1: 4 HF-Mux, 50 Ohm, module for data logger 34970A / 34972A
Delivery time upon request
€1,381.00

Alternate products (6 products)

34908A
Keysight
34908A

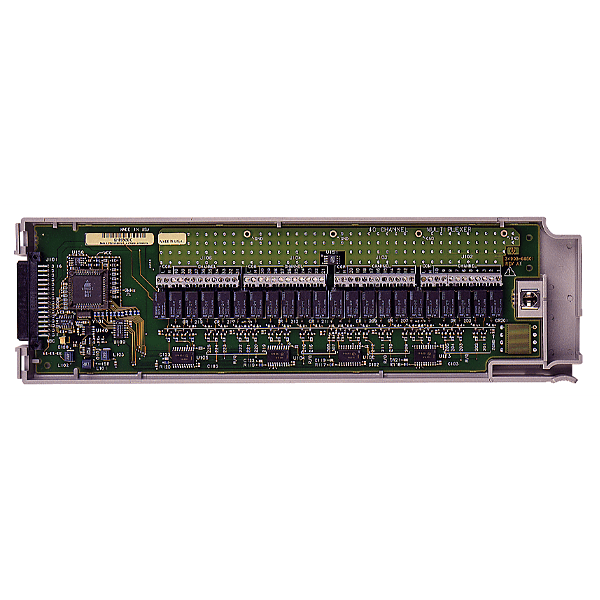

40 channel multiplexer (1-pin) module for data logger 34970A / 34972A
