Keysight 34904A | 4 x 8 matrix (2-wire) module for data logger 34970A / 34972A

Manufacturer number: 34904A

34904A
34904A
34904A
34904A
Delivery time upon request

€950.00

plus VAT. €1,130.50 VAT plus shipping costs

or choose one of the following options:
Request a quote Product is already in cart
Product downloads Product inquiries Share
Highlights Documents / Downloads Description Scope Related Articles

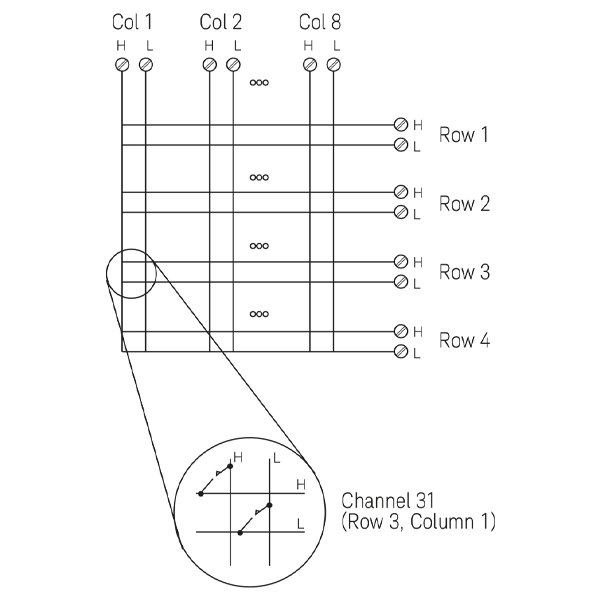

Keysight 34904A | 4 x 8 matrix switch plug-in module for data logger 34970A / 34972A.

  • 32 two-wire crossing points
  • 4 x 8 matrix switch
  • Armature relay
  • Scan rate of 120 channels / s
  • Max. 300 V switching voltage
  • Max. 1 A switching current
  • Max. 50 W switching power
  • Max. 10 MHz bandwidth
  • Connection via screw terminals
  • Warranty 3 years

Documents & Downloads

Datasheet
pdf | 3.90 MB
Userguide
pdf | 4.88 MB

Description

34904A | 4 x 8 matrix (2-wire) module for data logger 34970A / 34972A

The Keysight 34904A module for the 34970A / 34972A measurement data acquisition / switching system is the most flexible connection between the device and a test environment, which is produced with a wide variety of measurement instruments at the same time.

Rows and columns can be combined multiple times to form 8 x 8, 4 x 16 or larger matrix, with up to 96 connections in a single 34904A / 34972A. A connection to the internal DMM of the 34970A is not possible.

Lieferumfang

  • Plug-in card 34904A
  • Calibration certificate
