Keysight U1253B | Multimeter, TRMS, 4½, OLED, ACV / DCV, integr. Rectangle generator

Name: U1253B | Multimeter, TRMS, 4½, OLED, ACV / DCV, integr. Rectangle generator
Brand: Keysight
SKU: U1253B
Price: 915.0 EUR
Availability: InStock

Manufacturer number: U1253B

Delivery time upon request

€915.00

plus VAT. €1,088.85 VAT plus shipping costs

or choose one of the following options:

Request a quote Product inquiries Request education-price

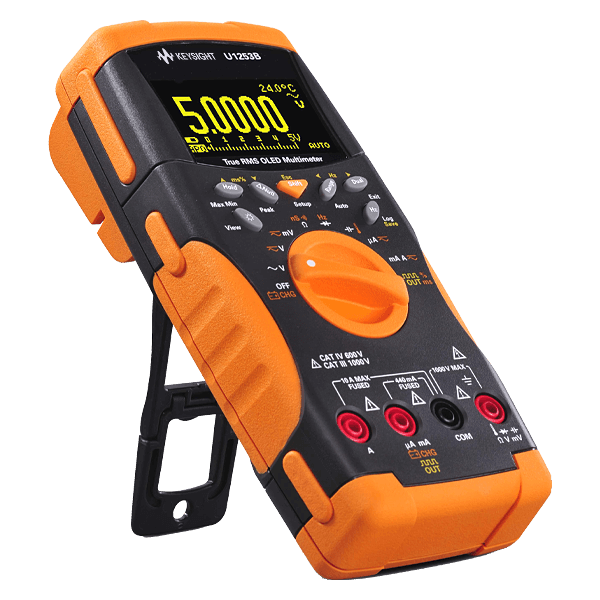

Keysight U1253B | 4 ½ digit TRMS handheld multimeter "Orange Line" with bright OLED dual display. Protection class CAT III 1000V / CAT IV 600V.

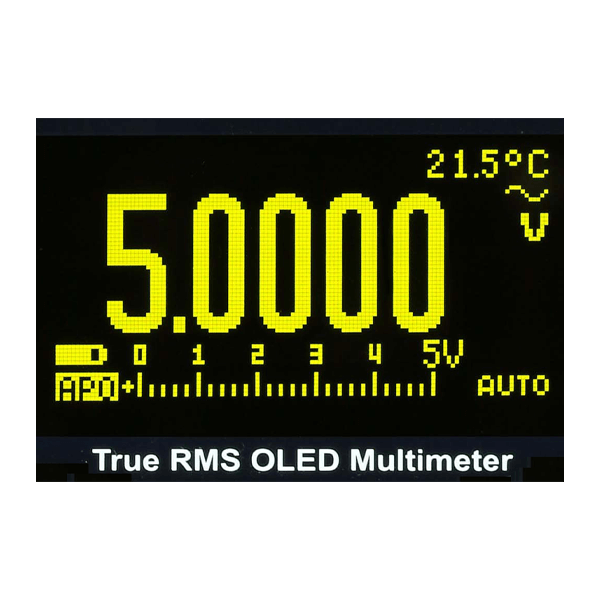

4½-digit OLED dual display with 50,000 digits each
Very bright and sharp display (even in the dark and / or high ambient brightness)
Display with a high contrast ratio of 2000: 1
Very wide reading angle of 160 degrees
Shock and fall protected by (orange) rubber edges
Measurement accuracy of up to 0.025%
Voltage measurement 10µV .. 1000V
Current measurement 10nA .. 10A
Resistance measurement 0.01Ω .. 500MΩ
Capacitance measurement 1pf .. 100mF
Temperature measurement with optional type K sensor
Frequency measurement 0.001Hz .. 1MHz
Automatic and manual range selection
Level measurement
Acoustic continuity tester
Data storage / logger for 100 measured values
Analog bar graph
Automatic shutdown
Built-in frequency generator 0.5Hz .. 4.8kHz
Electronic calibration with closed housing possible via interface according to DIN / ISO with calibrator.
Data logger software (free download)
Interface IR to USB (IR-USB cable optional, no.U1173A)
optional soft carrying case with space for accessories U1174A
Power cable and AC adapter for 7.2V battery
Optional diverse test lead set, such as point measuring probes, SMD grippers, hook clamps and alligator clips U1161A
Certificate for calibration
Protection class CAT III 1000V and CAT IV 600V

Technical Data

Analogue segment display:	Yes
Article number:	U1253B
Backlight:	Yes
Basic precision:	0,025 %
Capacity measuring range:	10 nF - 100 mF
Current measuring range AC/DC:	500µA - 10A / 500µA - 10A
Data memory / logger:	Yes / Yes
Dimensions (L x W x H) (mm):	203.5 x 94.4 x 59
Diode test / continuity test:	Yes / Yes
Display Hold / Auto-Hold:	Yes / Yes
Display resolution:	50,000
Electrical safety:	CAT III 1000 V, CAT IV 600 V
Frequency measuring range:	99.999 Hz - 999.99 kHz
Interfaces:	Optional: Bluetooth
Min. / Max. Recording:	Yes / Yes
Model:	U1253B
Number of positions:	4.5
Resistance measuring range:	500 Ω - 500 MΩ
Special features:	built-in 20MHz frequency generator & programmable square wave generator
Temperature measurement ( PT100 / Type K / Type J):	Type K / Type J
True effective measurement TRMS:	Yes
Voltage measuring range AC/DC:	50 mV - 1000 V / 50 mV - 1000 V
Warranty (years):	3
Weight (kg):	0.532

Documents & Downloads

Datasheet

pdf | 1.48 MB

Description

U1253B | Multimeter, TRMS, 4½, OLED, ACV / DCV, integr. Rectangle generator

The Keysight (formerly Agilent's electronic measurement technology) U1253B handheld multimeter offers optimum versatility, robustness and reliability in use. The multimeters have a sharp, high-contrast and bright (therefore very easy to read even in the dark or high brightness) OLED display (organic LED display). OLEDs do not require an additional light source as used in conventional multimeters and therefore work much more energy-efficiently. With this digital multimeter you are never in the dark.

The high-precision multimeter offers you many multimeter functions, math. Functions, data logger, frequency counter, frequency generator and much more. The devices also offer a rechargeable battery and an integrated charging circuit that charges the battery fully automatically as soon as the multimeter is plugged into the power supply. With this multimeter you are excellently equipped for current and future measurement requirements.

Lieferumfang

Multimeter U1253 B
Ni-Mh battery
Charging power supply
Test lead set
Calibration certificate
report
Quick start guide
