GW Instek ASR-6500 | Power supply unit, AC&DC, 5 kVA, stand-alone, 3P4W (380V - 415V), 2000 Hz, LAN, USB, RS-232

Manufacturer number: ASR-6500

ASR-6500
ASR-6500
ASR-6500
ASR-6500
ASR-6500
ASR-6500
Delivery time upon request

On Request

or choose one of the following options:
Request a quote Product is already in cart
Product downloads Product inquiries
Highlights Technical Data Documents / Downloads Description Related Articles

GW Instek ASR-6500 | power supply unit, AC&DC, 5 kVA, stand-alone, 3P4W (380V - 415V), 2000 Hz, LAN, USB, RS-232.

Product features:

  • Power: 5 kVA (single unit)
  • Input: Three-phase, 380 V to 415 V ±10 %
  • Output modes: 1P2W, 1P3W, 3P4W
  • Maximum output voltage: 350 Vrms (phase) / 700 Vrms (line)
  • Frequency range: AC mode: 15.00 Hz - 2000.0 Hz
    AC+DC mode: 1.00 Hz - 2000.0 Hz
  • Output types: AC, DC and AC+DC combined operation
  • Parallel operation: Up to 39.6 kVA / 39.6 kW (multiple units)
  • Special features: Programmable impedance, voltage rise time adjustable in three steps, sequence and emulation mode, arbitrary waveform processing
  • Measurement functions: Dual-channel voltage/current monitoring, 100th harmonic measurement
  • Interfaces: Standard: RS-232C, USB, LAN
    Optional: CAN bus, DeviceNet, GPIB
  • Webserver function: integrated control and data logging
  • Size: 4U rack unit (compact high-performance design)
  • Accessories (optional): GPIB or DeviceNet cards, CAN bus module, external parallel cables, rack-mounting adapter

Technical Data

Documents & Downloads

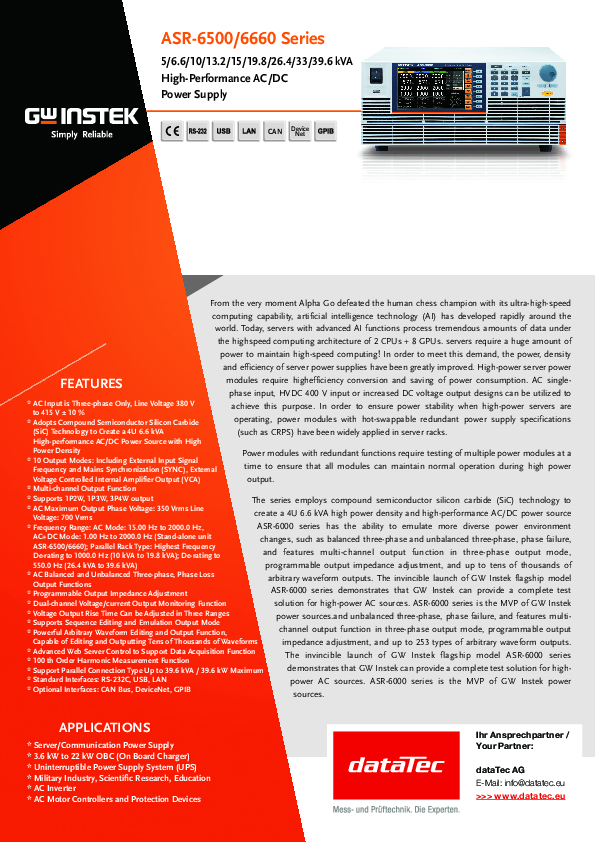

Datasheet
pdf | 2.31 MB

Description

ASR-6500 | Power supply unit, AC&DC, 5 kVA, stand-alone, 3P4W (380V - 415V), 2000 Hz, LAN, USB, RS-232

The ASR-6500/6660 series from GW Instek is a powerful AC/DC power supply series designed specifically for demanding applications where high performance, stability and flexibility are required. It combines state-of-the-art silicon carbide (SiC) semiconductor technology with a compact design (4U) and offers a high power density of up to 6.6 kVA per device. The series is ideal for use in modern test environments, laboratories and industrial test applications where variable voltage and frequency conditions need to be simulated.

General features:

  • Use of SiC semiconductor technology for maximum efficiency and power density
  • Powerful 4U design with up to 6.6 kVA per unit
  • Multi-channel output function with configurable operating modes (1P2W, 1P3W, 3P4W)
  • Support of AC, DC and AC+DC output
  • Programmable output impedance and adjustable voltage rise time
  • Parallel switchable up to 39.6 kVA / 39.6 kW
  • Powerful arbitrary waveform processing and output of tens of thousands of waveforms
  • Integrated web server control with data logging function
  • 100. Harmonic measurement function for precise power quality analysis
  • Standard interfaces: RS-232C, USB, LAN; optional: CAN bus, DeviceNet, GPIB

Possible applications:

The ASR-6500/6660 series can be used universally in the development, production and testing of high-performance power supplies and components. Typical fields of application are:

  • Server and communication network component tests
  • On-board chargers (OBC) for electric vehicles (3.6 W to 22 kW)
  • UPS systems (uninterruptible power supplies)
  • Military, scientific and academic research
  • AC inverter and motor control testing
  • Protective device and power grid simulation applications
