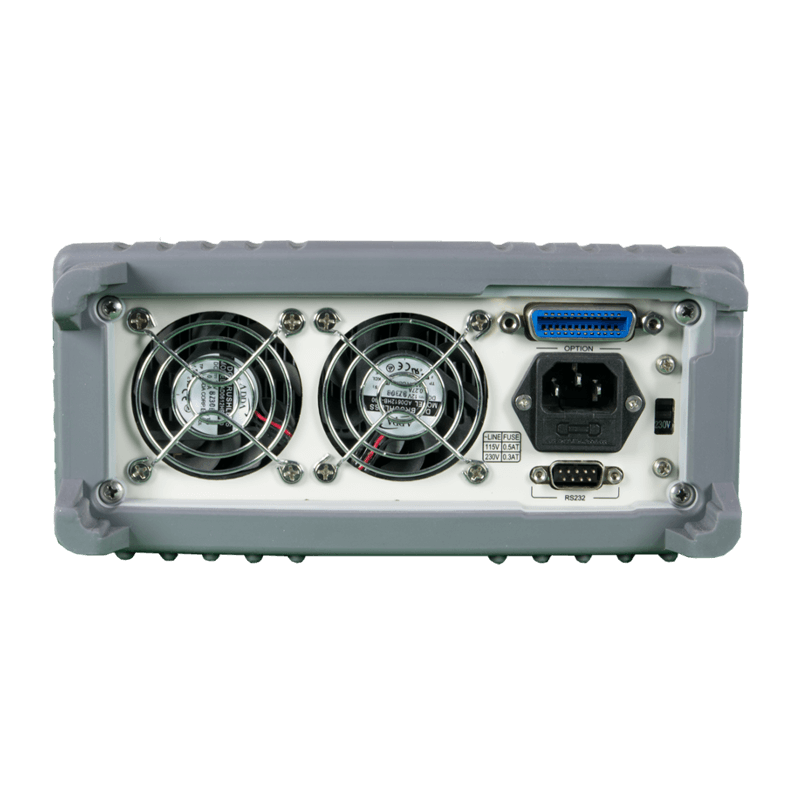

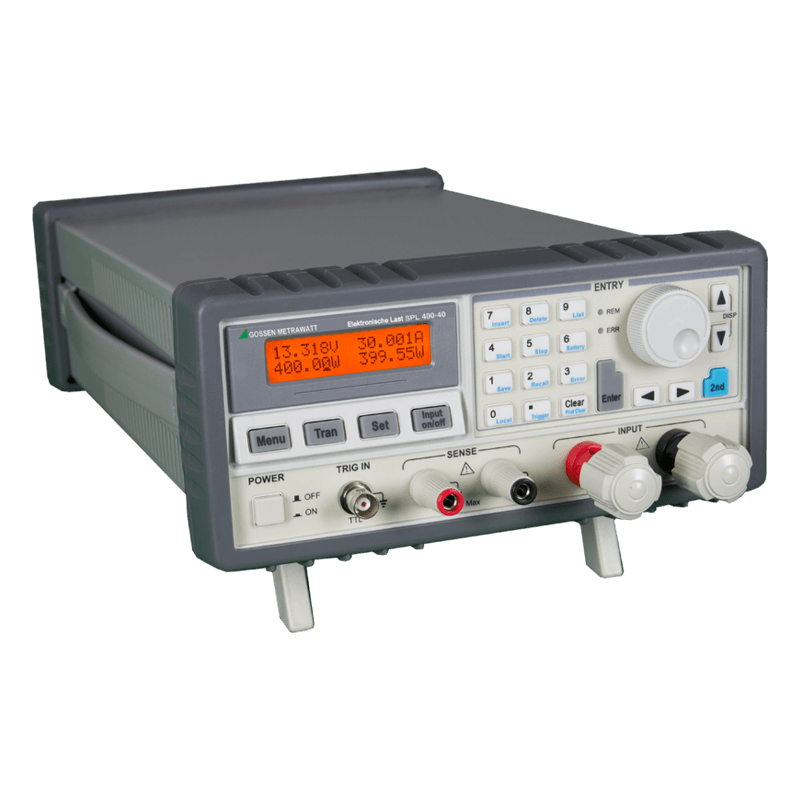

Gossen Metrawatt K853A | Electronic load, SPL400-40, 80V / 40A, 400W, RS232, opt. GPIB

Manufacturer number: K853A

K853A
K853A
K853A
K853A
K853A
K853A
Ready to ship in 5 to 10 business days

€2,650.00

plus VAT. €3,153.50 VAT plus shipping costs

or choose one of the following options:
Request a quote Product is already in cart
Product downloads Product inquiries Request education-price Share
Highlights Technical Data Documents / Downloads Description Related Articles

Gossen Metrawatt K853A | Programmable 1-channel electronic load (tabletop device) SPL400-40 with digital multifunction display, with current, resistance, power and voltage characteristics, input 0-40 A / 0-80 V / 400 watts.

  • 1 load input on the front
  • Power: 400 W.
  • Current: 0 - 40 A
  • Voltage: 0 - 80 VDC
  • 4 operating modes: constant current (CC), constant voltage (CV), constant load (CR), constant power (CP)
  • Resolution: with constant current from 0.1 mA, with constant voltage 1 mV, with constant load from 0.1 mΩ, with constant power 10 mW
  • High-speed sequence and transient measurement, short-circuit strength, battery discharge and other auxiliary functions
  • The minimum operating voltage is less than 0.6 V at maximum current load
  • Programmable current rise and fall times, steep edges
  • Several groups of parameters (device settings) and sequences (load profile) can be saved and called up.
  • Potential-free power input / no earthing
  • Safe electrical isolation
  • Switchable input (input on / off)
  • With constant power voltage regulation or current regulation possible
  • Settings via encoder and keyboard
  • Multifunctional LCD display
  • Protective devices, including adjustable power limitation
  • Tabletop unit, also suitable for installation in a 19 "rack
  • Supply voltage 115/230 VAC 50/60 Hz
  • Dimensions W / H / D (mm) approx. 215/100/280
  • Weight m. Rubber protection about 6 kg

Technical Data

Documents & Downloads

Datasheet
pdf | 0.28 MB

Description

K853A | Electronic load, SPL400-40, 80V / 40A, 400W, RS232, opt. GPIB

The electronic load (DC-Load) of the SPL series is a highly accurate direct current sink for use in research, development, production, service and training. The device is characterized by a variety of functions and a high degree of control accuracy with high ease of use.

The direct current sink (electronic load resistance) is used for the adjustable ohmic load of direct voltage / direct current sources with constant current, resistance, voltage or power. Your area of application is the static and dynamic testing of power supplies, batteries, PV modules, fuel cells, inductors, etc.

Accessoires (3 products)

Z990A
Gossen Metrawatt
Z990A
Rackmount kit for SPL series and LABKON P series
Ready to ship in 5 to 10 business days
€320.00
K890A
Gossen Metrawatt
K890A
Option IEEE488 interface for SPL series and LABKON P series
Ready to ship in 5 to 10 business days
€600.00
K891A
Gossen Metrawatt
K891A
USB interface option for LABKON P series
Ready to ship in 5 to 10 business days
€350.00

Alternate products (1 product)

K852A
Gossen Metrawatt
K852A
Electronic load, SPL250-30, 80V / 30A, 250W, RS232, opt. GPIB
Delivery time upon request
€2,150.00

Recommendations (8 products)

K221A
Gossen Metrawatt
K221A

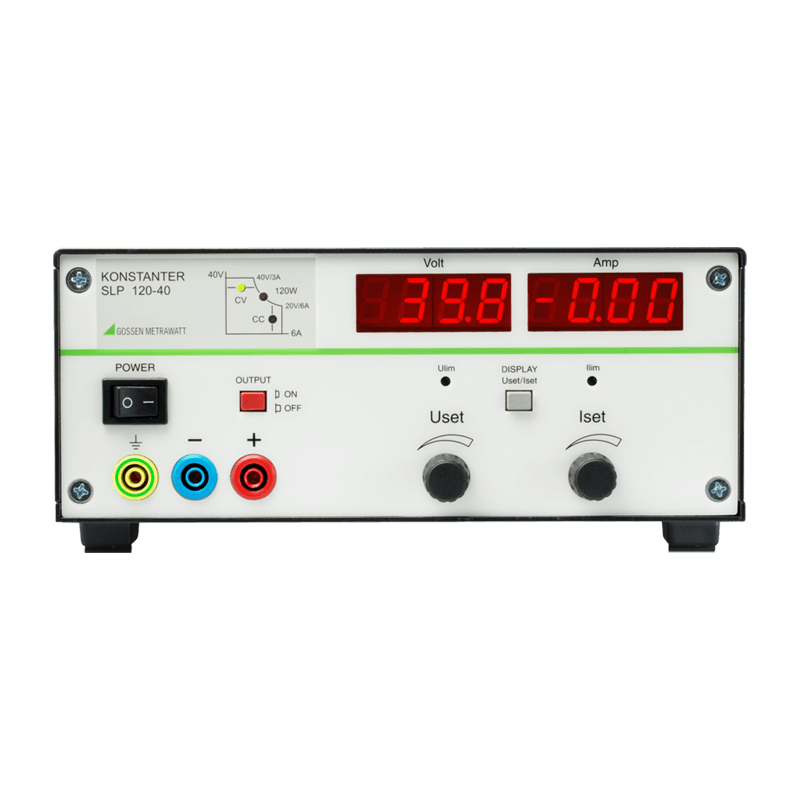

Power supply unit, DC, 1 channel, SLP32N 40V / 6A, 120W, analog
