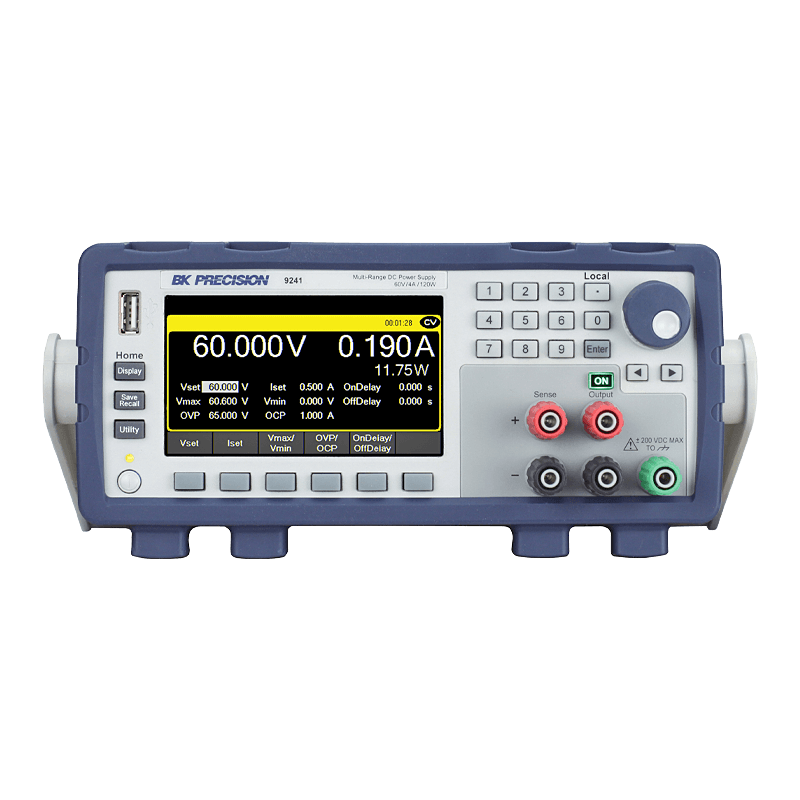

B&K Precision 9241 | DC Power Supply Unit, Multi-Range, 1 Channel, 60 V, 4 A, 120 W, USB, LAN, 9240 Series

Name: 9241 | DC Power Supply Unit, Multi-Range, 1 Channel, 60 V, 4 A, 120 W, USB, LAN, 9240 Series
Brand: B&K Precision
SKU: BK9241
Price: 1175.0 EUR
Availability: InStock

Manufacturer number: BK9241

Delivery time upon request

€1,175.00

plus VAT. €1,398.25 VAT plus shipping costs

or choose one of the following options:

Request a quote Product inquiries Request education-price Share

B&K Precision 9241 | DC power supply unit, multi-range, 1 channel, 60 V, 4 A, 120 W, USB, LAN, 9240 series.

Product features:

Maximum output voltage: 60 V
Maximum output current: 4 A
Maximum output power: 120 W
Multi-range operation: Supports flexible voltage/current combinations
Ripple and noise: ≤ 10 mV (voltage, peak-to-peak), ≤ 2 mV (voltage, RMS)
Programmable rise and fall times: 0.005 V/ms to 3.2 V/ms (voltage), 1 mA/ms to 1000 mA/ms (current)
Advanced list mode: up to 100 programmable steps
Battery charging mode: supports user-defined charging profiles with safety shutdowns
Direct data logging: storage of voltage and current data on USB stick

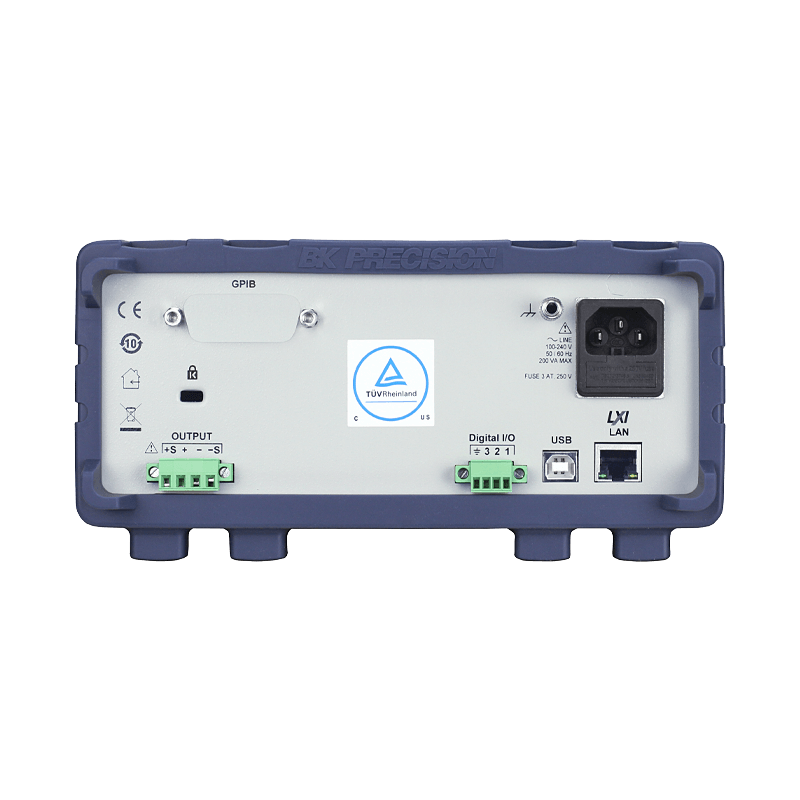

Interfaces: USB (USBTMC compliant), LAN (LXI compliant), optional GPIB
Protective functions: OVP (overvoltage protection), OCP (overcurrent protection), OTP (overtemperature protection), key lock
Display: 4.3" LCD color display with graphical representation of voltage and current values
Dimensions (WxHxD): 213 x 88 x 330 mm
Weight: 5 kg

Technical Data

AC input:	100 V - 240 V ±10 %, 47 Hz - 63 Hz
Additional functions:	Mehrbereichsbetrieb, List-Modus-Programmierung, Kanal-Kopplungs- und Tracking-Funktionen, Datenlogging auf USB-Flashlaufwerk, Remote-Sense
Article number:	BK9241
Autorange:	No
Bidirectional:	No
DC output reversible:	DC Source
Dimensions (L x W x H) (mm):	330 x 213 x 88
Interfaces:	USB, LAN
Model:	BK9241
Number of outputs:	1
Output power (W):	120
Power factor:	0,98 / 115 V - 0,94 / 230 V
Protective devices:	OVP, OCP, OTP
Warranty (years):	3
Weight (kg):	5
max. Power (A):	4
max. voltage (V):	60

Documents & Downloads

Datasheet

pdf | 2.50 MB

Description

9241 | DC Power Supply Unit, Multi-Range, 1 Channel, 60 V, 4 A, 120 W, USB, LAN, 9240 Series

The 9240 series from B&K Precision sets new standards for universal DC power supplies and offers many functions that are usually found in high-performance devices. The multi-range technology enables a flexible power supply of up to 200 W, depending on the selected voltage and current combination. This series combines a user-friendly interface with advanced list mode programming, a special battery charging mode and direct data logging.

Typical areas of application:

Production and quality assurance testing
Electronics development and research
Maintenance and service of electronic devices
Test and measurement applications in laboratories and academia
Testing and measurement applications in laboratories and academia. and measurement applications in laboratories and academic institutions
Battery charging tests with safety shutdowns

The model 9241 offers a maximum output voltage of 60 V and a maximum current of 4 A, with a total power of up to 120 W. Thanks to the multi-range function, the available power can be optimally distributed across different voltage and current combinations. This makes the device particularly suitable for applications that require higher voltages than the 9240 model.

Differences to other variants of the 9240 series:

The 9241 model delivers 60 V / 4 A with a maximum output of 120 W.
The 9240 model, on the other hand, offers 32 V / 8 A with the same maximum output of 120 W.
The model 9242 offers a higher total power of 200 W with 60 V / 10 A.
All models are optionally available with a GPIB interface.

The model 9241 offers a powerful, flexible and compact solution for a wide range of test and development applications. With its advanced protection features, versatile programmability and integrated remote control capabilities, it is ideal for professional test and laboratory environments that require higher voltages.
