B&K Precision 9240 Series | DC Power Supply Unit, Multi-Range, 1 Channel, 32 // 60 V, 4 // 8 // 10 A, 120 // 200 W

Name: 9240 Series | DC Power Supply Unit, Multi-Range, 1 Channel, 32 // 60 V, 4 // 8 // 10 A, 120 // 200 W
Brand: B&K Precision
SKU: BK9241-GPIB
Price: 1390.0 EUR
Availability: InStock

Manufacturer number: BK9241-GPIB

Delivery time upon request

€1,390.00

plus VAT. €1,654.10 VAT plus shipping costs

or choose one of the following options:

Request a quote Product inquiries Request education-price

B&K Precision 9241-GPIB | DC power supply unit, multi-range, 1 channel, 60 V, 4 A, 120 W, USB, LAN, GPIB, 9240 series

Technical Data

AC input:	100 V - 240 V ±10 %, 47 Hz - 63 Hz
Additional functions:	Multi-range operation, List mode programming, Channel pairing and tracking functions, Data logging to USB flash drive, Remote sense
Article number:	BK9241-GPIB
Autorange:	No
Bidirectional:	No
DC output reversible:	DC Source
Dimensions (L x W x H) (mm):	330 x 213 x 88

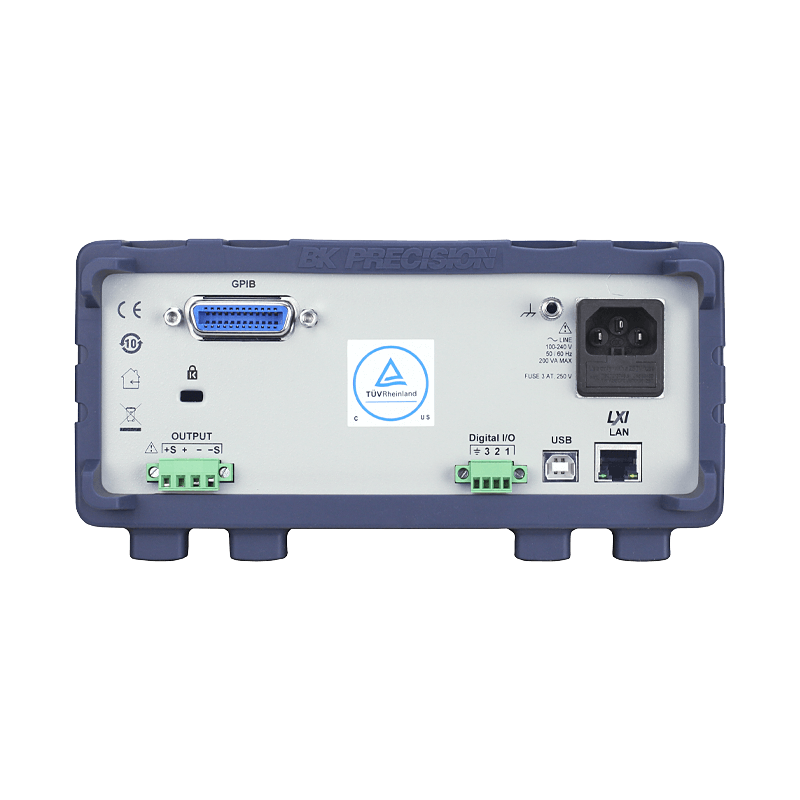

Interfaces:	USB, GPIB, LAN
Model:	BK9241-GPIB
Number of outputs:	1
Output power (W):	120
Power factor:	0.98 / 115 V - 0.94 / 230 V
Protective devices:	OVP, OCP, OTP
Warranty (years):	3
Weight (kg):	6
max. Power (A):	4
max. voltage (V):	60

Description

9240 Series | DC Power Supply Unit, Multi-Range, 1 Channel, 32 // 60 V, 4 // 8 // 10 A, 120 // 200 W

The 9240 series from B&K Precision sets new standards for universal DC power supplies and offers many functions that are usually found in high-performance devices. The multi-range technology enables a flexible power supply of up to 200 W, depending on the selected voltage and current combination. This series combines a user-friendly interface with advanced list mode programming, a special battery charging mode and direct data logging.

Typical areas of application:

Production and quality assurance testing
Electronics development and research
Maintenance and service of electronic devices
Test and measurement applications in laboratories and academia
Testing and measurement applications in laboratories and academia. and measurement applications in laboratories and academic institutions
Battery charging tests with safety shutdowns

The model 9241-GPIB offers a maximum output voltage of 60 V and a maximum current of 4 A, with a total power of up to 120 W. Thanks to the multi-range function, the available power can be optimally distributed across different voltage and current combinations. This makes the device particularly suitable for applications that require higher voltages than the 9240 model.

Differences to other variants in the 9240 series:

The 9241-GPIB model delivers 60 V / 4 A with a maximum output of 120 W.
In contrast, the 9240-GPIB offers 32 V / 8 A with the same maximum power of 120 W.
The 9242-GPIB offers a higher total power of 200 W with 60 V / 10 A.

The 9241-GPIB offers a powerful, flexible and compact solution for a wide range of test and development applications. With its advanced protection features, versatile programmability and integrated remote control capabilities, it is ideal for professional test and laboratory environments that require higher voltages.
