B&K Precision 2565B | Oscilloscope, DSO, 4 Channel, 100 MHz, 2 GSa/s, 200 MPts, USB, LAN, 2560B Series

Name: 2565B | Oscilloscope, DSO, 4 Channel, 100 MHz, 2 GSa/s, 200 MPts, USB, LAN, 2560B Series
Brand: B&K Precision
SKU: BK2565B
Price: 2270.0 EUR
Availability: InStock

Manufacturer number: BK2565B

Delivery time upon request

€2,270.00

plus VAT. €2,701.30 VAT plus shipping costs

or choose one of the following options:

Request a quote Product inquiries Request education-price

B&K Precision 2565B | Oscilloscope, DSO, 4 channel, 100 MHz, 2 GSa/s, 200 MPts, USB, LAN, 2560B series.

Produktmerkmale:

Bandbreite: 100 MHz
Anzahl der Kanäle: 4 analoge Kanäle + EXT
Abtastrate: Bis zu 2 GSa/s (Interleaving Modus)
Speichertiefe: 200 Mpts pro Kanal
Waveform Update Rate: Bis zu 120.000 wfms/s (normal), 500.000 wfms/s (sequence)
Touchscreen: 10,1" kapazitiver Bildschirm, 1024x600 Auflösung
Vertikale Auflösung: 8-bit und 10-bit Modi
Eingangskopplung: DC, AC, GND
Eingangsimpedanz: 1 MΩ oder 50 Ω
Maximale Eingangsspannung: 400 Vpk (1 MΩ), 5 Vrms (50 Ω)
Math-Funktionen: FFT, Integration, Differenzierung, benutzerdefinierte Formeln
Serielle Busdekodierung: I2C, SPI, UART, CAN, LIN
Integrierter Funktionsgenerator: 50 MHz, 14 Bit Auflösung
Netzwerkfunktionen: Fernsteuerung via Webserver, USB und LAN Schnittstellen
Abmessungen: 352 x 224 x 111 mm
Gewicht: 3,9 kg
Inklusive Zubehör: 4 passive Tastköpfe (PR150B), Netzkabel, USB-Kabel, Kalibrierzertifikat

Technical Data

Article number:	BK2565B
Bandwidth (MHz):	70
Counter:	Yes
DVM:	Yes
Dimensions (L x W x H) (mm):	111 x 352 x 224
Function generator:	50 MHz
Interfaces:	USB, LAN, Optional: WLAN
Model:	BK2565B
Number of channels:	2
Number of digital channels:	0
Samplerate:	1 GSa/s
Screen size:	25.65 cm
Screen type:	1024 x 600, TFT-LCD touchscreen
Segmentable memory:	Yes
Signal acquisition rate:	120,000 wfms/s
Storage depth:	200 MPts
Triggertypes:	Edge, Pulse Width, Runt, Window, Timeout, Nth Edge, Slope, Video, Pattern, Serial Bus
Vertical resolution:	8-bit
Warranty (years):	3
Weight (kg):	3.9

Documents & Downloads

Datasheet

pdf | 3.60 MB

Description

2565B | Oscilloscope, DSO, 4 Channel, 100 MHz, 2 GSa/s, 200 MPts, USB, LAN, 2560B Series

The 2560B series from B&K Precision combines modern technology with a high degree of user-friendliness and is ideally suited for applications in research, development, education, industry and maintenance. This series consists of Digital Storage Oscilloscopes (DSO) and Mixed Signal Oscilloscopes (MSO) with 4 analog channels and optional 16 digital channels in the MSO models.

Key features include a bandwidth of up to 350 MHz, a maximum sampling rate of 2 GSa/s, a generous memory depth of 200 Mpts per channel and a high-resolution 10.1" capacitive touchscreen. The oscilloscopes offer a wide range of advanced functions such as trigger zones, serial bus decoding (I2C, SPI, UART, CAN, LIN), a 50 MHz arbitrary function generator, power analysis tools, FFT analyses and mask tests.

Thanks to their extensive features, the devices are ideal for signal verification, protocol analysis, power analysis and error tracking in complex systems. Remote access via LAN or web browser is also integrated as standard.

The 2565B model is the basic variant in the series and, with a bandwidth of 100 MHz, offers a cost-effective solution for many standard applications. Despite the entry-level model, it does not forego the high-quality features of the series.

In comparison to the higher-quality models 2567B (200 MHz) and 2569B (350 MHz), the 2565B differs mainly in its lower bandwidth and the included passive probes (PR150B with 150 MHz bandwidth). Nevertheless, it offers the same maximum memory depth, screen size, user interface and trigger/analysis functions as the other models.

Alternate products

Series

B&K Precision
2565B-MSO

Oscilloscope, MSO, 4 Channel, 100 MHz, 2 GSa/s, 200 MPts, USB, LAN, 2560B Series

Delivery time upon request

€2,950.00

Series

B&K Precision

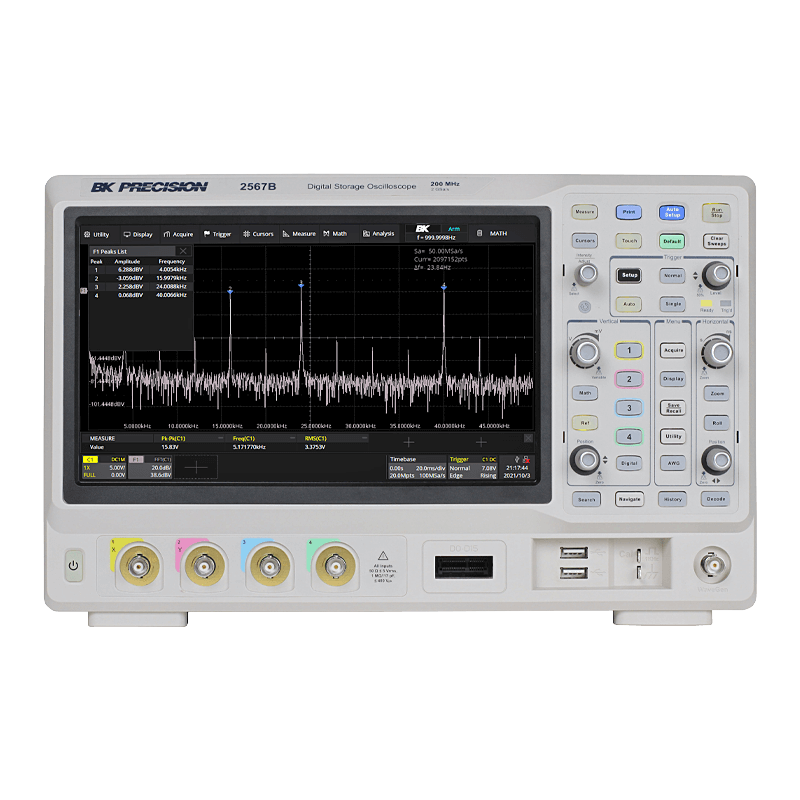

2567B

Oscilloscope, DSO, 4 Channel, 200 MHz, 2 GSa/s, 200 MPts, USB, LAN, 2560B Series

Delivery time upon request

€2,990.00

Series

B&K Precision
2567B-MSO

Oscilloscope, MSO, 4 Channel, 200 MHz, 2 GSa/s, 200 MPts, USB, LAN, 2560B Series

Delivery time upon request

€3,670.00

Series

B&K Precision
2569B

Oscilloscope, DSO, 4 Channel, 350 MHz, 2 GSa/s, 200 MPts, USB, LAN, 2560B Series

Delivery time upon request

€4,295.00

Series

B&K Precision

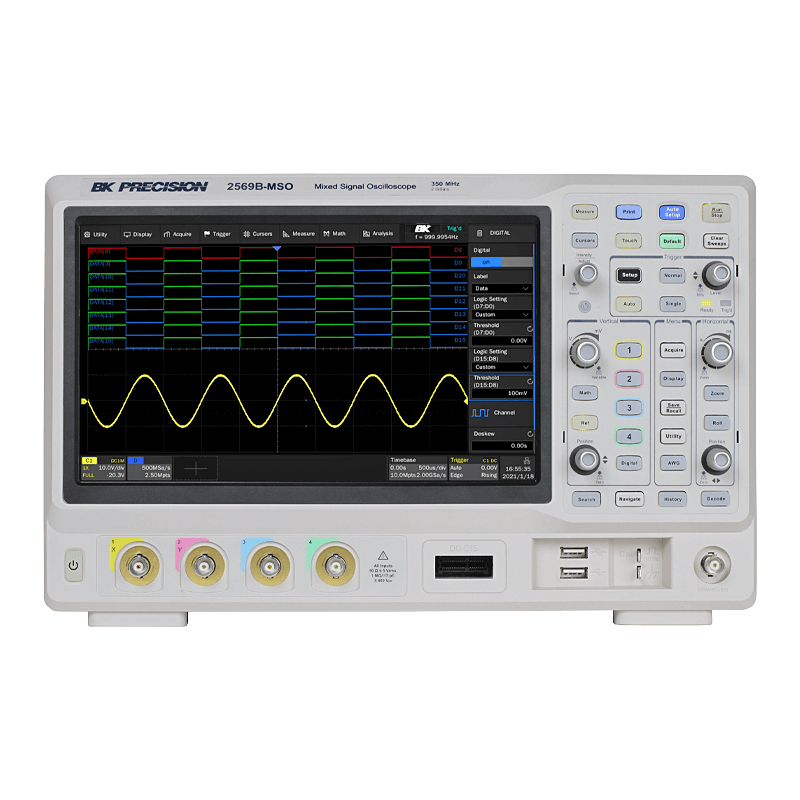

2569B-MSO
