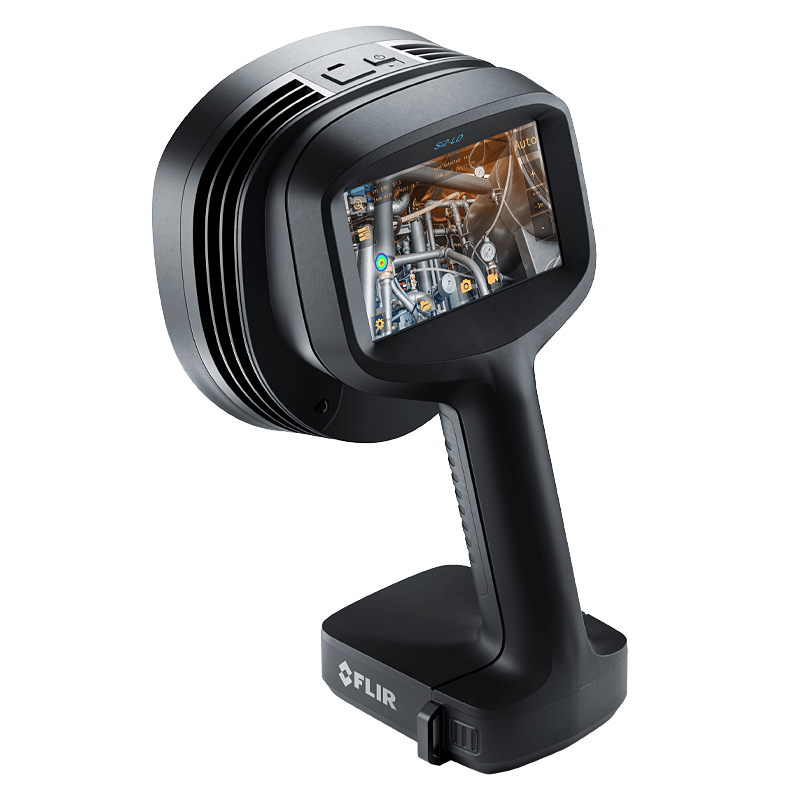

Teledyne FLIR Si2-LD | Industrial ultrasonic camera for leak detection, 2 kHz - 130 kHz, 0.3 m - 200 m (T912339)

Name: Si2-LD | Industrial ultrasonic camera for leak detection, 2 kHz - 130 kHz, 0.3 m - 200 m (T912339)
Brand: Teledyne FLIR
SKU: T912339
Price: 16499.0 EUR
Availability: InStock

Manufacturer number: T912339

1 in stock. Ready to ship in 1 business day

€16,499.00

plus VAT. €19,633.81 VAT plus shipping costs

You would like to request an offer? Please add items to the shopping cart and request an offer there.

Request educational price

Teledyne FLIR Si2-LD | Acoustic camera for industrial applications for detecting pressure leaks and mechanical faults, 2 kHz to 130 kHz, 0.3m to 200m (T912339).

Display: 5 inches with 1280 × 720 px, resistive touchscreen
Integrated LEDs with three operating modes

Acoustic measurement

Threshold detection: 20 kHz: -7 dB SPL || 35 kHz: 4 dB SPL || 50 kHz: 10 dB SPL || 80 kHz: 36 dB SPL || 100 kHz: 51 dB SPL
Bandwidth: 2-130 kHz
Directional resolution: 1° - 0.125°
Leak detection and localization: Automatic leak detection, including estimated leak size and annual cost
Threshold for detecting the exit velocity in the event of leaks: 0.0032 l/min from 2.5 m, 0.0044 l/min from 6 m
Supported gases: compressed air, hydrogen, CO2, methane , Natural Gas, Helium, Argon, Ammonia
Other Acoustic Analysis Types: Mechanical Fault Detection

Imaging & Optics

Digital camera: color images with 12 MP
Camera field of view: 75° diagonal

Video refresh rate: Camera: 60 fps / Acoustic imaging: 30 fps / Screen: 70 fps
8x digital zoom
Resolution video image : 1280 × 720 px

Analysis and Reporting

Online: FLIR Acoustic Camera Viewer (cloud service)
Offline FLIR Thermal Studio (desktop software)
Data transfer: Wi-Fi 2.4 GHz and 5 GHz IEEE 802.11.b/g/n/ac Wireless LAN USB memory stick
Internal memory: 128 GB (SD memory card)
External memory: USB 8GB, cloud storage capacity is unlimited

General

Rechargeable lithium Ion battery with a running time of up to 2.5 hours
Protection level: IP54
Security: IEC 62368-1
Camera weight: approx. 1.2 kg
Total weight (camera and battery): approx .1.45kg

Independant Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Detaildescription

Si2-LD | Industrial ultrasonic camera for leak detection, 2 kHz - 130 kHz, 0.3 m - 200 m (T912339)

The FLIR Si2-LD is an industrial acoustic imaging camera specifically designed to detect pressure leaks and mechanical failures. It allows you to detect and reduce leaks in equipment, reducing your costs associated with compressed air and specialty gas leaks. In addition to these functions, it also identifies mechanical errors such as bearing problems, thus facilitating preventive maintenance to avoid downtime.

For pure partial discharge detection, choose the Si2-PD (T912305). If you need comprehensive coverage, including power, leak detection, and mechanical fault applications, choose the Si2-Pro (T912340).

The FLIR Si2-LD also offers comprehensive analysis tools, including the categorization of the discharge type in the device, the severity and the recommended actions. These features support rapid decision making and appropriate response planning.

In addition, the camera has fleet management functionality that ensures optimal use and maintenance of equipment in large industrial environments. It enables the integration of cloud data and OTA software updates, combining acoustic and thermal images in the same report.

Product features:

Detects, locates and measures compressed air and gas leaks, including bearing fault detection, from up to 200 m away
Integrated measurement and cost analysis for industrial gases such as ammonia, hydrogen, CO2, methane , Helium and Argon
One-handed operation with automatic tuning, 8x zoom and a 12 MP digital camera
Mechanical failure mode, automatic selection and optimization of filters makes it easier to find critical mechanical problems such as bearing errors
Fleet management functions for efficient tool use and maintenance in large operations

Main Applications:

Detection and quantification of leaks in manufacturing, production and assembly applications in all applications using compressed air
Fast, accurate leak detection, increased efficiency and customer satisfaction in compressed air and gas equipment maintenance
Mechanical fault mode to detect faulty bearings, plan repairs and avoid downtime

Lieferumfang

Camera
Battery (2 pieces)
Battery charger

Power cord (4 pieces)
Carry strap
Hard case
License card: FLIR- Si Series Plugin for FLIR Thermal Studio, perpetual license
Printed documentation
USB memory stick
