TDK-Lambda GB60-56-3P | Power supply unit, DC, 1 channel, 1U, without control unit 60V / 56A, 3360W, LAN, Iso. Analog, USB, RS-232

Name: GB60-56-3P | Power supply unit, DC, 1 channel, 1U, without control unit 60V / 56A, 3360W, LAN, Iso. Analog, USB, RS-232
Brand: TDK-Lambda
SKU: GB60-56-3P
Price: 4377.39 EUR
Availability: InStock

Manufacturer number: GB60-56-3P

Delivery time upon request

€4,377.39

plus VAT. €5,209.09 VAT plus shipping costs

or choose one of the following options:

Request a quote Product inquiries Request education-price

TDK Lamdba GB60-56-3P | Power supply unit, DC, 1 channel, 1U, without control unit 60V / 56A, 3360W, LAN, Iso. Analog, USB, RS-232.

Technical Data

AC input:	342 V - 460 V
Additional functions:	Arbitrary generator with memory function programmable edge control constant voltage, constant current, constant power internal resistance simulation
Article number:	GB60-56-3P400
Autorange:	No
Bidirectional:	No
Dimensions (L x W x H) (mm):	441.5 x 423 x 43.6
Interfaces:	LAN, USB, RS-232/RS-485 isolated analog interface
Model:	GB60-56-3P
Output power (W):	3,360
Power factor:	0.94 @ 200 VAC / 380 VAC
Protective devices:	OVP, UVP, UVL, FOLD (CV/CC), OCL, OTP, AC FAIL
Warranty (years):	5
Weight (kg):	6.25
max. Power (A):	56
max. voltage (V):	60

Description

GB60-56-3P | Power supply unit, DC, 1 channel, 1U, without control unit 60V / 56A, 3360W, LAN, Iso. Analog, USB, RS-232

The DC power supplies of the GENESYS + series are optionally available without a control element. The blank front panel GB60-56-3P is used as a power supply if no own device control via a display is required. With the exception of the display functionality, it offers all the powerful standard functions of a GENESYS + power source and is used as a slave module in parallel or series connection with a master power supply unit (with control unit). The blank front panel is controlled via the digital interfaces (LAN, USB, RS-232/485) or via the isolated analog interface.

Alternate products

Series

TDK-Lambda
GB600-2.8

Power supply unit, DC, 1 channel, 1U, without control unit 600V / 2.8A, 1.7kW, LAN, Iso. Analog, USB, RS-232

Delivery time upon request

€2,606.39

Series

TDK-Lambda
GB20-135-IEEE-3P

Power supply Genesys +, DC, 1 channel, 1U, without control unit 20V / 135A, 2.7kW, LAN, GPIB, USB, RS-232, analog

Delivery time upon request

€4,515.51

Series

TDK-Lambda
GB30-112-IEEE-1P

Power supply unit, DC, 1 channel, 1U, without control unit 30V / 112A, 3360W, LAN, GPIB, USB, RS-232, analog

Delivery time upon request

€5,116.98

Series

TDK-Lambda
GB40-85-3P

Power supply unit, DC, 1 channel, 1U, without control unit 40V / 85A, 3.4kW, LAN, Iso. Analog, USB, RS-232

Delivery time upon request

€4,377.39

Series

TDK-Lambda
GB600-5.6-3P

Power supply unit, DC, 1 channel, 1U, without control unit 600V / 5.6A, 3360W, LAN, Iso. Analog, USB, RS-232

Delivery time upon request

€4,377.39

Series

TDK-Lambda
GB600-5.6-IEEE-1P

Power supply unit, DC, 1 channel, 1U, without control unit 600V / 5.6A, 3360W, LAN, GPIB, USB, RS-232, analog

Delivery time upon request

€5,116.98

Series

TDK-Lambda
GB80-34-IEEE-3P

Power supply unit, DC, 1 channel, 1U, without control unit 80V / 34A, 2.7kW, LAN, GPIB, USB, RS-232, analog

Delivery time upon request

€4,515.51

Series

TDK-Lambda
GB80-42-1P

Power supply unit, DC, 1 channel, 1U, without control unit 80V / 42A, 3360W, LAN, Iso. Analog, USB, RS-232

Delivery time upon request

€4,377.39

Series

TDK-Lambda
GB150-11.2-IEEE

Power supply unit, DC, 1 channel, 1U, without control unit 150V / 11.2A, 1.7kW, LAN, GPIB, USB, RS-232, analog

Delivery time upon request

€3,345.98

Series

TDK-Lambda
GB300-5.6-IEEE

Power supply unit, DC, 1 channel, 1U, without control unit 300V / 5.6A, 1.7kW, LAN, GPIB, analog, USB, RS-232

Delivery time upon request

€3,345.98

Series

TDK-Lambda
GB100-34-IEEE-1P

Power supply unit, DC, 1 channel, 1U, without control unit 100V / 34A, 3.4kW, LAN, GPIB, USB, RS-232, analog

Delivery time upon request

€5,116.98

Series

TDK-Lambda
GB80-21-IEEE

Power supply unit, DC, 1 channel, 1U, without control unit 80V / 21A, 1.7kW, GPIB, LAN, Iso. Analog, USB, RS232

Delivery time upon request

€3,345.98

Recommendations

Series

TDK-Lambda
G30-56

GENESYS + DC power supply, 1.68 kW, 30 V / 56 A

Delivery time upon request

€2,673.22

Series

TDK-Lambda
G600-2.8

Power supply unit, DC, 1 channel, 1U 600V / 2.8A, 1.68kW, LAN, Iso. Analog, USB, RS-232

Delivery time upon request

€2,673.22

Series

TDK-Lambda
G600-4.5-3P

Power supply unit, DC, 1 channel, 1U 600V / 4.5A, 2.7kW, LAN, Iso. Analog, USB, RS-232

Delivery time upon request

€3,831.61

Series

TDK-Lambda
G60-56-IEEE-3P

Power supply, DC, 1 channel, 1U 60V / 56A, 3360W, LAN, GPIB, USB, RS-232, analog

Delivery time upon request

€5,172.67

Series

TDK-Lambda
G80-21-IEEE

Power supply unit, DC, 1 channel, 1U 80V / 21A, 1.68kW, IEEE interface

Delivery time upon request

€3,412.81

Series

TDK-Lambda
G10-340-IEEE-3P

Power supply unit, DC, 1 channel, 1U 10V / 340A, 3.4kW, LAN, GPIB, USB, RS-232, analog

Delivery time upon request

€5,172.67

Series

TDK-Lambda
G20-135-IEEE-1P

Power supply unit, DC, 1 channel, 1U 20V / 135A, 2.7kW, LAN, GPIB, USB, RS-232, analog

Delivery time upon request

€4,571.20

Series

TDK-Lambda
G20-170-3P

Power supply unit, DC, 1 channel, 1U 20V / 170A, 3.4kW, LAN, Iso. Analog, USB, RS-232

Delivery time upon request

€4,433.08

Series

TDK-Lambda
G20-250-3P

GENESYS + DC power supply, 5 kW, 20 V / 250 A.

Delivery time upon request

€5,914.49

Series

TDK-Lambda
G300-9-IEEE-3P

Power supply unit, DC, 1 channel, 1 U, 300V / 9A, 2.7kW, LAN, GPIB, USB, RS-232, analog

Delivery time upon request

€4,571.20

Series

TDK-Lambda
G30-112-IEEE-1P

Power supply unit, DC, 1 channel, 1 U, 30V / 112A, 3360W, LAN, Iso. Analog, USB, RS-232

Delivery time upon request

€5,172.67

Series

TDK-Lambda
G10-340-1P

Power supply unit, DC, 1 channel, 1U 10V / 340A, 3.4kW, LAN, Iso. Analog, USB, RS-232

Delivery time upon request

€4,433.08

About the Manufacturer

TDK-Lambda

TDK-Lambda, a subsidiary of TDK Corporation, is one of the world's leading manufacturers of power supplies. TDK-Lambda's high-quality product portfolio includes AC/DC power supplies, programmable laboratory power supplies and DC/DC converters in the power range from 1.5 W to 15 kW. TDK-Lambda stands for innovative power supply solutions of the highest quality and reliability and primarily addresses the core sectors of industry, automation, medicine, and test and measurement.

Applications & Articles

Battery Recycling in Electromobility.

Electric vehicles are the future - but what happens to the batteries when they can no longer be used in cars? Efficient ...

02/06/2025

Reading time 5 Min.

103

Interview

Interview with Anja Fenske from Rohde & Schwarz

Safety, performance, and durability: Test solutions for battery management systems (BMS).BMSs manage batteries and thus ...

28/02/2025

Reading time 6 Min.

719

Applications & Articles

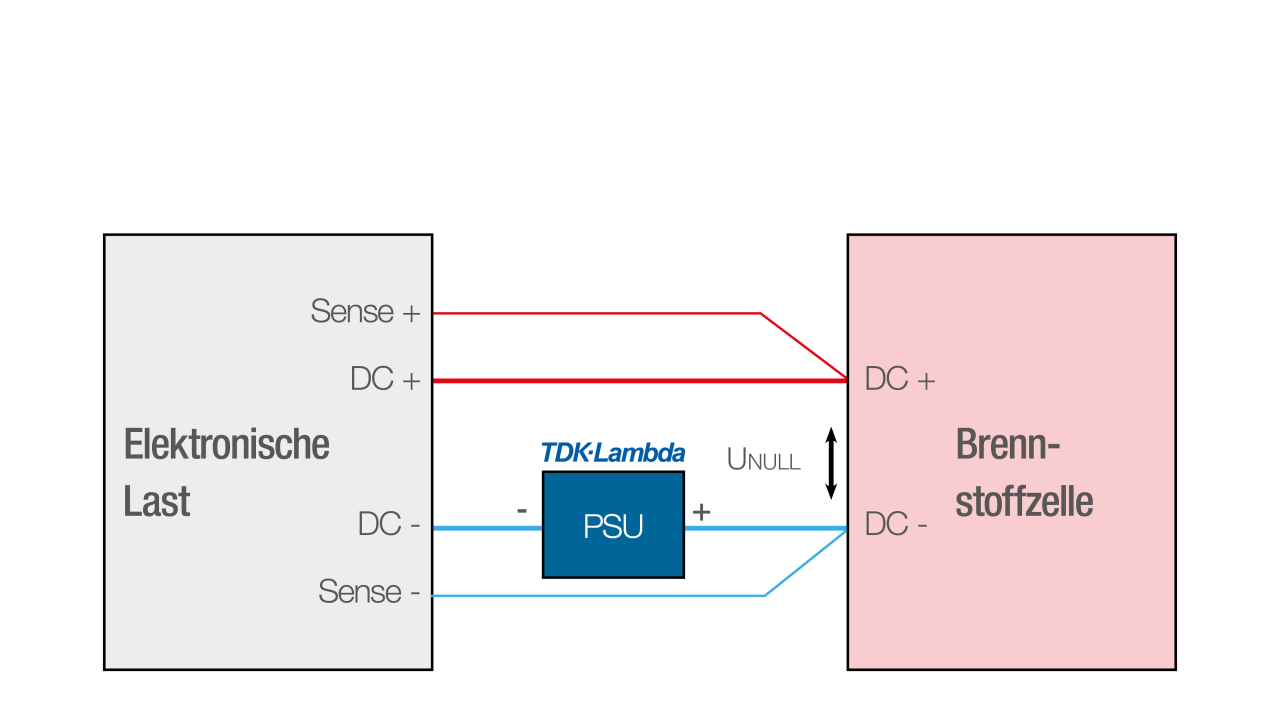

Electronic loads in zero-volt operation
