Pico Technology PicoScope 6000E Series.
Advanced real-time USB oscilloscopes.
Powerful portable oscilloscopes with up to 8 channels and mixed-signal option for an additional 16 digital channels. The series is characterized by an extremely high memory depth. Ideal for developers of power electronics, embedded systems, signal processing or automotive electronics. Applications can also be found in the scientific environment of physics laboratories or high-performance experiments.
PicoScope 6000E Series - Product Overview.
Delivery time upon request
Delivery time upon request
Delivery time upon request
Delivery time upon request
Delivery time upon request
Delivery time upon request
Delivery time upon request
Delivery time upon request
Delivery time upon request
What is FlexRes?
The Pico FlexRes oscilloscopes with flexible resolution allow you to reconfigure the oscilloscope hardware to optimize either the sampling rate or the resolution.
Configure your hardware in:
- A fast (5 GS/s) 8-bit oscilloscope for capturing digital signals
- A general purpose 10-bit oscilloscope
- A high-resolution 12-bit oscilloscope for audio work and other analog applications
Powerful and portable.
The PicoScope 6000E oscilloscopes are compact and portable while offering the high performance specifications required by technicians in the lab or on the road.
These scopes offer 4 or 8 analog channels and optional 8 or 16 digital channels with the plug-in 8-channel TA369 MSO modules. The flexible, high-resolution display options allow you to view and analyze any signal in detail.
With the support of PicoScope 6 software, these devices offer an ideal, cost-effective package for a wide range of applications including construction, research, testing, education, service and repair. PicoScope 6 is included in the price of your oscilloscope, can be downloaded for free, updated with free updates and installed on any number of PCs, including for offline viewing/analysis of data without the oscilloscope.

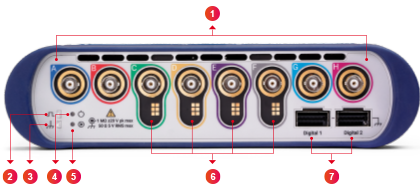

Front panel
- Input channels A (1) to H (8)
- Probe compensation
- Ground connection for compensation
- Operation LED
- Status/trigger LED
- Connection for active probe, channels C (3) to F (6)
- Digital 1 and Digital 2 MSO module interfaces - compatible with the TA369 MSO module

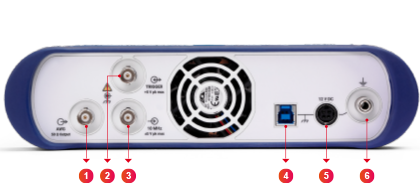

Rear panel
- 50 MHz arbitrary waveform generator (AWG) with 14 bits
- AUX-TRIGGER I/O for triggering the oscilloscope from an external source at the logic level to integrate the oscilloscope into a wider system
- 10 MHz reference clock input - the oscilloscope automatically switches to the external reference when a clock signal is detected
- USB 3.0 port
- 12 V DC input - Use only the power supply provided with the oscilloscope
- Ground - compatible with bare wire or 4 mm (banana) plug
PicoScope 6000E - Optional MSO module
The MSO capability of the PicoScope 6000E consists of a detachable active MSO module, powered from the oscilloscope, with eight permanently attached flying leads on MSO probes, which in turn are connected to the circuit under test. The MSO module is connected via a 0.5 m digital interface cable to one of the two digital interface connectors on the front of the oscilloscope. All models of the PicoScope 6000E support the MSO function. The MSO probes and accessories allow connection to pin headers with mixed signal and ground connections in any combination.
Functions:
- 8 digital inputs per module
- 500 MHz bandwidth, 1 GB/s
- 5 GS/s sampling via 16 digital channels
- 1 ns minimum pulse width
- Minimum load on the device under test
- Ground terminals for easy connection to 2-row pin headers with 2.54 mm pitch
- Ground cable and mini test hook supplied
Active probes A3000
The probes in the Pico A3000 series are active oscilloscope probes with high impedance. They are designed to have the least influence on the signal under test and to maximize its transfer to the PicoScope 6000E series via the intelligent probe interface. Thanks to its ergonomic design, it fits comfortably in the hand and has an additional button for starting and stopping the recording. The intelligent interface powers the probe via the oscilloscope and automatically sets the scaling and input impedance of the oscilloscope for the probe. The active probes of the Pico A3000 series (PQ254 / PQ265) have an input resistance of 1 MΩ and a capacitance of 0.9 pF and offer a high input impedance up to the GHz range.
Features:
- Up to 1.3 GHz bandwidth
- Click-to-fit
- Very light, flexible cable
- Direct connection via the intelligent probe interface
- One-button control of detection start and stop
- Automatic probe recognition and unit scaling
- LED status display
Delivery time upon request
Delivery time upon request
