Gossen Metrawatt MetraHit 2+ | Multimeter, TRMS, 3 6/7, IP40 (M205A)

Name: MetraHit 2+ | Multimeter, TRMS, 3 6/7, IP40 (M205A)
Brand: Gossen Metrawatt
SKU: M205A
Price: 274.0 EUR
Availability: OutOfStock

Manufacturer number: M205A

Ready to ship in 5 to 10 business days

€274.00

plus VAT. €326.06 VAT plus shipping costs

You would like to request an offer? Please add items to the shopping cart and request an offer there.

Request educational price

Gossen Metrawatt M205A | 3 6/7 digit TRMS multimeter MetraHit 2+, protection class CAT III / 600 V and DAkkS calibration certificate.

Resolution: 6000 digits and analog bar graph
Backlit digital display (switchable)
RMS measurement of TRMS VAC and IAC
Automatic socket lock ABS (patented)
waveform independent TRMS measurement with a bandwidth of 1kHz
Basic accuracy 0.5% VDC
Resolution: 100 µV, 100 mΩ, 10 µA
Voltage measurement range DC: 100μ to 600 V
Voltage measurement range AC: 100μ to 600 V
Current measurement range DC: 10μ to 10 A (16 A 30sec)
Current measurement range AC: 10μ to 10 A (16 A 30sec)
Resistance measuring range: 100 mΩ to 40 MΩ
Temperature measuring range: -50 to +400 ° C with opt. Type K thermocouple
Frequency measurement: 0.1 Hz to 1 kHz
Continuity and diode test
Automatic (autorange) or manual measuring range selection
Min / max measurement value storage and DATA hold
Power-saving circuit: automatic switch-off after 10 minutes - can also be canceled
Signaling of overload and defective fuse
DAkkS (DKD) calibration certificate included
Measurement category: CAT III / 600 V
Dimensions: 84x195x35mm including rubber protective cover
Degree of protection IP40
Weight: 350g
3 year warranty

Independant Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Analogue segment display:	Ja
Article number:	M205A
Backlight:	Ja
Basic precision:	1%
Capacity measuring range:	Nein
Current measuring range AC/DC:	60mA - 10A / 60mA - 10A
Data memory / logger:	Nein / Nein
Dimensions (L x W x H) (mm):	195 x 84 x 35
Diode test / continuity test:	Ja / Ja
Display Hold / Auto-Hold:	Ja / Ja
Display resolution:	6000
Electrical safety:	CAT III, 600V
Frequency measuring range:	100Hz - 1000Hz
Interfaces:	Keine
Min. / Max. Recording:	Ja / Ja
Model:	Metrahit 2+
Number of positions:	3.85
Resistance measuring range:	600Ω - 40MΩ
Special features:	inklusive DakkS-Kalibrierschein
Temperature measurement ( PT100 / Type K / Type J):	-50°C - +400°C
True effective measurement TRMS:	Ja
Voltage measuring range AC/DC:	600mV - 600V / 600mV - 600V
Warranty (years):	3
Weight (kg):	0.35

Detaildescription

MetraHit 2+ | Multimeter, TRMS, 3 6/7, IP40 (M205A)

The universal autorange multimeter Metrahit2 + from Gossen Metrawatt for use in all areas of electrical engineering. The multimeter offers you all the measurement functions of a versatile multimeter: convincing technology with all voltage, resistance, current and temperature measurement ranges and many other measurement and automatic functions.

Thanks to the patented socket lock and the shock protection cover , the device is particularly recommended for training and service . Accidental switching to another measuring category with inserted measuring lines is not possible.

Lieferumfang

Multimeter Metrahit 2 +
Protective rubber cover
DAkkS (DKD) calibration certificate
2 x 1.5V batteries
Test lead set KS17-2
quick start Guide

Accessoires (21 products )

Gossen Metrawatt GTZ3511000R0001

Z3511 current probe, 4 mm, 500 A 50 Hz, I-Out

Ready to ship in 5 to 10 business days

€298.00

Chauvin Arnoux P01295459Z

Test lead set crocodile clips, measuring tips

Ready to ship in 5 to 10 business days

€64.00

Keysight U1181A

Temperature sensor, penetration -50 .. + 1100 ° C, K-type

Delivery time upon request

€215.00

Keysight U1183A

Temperature sensor, air -50 .. + 800 ° C, K-type

Delivery time upon request

€208.00

Gossen Metrawatt Z113A

HC20 hard case 275 x 229 x 83 mm

Ready to ship in 5 to 10 business days

€74.00

Gossen Metrawatt Z219A

WZ12A current probe, 4 mm, 180 A 48 Hz - 400 Hz, I-Out

Ready to ship in 5 to 10 business days

€169.00

Gossen Metrawatt Z219D

WZ12D current probe, 4 mm, 150 A 48 Hz - 500 Hz, I-Out

Ready to ship in 5 to 10 business days

€246.00

Gossen Metrawatt Z109C

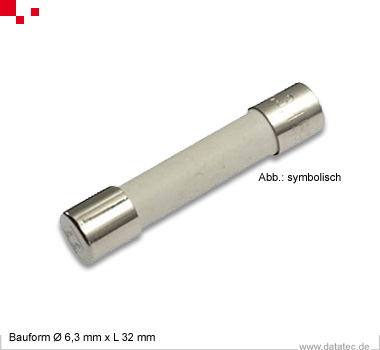

Fuses, FF 1.6 A / 1000 V, 6.3 x 32 mm, 10 pieces
