Keysight N6715C | Modular 4-channel power supply & DC power analyzer, 600 W, mainframe

Manufacturer number: N6715C

Keysight N6715C
Keysight N6715C
Keysight N6715C
Keysight N6715C
Keysight N6715C
Keysight N6715C
Keysight N6715C
Keysight N6715C
Keysight N6715C
Keysight N6715C
Keysight N6715C
Keysight N6715C
Keysight N6715C
Keysight N6715C
Keysight N6715C
Keysight N6715C
Keysight N6715C
Keysight N6715C
Keysight N6715C
Keysight N6715C
Keysight N6715C
Keysight N6715C
Keysight N6715C
Keysight N6715C
Keysight N6715C
Keysight N6715C

Delivery time upon request

€9,483.00

plus VAT. €11,284.77 VAT plus shipping costs

You would like to request an offer? Please add items to the shopping cart and request an offer there.
Highlights Technical Data Documents & Downloads Description Scope Related Articles

Keysight N6715C | 4-channel power supply and power analyzer, modular expansion, max. 600 watts. Build-to-order system. Completely configured and tested with the ordered modules.

  • modular structure, max. 4 DC power modules possible
  • maximum output power 600 W common for all outputs
  • Modules up to max. 150 V / 50 A / 500 W available
  • 4 outputs with fine sensing (sense) for supplying the device under test
  • Parallel / serial connection of the outputs possible
  • Oscilloscope function for every output
  • Multimeter function (current, voltage, power) for each output
  • Arbitrary signal generator programmable for each output with 512 support points (depending on the module)
  • Programming of freely definable sequences possible
  • Data logger function, data storage internally or on USB stick with max. 50,000 measurements per second
  • Timestamp for data logger function
  • maximum data size: 1 GB internal memory, max. 2GB external storage
  • Device settings memory
  • Emergency switch
  • Protection functions can be set for all outputs (overvoltage, overcurrent and overtemperature protection)
  • Relay on / off switch for outputs (optional for the individual DC power modules)
  • Built-in web server for remote control
  • large TFT color LCD display
  • Dimensions: W425.6 x D 272.6 x H177 mm
  • Weight with 4 DC power modules: 17.3 kg
  • Interfaces: USB 2.0, GPIB, LAN interface - LXI Class C compatible
  • Warranty: 3 years

Independant Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Documents & Downloads

Catalog
pdf | 3.44 MB
Brochure
pdf | 0.57 MB

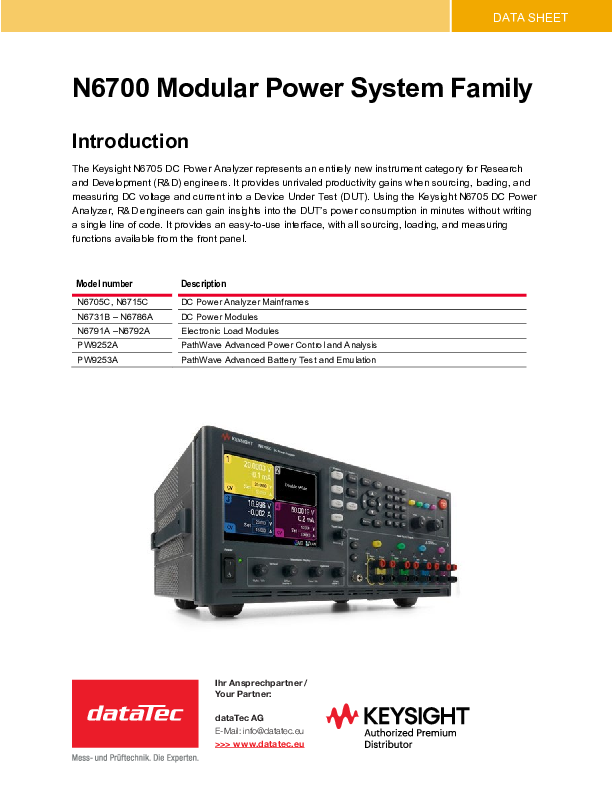

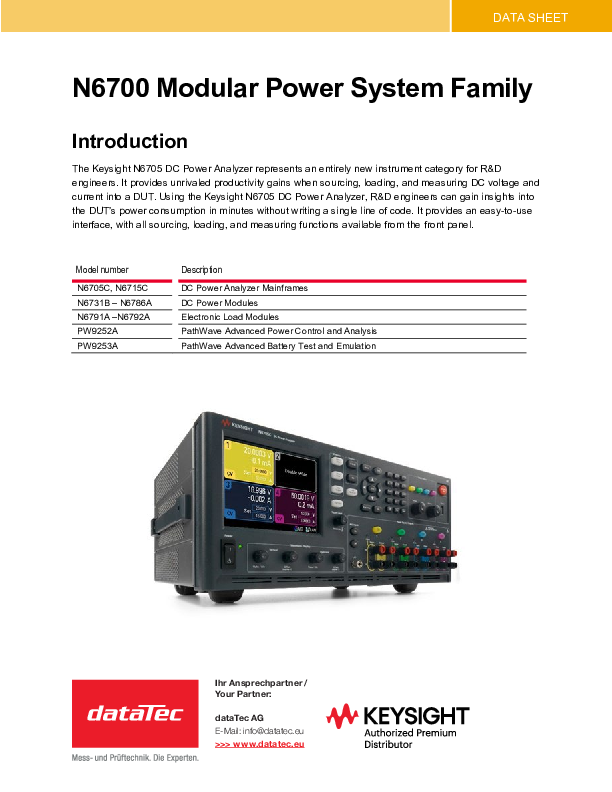

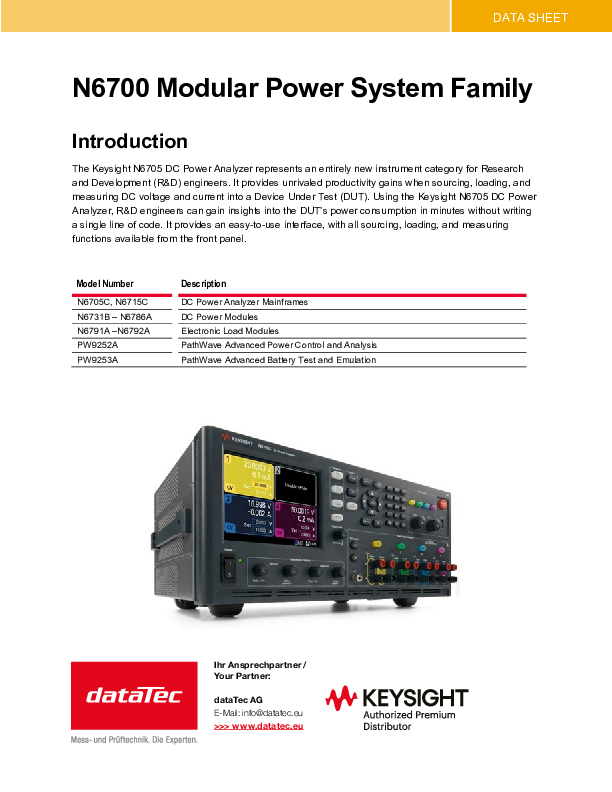

Datasheet
pdf | 2.34 MB
Userguide
pdf | 4.53 MB
Configuration guide
pdf | 1.46 MB

Detaildescription

N6715C | Modular 4-channel power supply & DC power analyzer, 600 W, mainframe

The basic device N6715C Black Edition, designed for development, service and production, accommodates a total of 4 power supply modules of the N6700 family with a total output power of 600 W. The output voltages of these 4 modules can be set independently of each other via the front panel and without programming or PC.

Digital multimeter functions for voltages and currents, arbitrary function of the output variables, oscilloscope and data logger functionality make the system a universal source with integrated measuring functions , which helps you to test your DUT (device under test) quickly and accurately.

Typical applications for the N6715C (like N6705C):

  • Power consumption when switching on / off with a DUT
  • Very important nowadays: Checking software that a mobile device is not being switched on and off continuously and unnoticed by it. This increases the operating time of a mobile device u. U. significant
  • Measurement of the time-dependent voltage and current parameters of your DUT
  • Assessment of the switch-on and switch-off behavior of a DC voltage supply
  • Generation of transients and malfunctions of a DC voltage source
  • Data acquisition every second or day to measure power consumption or detect anomalies
  • Storage of the data either internally or externally via USB
  • Save and name the test routines for easy repeatability of measurement processes

Lieferumfang

  • Power analyzer N6715C (without DC power modules)
  • Build-to-order system. Completely configured and tested with the optional modules
  • Power cord
  • Documentation (user manual) on CD
  • Assembly tool for DC power modules
