Keysight EL4913A | Regenerative DC load, 80 V, 40 A, 2 kW, 200/520 VAC, LAN, USB, CAN IO

Manufacturer number: EL4913A

EL4913A
EL4913A
EL4913A
EL4913A
EL4913A
EL4913A
EL4913A
EL4913A
Delivery time upon request

€5,145.00

plus VAT. €6,122.55 VAT plus shipping costs

or choose one of the following options:
Request a quote Product is already in cart
Product downloads Product inquiries
Highlights Technical Data Documents / Downloads Description Related Articles

Keysight EL4913A | Regenerative DC load, 80 V, 40 A, 2 kW, 200/520 VAC, LAN, USB, CAN IO.

Product features:

Note: EL4913A belongs to the 2 kW EL491xA family.

  • Device category: Regenerative DC electronic load (two-quadrant operation: source & regenerative load).
  • Nominal power: 2 kW (EL491xA family).
  • Voltage options (depending on model): 80 V / 500 V / 800 V.
  • Current range at 2 kW: 8 A - 40 A (depending on voltage option).
  • Regenerative feedback of load energy into the power grid to reduce energy costs.
  • Power density of the series: up to 6 kW in 1U, 12 kW in 2U (EL4900).
  • Parallel connection: stackable up to 96 kW (16 units).
  • Display & operation: 3-inch LCD; front USB host.
  • Integrated arbitrary signal generator (arbitrary waveform generation).
  • Control/interfaces: GPIB, USB, LAN, CAN, analog, RS232 as well as WebGUI.
  • Software support: PathWave BenchVue with power analysis and battery emulator/profiler.
  • Input: 3-phase supply.
  • Optional accessories for EL4900/RP5900: GPIB board, analog/RS232 board, parallel kit (fiber optic & transceiver), rackmount kits (1U/2U).

Technical Data

Documents & Downloads

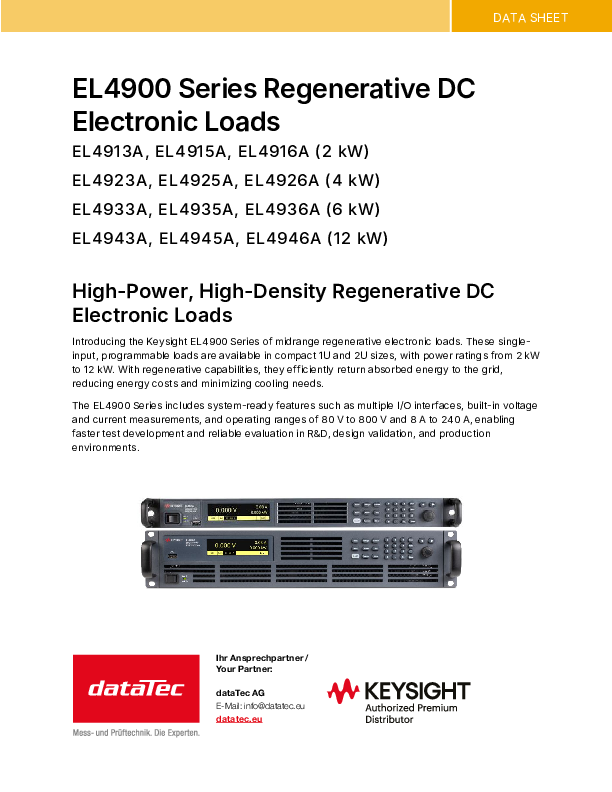

Datasheet
pdf | 1.38 MB

Description

EL4913A | Regenerative DC load, 80 V, 40 A, 2 kW, 200/520 VAC, LAN, USB, CAN IO

The EL4900 series is a family of regenerative DC electronic loads specifically designed for precise and efficient power testing in ATE systems. It covers power ranges from 2 kW to 12 kW, supports voltages up to 800 V and currents up to 240 A and is characterized by a compact design (up to 6 kW in 1U, 12 kW in 2U).

All models in the series operate regeneratively and feed the absorbed energy back into the power grid, which reduces energy losses and lowers operating costs. The devices are equipped with a 3-inch LCD, integrated arbitrary generator, USB host and a wide range of interfaces (GPIB, USB, LAN, CAN, analog, RS232, WebGUI). Up to 96 kW can be combined via parallel operation. On the software side, the series is supported by Keysight PathWave BenchVue with power analysis and battery emulator.

Applications

The EL4900 series is ideal for applications such as power supply and converter testing, battery characterization and emulation, aging tests, energy conversion analysis and research and development in the automotive and industrial environment.
