Keysight E36154ABV | Better Value Bundle - E36154A Power Supply, Scope View + AWG Option, PathWave Software

Manufacturer number: E36154ABV

E36154ABV
E36154ABV
E36154ABV
Bundle
Delivery time upon request

On Request

or choose one of the following options:
Request a quote Product is already in cart
Product downloads Product inquiries Request education-price
Highlights Technical Data Documents / Downloads Description Related Articles

Keysight E36154ABV | Better Value Bundle - Power Supply E36154A including Scope View + AWG Option E36150ADVU and PathWave Software BV9200B.

Technical Data

Documents & Downloads

Datasheet
E36154A
pdf | 1.38 MB
Userguide
E36154A
pdf | 3.58 MB

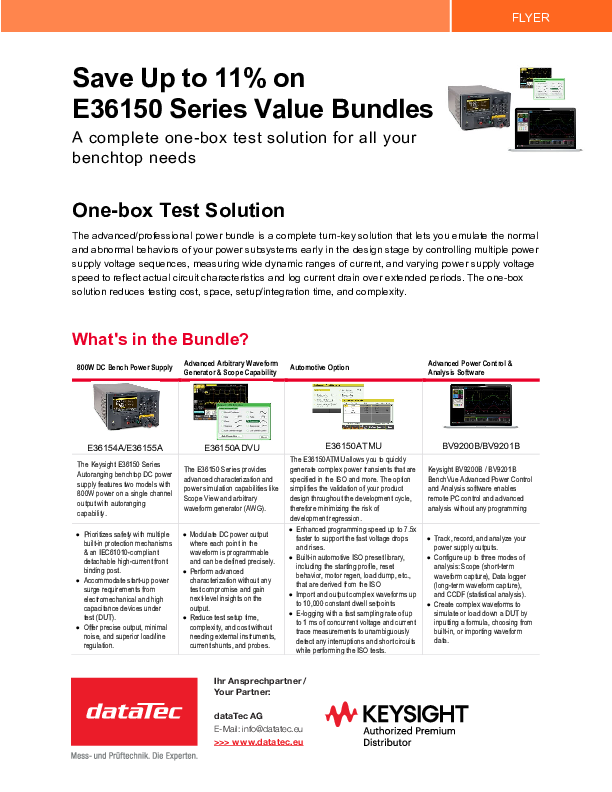

Configuration guide
E36154ABV
pdf | 0.27 MB

Description

E36154ABV | Better Value Bundle - E36154A Power Supply, Scope View + AWG Option, PathWave Software

Save up to 10% compared to the price of the individual components:

Put together your bundle individually for your requirements.

The Better Value Bundles each consist of a power supply unit, the E36150ADVU option and a BenchVue license.

Call us on +49 (0)7121 51 50 50 or send us a non-binding, free quote. We are happy to help.

Don't need a BenchVue license? Then we recommend the Good Value Bundle E36154AGV.

With this Keysight Better Value Bundle, you not only save money compared to the list price of the individual components, you also get the most out of your Keysight power supply. The power pack and the included option and software are optimally matched to each other.

The Keysight Better Value Bundle E36154ABV consists of a Keysight E36154A DC power supply, the Scope View and Arbitrary Waveform Generator (AWG) option E36150ADVU, and the advanced Keysight BV9200B PathWave BenchVue Power Control Analysis Software.

The E36154A 1-channel power supply has auto-range functions, 30V, 80A, 800W, as well as LAN and USB interfaces.

Using the included AWG option, create and simulate complex waveforms with up to 512 setpoints with configurable dwell time. Supported arbitrary waveforms include Sine, Step, Ramp, Staircase, Pulse, Trapezoid, and Exponential.

Scope View supports a sampling rate of up to 10us/100kHz and 256K samples. These features enable precise analysis of dynamic transient behavior, including current stress pulses, load spikes, dropouts, rise times, and other DC transients and disturbances in your device under test.

PathWave BenchVue software lets you connect up to four devices to your PC for advanced control, analysis, and automation.
