GW Instek GPP-3060-GPIB | Programmable 3-channel DC power supply with load function, 2x30V / 6A, 1x5V / 5A, 385W, RS-232, USB, LAN, Ext I / O, GPIB

Manufacturer number: GPP-3060-GPIB

GPP-3060-GPIB
GPP-3060-GPIB
GPP-3060-GPIB
GPP-3060-GPIB
GPP-3060-GPIB
GPP-3060-GPIB
Delivery time upon request

€958.80

% €1,128.00 (15% saved)

plus VAT. €1,140.97 VAT plus shipping costs

or choose one of the following options:
Request a quote Product is already in cart
Product downloads Product inquiries Request education-price
Highlights Technical Data Documents / Downloads Description Scope Related Articles

GW Instek GPP-3060-GPIB | Programmable 3-channel DC power supply with load function, 2x 30 V / 6 A, 1x 5 V / 5 A, 385 W, RS-232, USB, LAN, Ext I / O, GPIB.

  • Display: 4.3 ”TFT LCD display
  • Setting resolution: 1 mV / 0.1 mA
  • Read Back Resolution: 0.1 mV / 0.1 mA
  • Low ripple noise: ≦ 1 mVrms / ≦ 2 mArms
  • Transient Response Time: ≦ 100 μS
  • Load Function (CC, CV, CR mode)
  • Tracking of series and parallel functions without additional external wiring
  • Hardware protection against overvoltage / overcurrent / overtemperature
  • Delay / exit monitoring / exit recorder function
  • Supports display of set value, measured value and output waveform
  • Sequential output function and 8 integrated waveform templates
  • The output recorder records the output voltage and current parameters with a minimum recording interval of 1 second.
  • Provides 10 memory sets for each sequence / delay / recorder / panel condition
  • USB (Type A) output
  • Intelligent, temperature-controlled fan with effective noise reduction

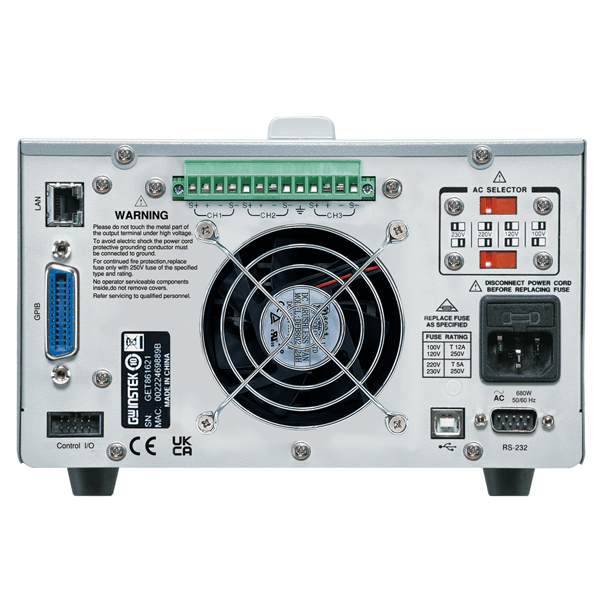

  • Standard interfaces: RS-232, USB, LAN, Ext I / O
  • Including optional interface: GPIB (factory option)
  • Dimensions (H / W / D): 145 mm x 213 mm x 362 mm
  • Weight: ~ 10 kg

Technical Data

Documents & Downloads

Datasheet
pdf | 2.35 MB
Userguide
pdf | 2.47 MB

Description

GPP-3060-GPIB | Programmable 3-channel DC power supply with load function, 2x30V / 6A, 1x5V / 5A, 385W, RS-232, USB, LAN, Ext I / O, GPIB

The programmable 3-channel DC power supply units GPP-3060 and GPP-6030 are expansion models of the GW Instek GPP-X323 series with a maximum output power of 385 W.

The GPP-3060 presented here offers 0 ~ 30 V / 0 ~ 6 A on channel 1 / channel 2. The GPP-6030 offers 0 ~ 60 V / 0 ~ 3 A.

The tracking function switches automatically on channel 1 / channel 2 between series or parallel output. Additional wiring is not necessary. Furthermore, channels 1 and 2 can be used as required for power supply or as a load in order to carry out simple battery charge / discharge or load characteristic tests with a single power supply unit.

On both models, channel 3 offers adjustable 1.8 V, 2.5 V, 3.3 V, 5.0 V / 5 A. In addition, channel 3 has a 3 A USB output (Type A) that can be used for USB charging tests.

The two power supply units GPP-3060 and GPP-6030 are characterized by the same high resolution (1 mV / 0.1 mA) and readback resolution (0.1 mV / 0.1 mA) of the GPP series with a low noise behavior ≦ 1 mVrms / ≦ 2 mArms and ≦ 100 μs recovery for output transients. Each channel has an independent on / off switch.

Several display modes, including single-channel or multi-channel set value, measured value and waveform display, which work together with the integrated output monitoring function, allow you to set the monitoring conditions according to your needs, e.g. to generate an alarm or to stop the output during the measurement process.

You can use the output recorder function to record the voltage / current of the output process in the internal memory and save the result as a REC or CSV file and then save it on a USB stick.

With the help of the sequence output function, you can edit the output waves individually and thus set the sequential constant voltage (CV) or constant current (CC) load waveforms.

Note: The GPP-3060 power supply unit is also available as a variant without GPIB (item no. GPP-3060).

Lieferumfang

  • Power supply
  • Instruction manual (CD)
  • Quick start guide
  • Power cord
  • GTL-204A x 3, GTL-201A x 1 test leads
