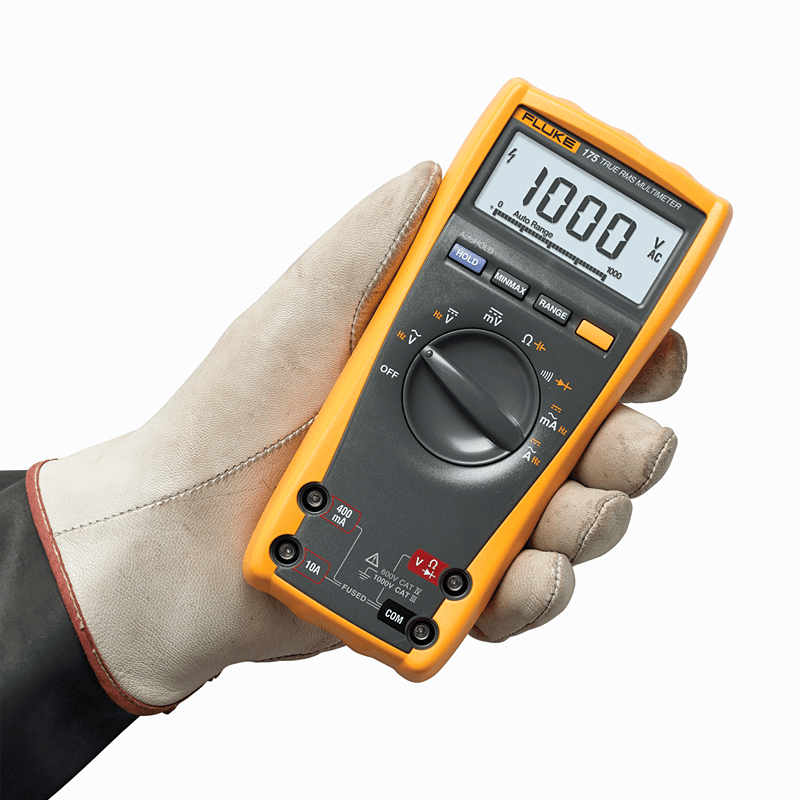

Fluke 175 | Digital real effective handheld multimeter.
- True rms measurement of voltage and current
- 6,000 digits resolution
- Manual and automatic range selection
- Display Hold and Auto Hold
- Frequency and capacitance measurement
- Resistance measurement, continuity test and diode test
- Min / max / mean value recording
- Smoothing mode for more stable measured values with varying input signals
- Easy battery change without opening the housing
- Calibration with the housing closed via the front panel
- Ergonomic housing with integrated holster
- EN 61010-1 CAT III 1000 V / CAT IV 600 V
- Weight 0.42 kg
- Dimensions: W 89 mm x H 190 mm x D 45 mm
- Warranty: lifelong
Technical Data
Analogue segment display: | Ja |
---|---|
Article number: | 1592901 |
Backlight: | Nein |
Basic precision: | 3% |
Capacity measuring range: | 1000nF - 9999µF |
Current measuring range AC/DC: | 60mA - 10A / 60mA - 10A |
Data memory / logger: | Nein / Nein |
Dimensions (L x W x H) (mm): | 185 x 90 x 43 |
Diode test / continuity test: | Ja / Ja |
Display Hold / Auto-Hold: | Ja / Ja |
Display resolution: | 6000 |
Electrical safety: | CAT III 1000V, CAT IV 600V |
Frequency measuring range: | 99,99Hz - 99,99kHz |
Interfaces: | Keine |
Min. / Max. Recording: | Ja / Nein |
Model: | FLUKE-175 EGFID |
Number of positions: | 3.5 |
Resistance measuring range: | 600Ω - 50MΩ |
Temperature measurement ( PT100 / Type K / Type J): | Nein |
True effective measurement TRMS: | Ja |
Voltage measuring range AC/DC: | 600mV - 1000V / 600mV - 1000V |
Warranty (years): | 30 |
Weight (kg): | 0.42 |
Documents & Downloads
Detaildescription
175 | Multimeter, hand 3 3/4 digits
With its high accuracy, impressive performance features, ease of use, safety and reliability, the Fluke 175 sets standards in the field of universal multimeters.

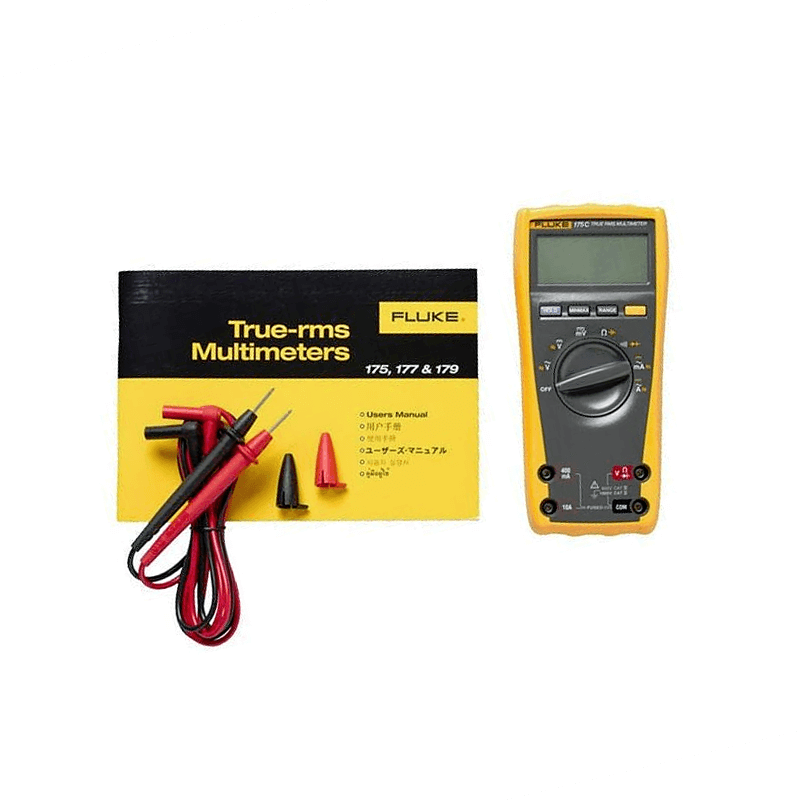

Lieferumfang
- Multimeter
- Test leads with 4 mm measuring tips
- 9 V battery
- User Guide
