Fluke115 | 4-digit TRMS digital multimeter.
- mV DC voltage measuring range: 600.0 mV, resolution: 0.1 mV
- V DC voltage, measuring range / resolution: 6,000 V / 0.001 V, 60.00 V / 0.01 V, 600.00 V / 0.1 V
- mV alternating current true effective measuring range: 600.0 mV resolution: 0.1 mV
- V alternating current true r.m.s. measuring range / resolution: 6,000 V / 0.001 V, 60.00 V / 0.01 V, 600.0 V / 0.1 V
- Continuity test range: 600 Ω
- Resistance measuring range / resolution: 600.0 Ω / 0.1 Ω, 6,000 kΩ / 0.001 kΩ, 60.00 kΩ / 0.01 kΩ, 600.0 kΩ / 0.1 kΩ, 6,000 MΩ / 0.001 MΩ, 40.00 MΩ / 0.01 MΩ
- Diode test range / resolution: 2.00 V / 0.001 V
- Capacity measuring range / resolution: 1000 nF / 1 nF, 10.00 μF / 0.01 μF, 100.0 μF / 0.1 μF, 9999 μF / 1 μF, 100 μF to 1000 μF
- LoZ capacitance range: 1 nF to 500 μF
- AC amps true effective (45 Hz to 500 Hz) range / resolution: 6,000 A / 0.001 A, 10.00 A / 0.01 A (20 A continuous overload max. 30 seconds)
- DC ampere range / resolution: 6,000 A / 0.001 A, 10.00 A / 0.01 A (20 A continuous overload max. 30 seconds)
- Hz (V or A input) Range / resolution: 99.99 Hz / 0.01 Hz, 999.99 Hz / 0.1 Hz, 9.999 kHz / 0.001 kHz, 50 kHz / 0.01 kHz
- Large white LED backlight for working in poorly lit areas
- Min / max / mean value for recording signal fluctuations
- All inputs are protected according to CE and EN 61010-1 CAT III 600 V. UL, CSA and TÜV approval as well as VDE.
- Weight 0.55 kg
- Dimensions: W 84 mm x H 167 mm x D 46 mm
- 3 year guarantee
Technical Data
Analogue segment display: | Ja |
---|---|
Article number: | 2583583 |
Backlight: | Ja |
Basic precision: | 3% |
Capacity measuring range: | 1000nF - 9999µF |
Current measuring range AC/DC: | 6A - 10A / 6A - 10A |
Data memory / logger: | Nein / Nein |
Dimensions (L x W x H) (mm): | 167 x 84 x 46 |
Diode test / continuity test: | Ja / Ja |
Display Hold / Auto-Hold: | Ja / Ja |
Display resolution: | 6000 |
Electrical safety: | CAT III 600V |
Frequency measuring range: | 99,99Hz - 50kHz |
Interfaces: | Keine |
Min. / Max. Recording: | Ja / Ja |
Model: | FLUKE-115 EUR |
Number of positions: | 4 |
Resistance measuring range: | 600Ω - 40MΩ |
Special features: | - |
Temperature measurement ( PT100 / Type K / Type J): | Nein |
True effective measurement TRMS: | Ja |
Voltage measuring range AC/DC: | 600mV - 600V / 600mV - 600V |
Warranty (years): | 3 |
Weight (kg): | 0.55 |
Documents & Downloads
Detaildescription
115 | Multimeter, handheld, TRMS 4 digits, CAT III / 600 V
Designed by electricians. Designed by Fluke. Compact true rms digital multimeter for field technicians. The Fluke 115 is the solution for a wide variety of electrical and electronic measurement tasks.
Lieferumfang
- Multimeter
- battery
- Test leads

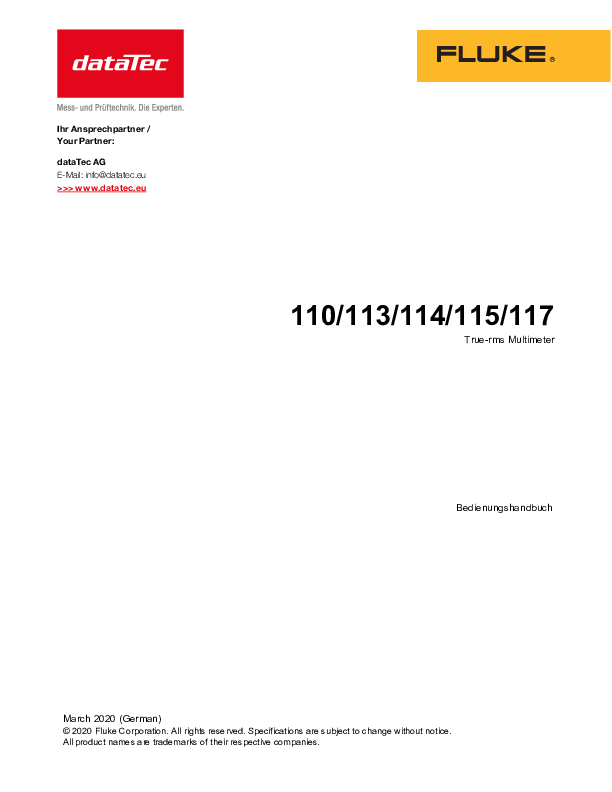

- Manual
