B&K Precision 1692 | DC Power Supply Unit, 3 - 15 V, 40 A

Manufacturer number: BK1692

1692
1692
1692
Delivery time upon request

€440.00

plus VAT. €523.60 VAT plus shipping costs

or choose one of the following options:
Request a quote Product is already in cart
Product downloads Product inquiries Request education-price
Highlights Technical Data Documents / Downloads Description

B&K Precision 1692 | DC switching power supply, 3 - 15 V, 40 A.

Technical Data

Documents & Downloads

Datasheet
BK1692
pdf | 0.45 MB

Description

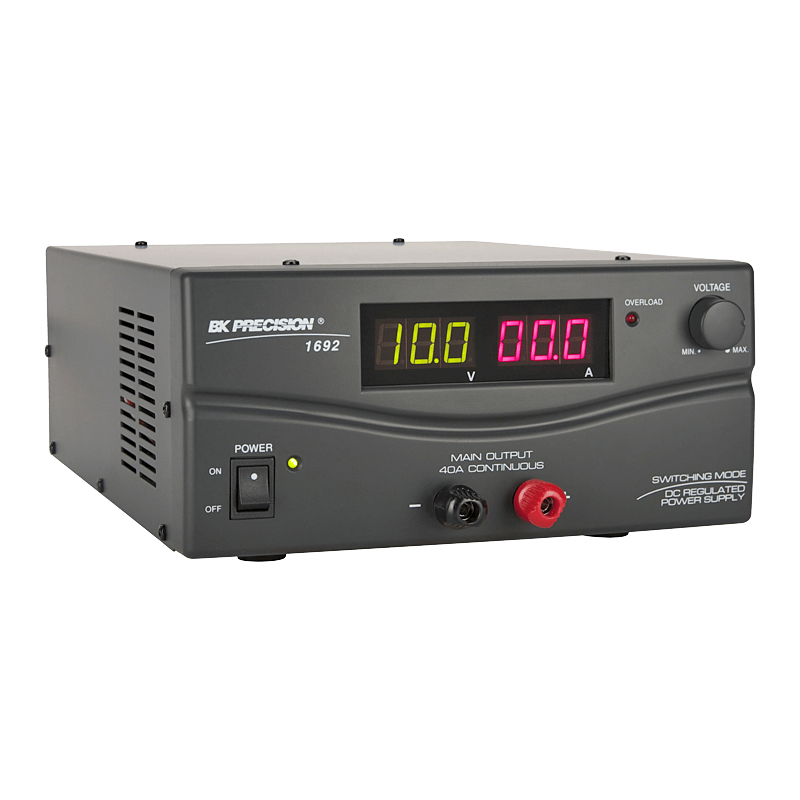

1692 | DC Power Supply Unit, 3 - 15 V, 40 A

The B&K Precision 1692 is a high performance switching power supply that offers a high output current in a compact and lightweight design. It is ideal for a wide range of applications, especially for powering DC-powered mobile devices in the laboratory. Thanks to the switching power supply technology, it offers high efficiency that can reach over 80% under optimal conditions. Advanced protection circuits reliably prevent any overloads that may occur.

The power supply unit offers a variable output voltage of 3 V to 15 V with a continuous current output of 40 A. It also has a fixed output voltage of 13.8 VDC, which can be selected via a slide switch. The device is equipped with a digital LED display, which provides a precise and easy-to-read display of the settings. Additional protective functions such as overtemperature protection, overvoltage protection and a current feedback circuit ensure maximum safety during operation.

Product features:

  • Output voltage: 3 - 15 V or fixed 13.8 VDC (switchable)
  • Output current: 40 A continuous
  • Ripple and noise: < 10 mVrms
  • Mains voltage regulation (120V ±10%): 80 mV
  • Load regulation (0 - 100% load): 230 mV
  • AC input: 120 VAC, 60 Hz
  • Display: Two-color LED digital display
  • Dimensions (H x W x D): 220 x 110 x 300 mm
  • Weight: 3.5 kg
