B&K Precision BCS6401 | Battery Simulator, Bidirectional DC Source/Load, 2 Channel, 90 W, BCS Series

Name: BCS6401 | Battery Simulator, Bidirectional DC Source/Load, 2 Channel, 90 W, BCS Series
Brand: B&K Precision
SKU: BCS6401
Price: 4100.0 EUR
Availability: InStock

Manufacturer number: BCS6401

Delivery time upon request

€4,100.00

plus VAT. €4,879.00 VAT plus shipping costs

or choose one of the following options:

Request a quote Product inquiries Request education-price

B&K Precision BCS6401 | Battery simulator, bidirectional DC source/load, 2 channel, 90 W, BCS series.

Technical Data

Additional functions:	Carrying out charge, discharge, cycle and simulation tests for batteries
Article number:	BCS6401
Autorange:	No
Bidirectional:	No
DC output reversible:	DC Source
Dimensions (L x W x H) (mm):	476.26 x 226 x 88.2

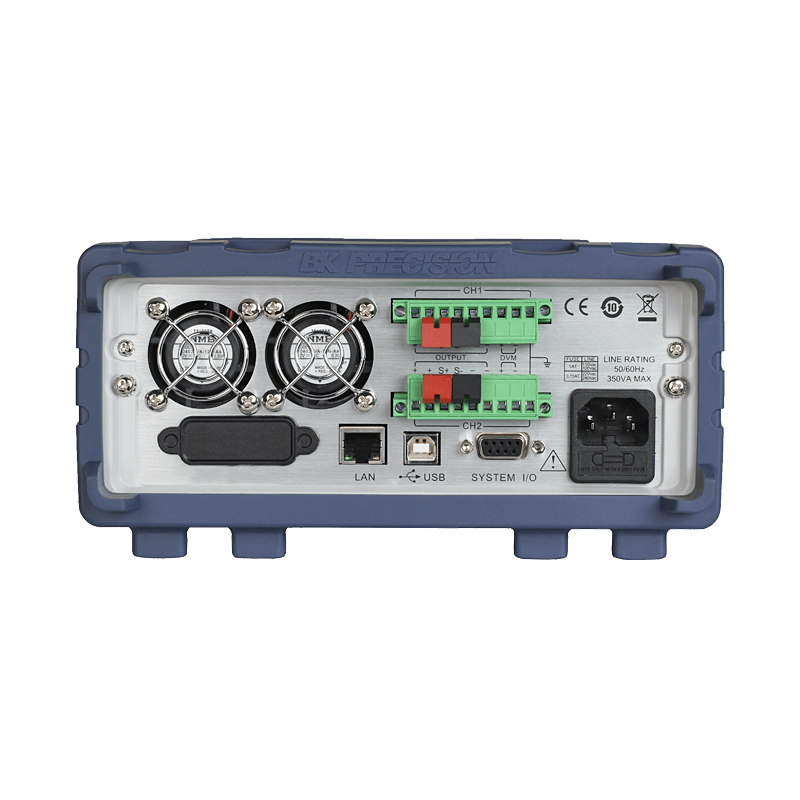

Interfaces:	USB, LAN
Model:	BCS6401
Number of outputs:	2
Output power (W):	90
Warranty (years):	3
Weight (kg):	13
max. Power (A):	5
max. voltage (V):	15

Description

BCS6401 | Battery Simulator, Bidirectional DC Source/Load, 2 Channel, 90 W, BCS Series

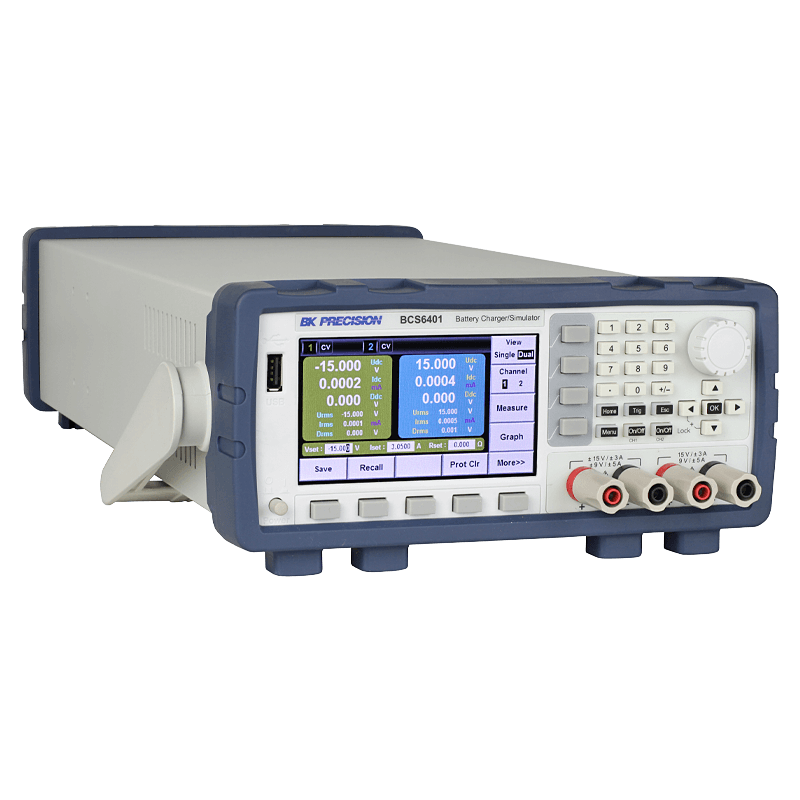

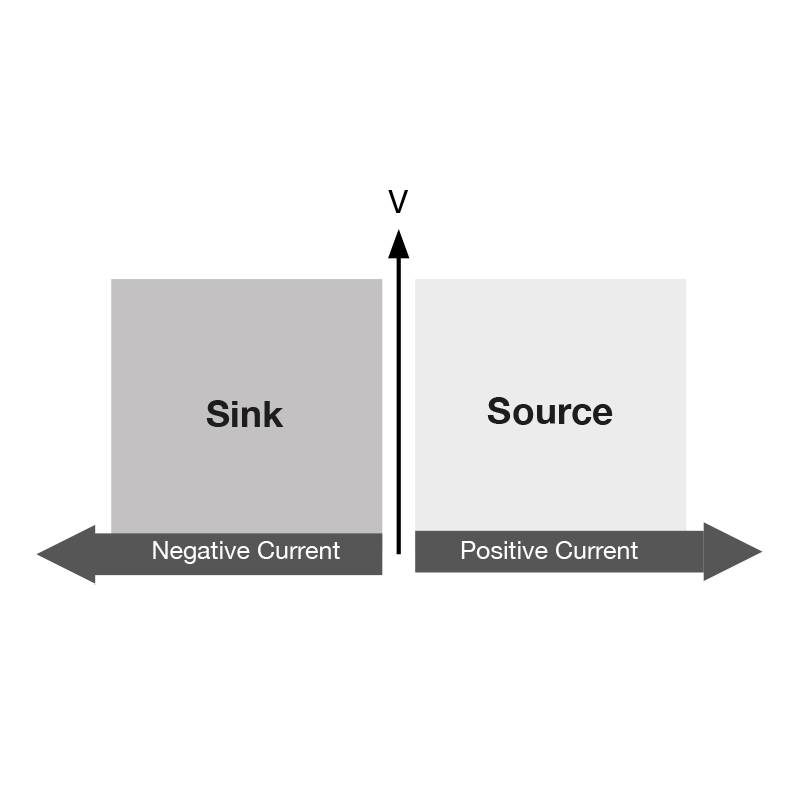

The B&K Precision BCS6401 is a powerful battery simulator, DC power supply and battery charger/discharger specifically designed for test applications with batteries and battery-powered devices. Thanks to its bidirectional capabilities, it can act as a current source or sink and enables comprehensive charging, discharging and simulation processes.

The Variant BCS6401 presented here offers two independent channels, enabling simultaneous charging and discharging processes. This offers more flexibility for parallel tests than the BCS6402. The Variant BCS6402 is designed for higher power (150 W), but only has a single channel.

Product features:

Channels: 2
Max. Voltage: ±30 V (CH1), ±15 V (CH2)
Max. Current: 3 A (high), 5 A (low)
Max. Power: 45 W per channel, max. 90 W combined
Variable output impedance: 0 Ω to 1 Ω
Measurement resolution: Current: up to 100 nA, voltage: 1 mV
Display: 4.3-inch color TFT
Communication: USB (USBTMC), LAN (SCPI compatible)
Protection mechanisms: overvoltage, overcurrent and overtemperature protection

Application areas:

Testing and development of smartphones, tablets and wearables
Testing and simulation of chargers and charging electronics

Evaluation of DC-DC converters

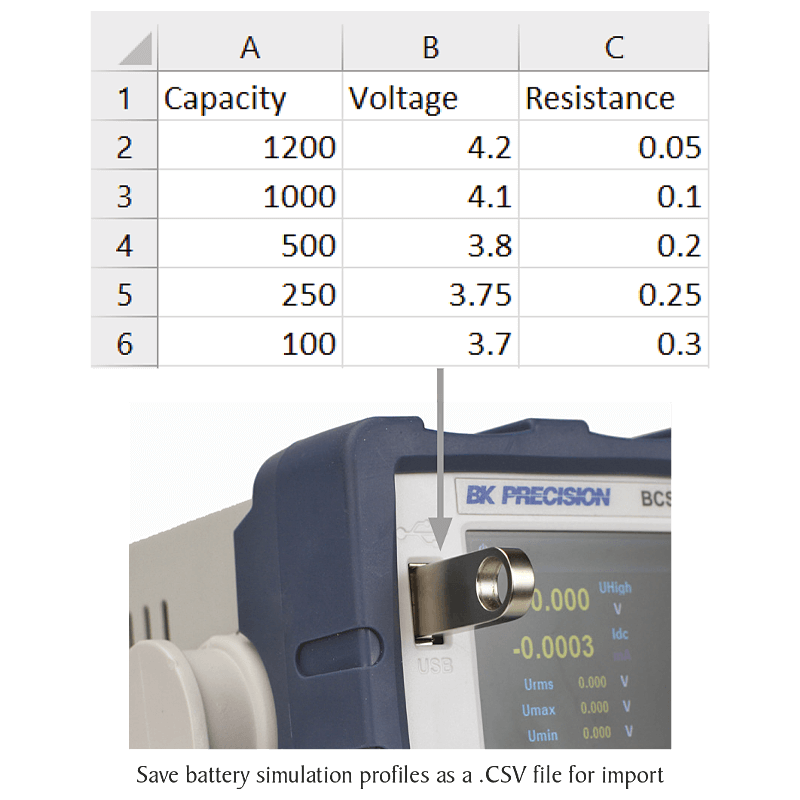

Simulation of different charging states and internal resistances for research purposes

Characterization of battery and energy storage solutions

Alternate products

Alternate products

Series

Series

B&K Precision

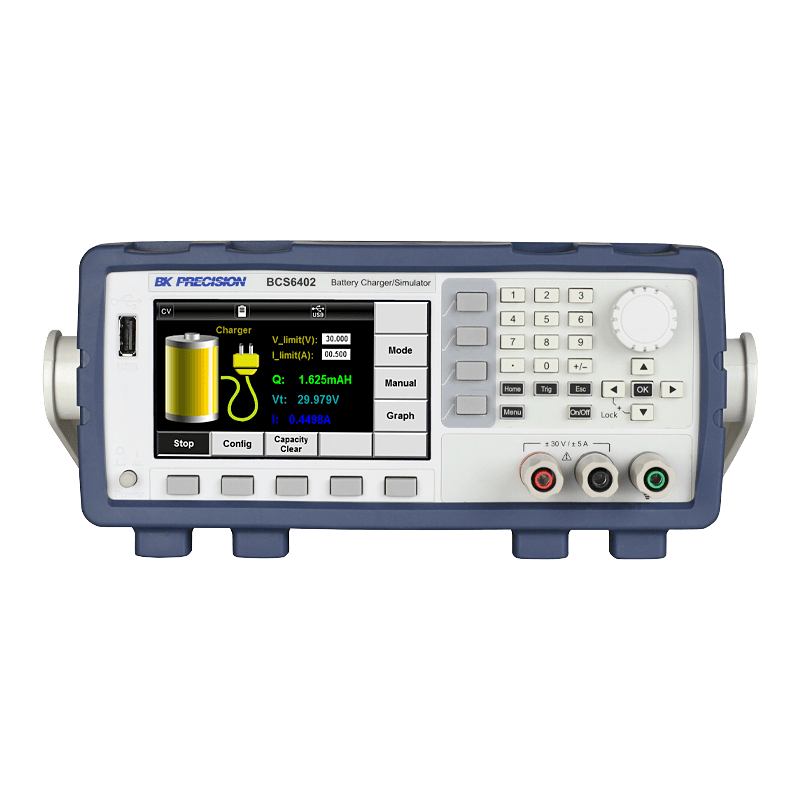

BCS6402
